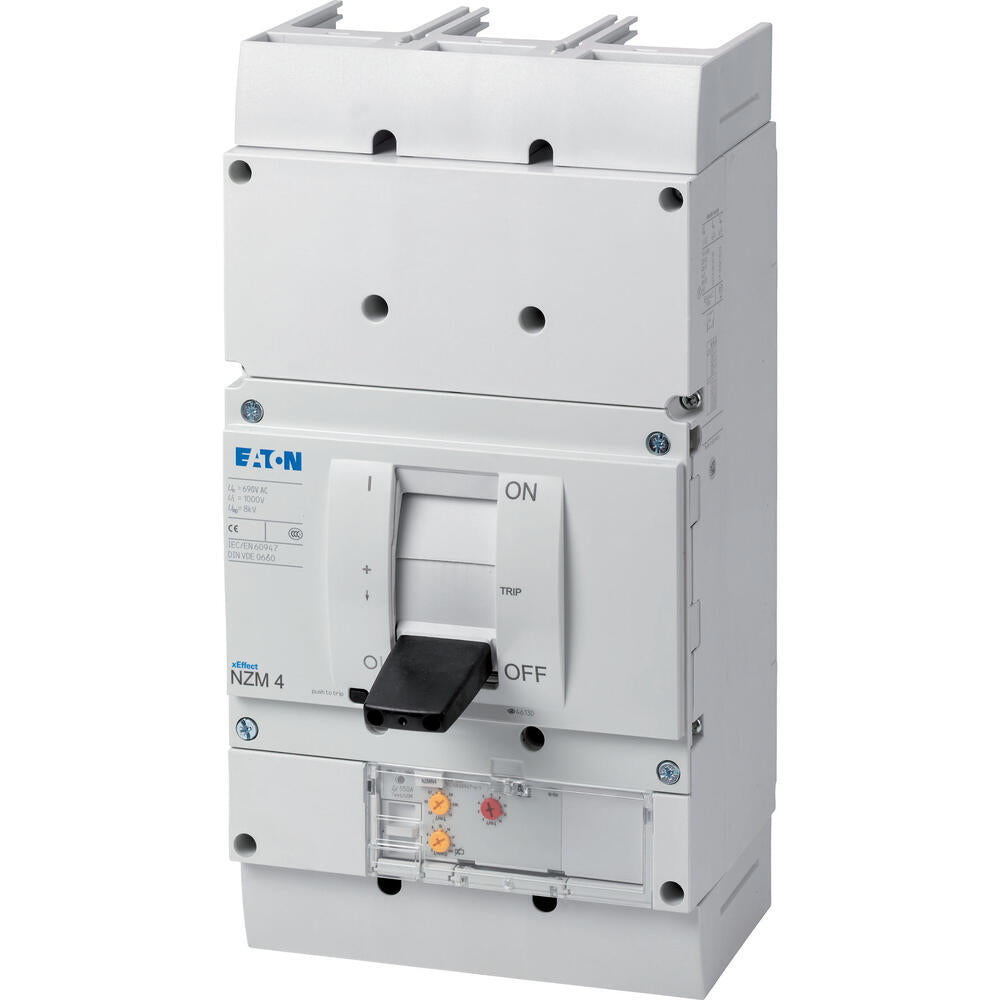

Eaton NZMN4-ME1400 Circuit Breaker 3P 1400A 50kA IEC - 265785
Notice: This product will be discontinued in the future
The Eaton Industries MCCB motor protection switch measures 210x401x207mm and has an overload adjustment range of 700-1400A. The device is constructed in a fixed in-built form with a nominal continuous current of Iu 1400A. The main circuit connection uses a screw connection technique and employs an electronic shut-off mechanism. As part of the NZM..-ME series, this circuit breaker suits all applications in four compact sizes and complies with IEC/EN 60947-4-1 & IEC/EN 60947-2 standards. The mounting is flexible due to modular function groups. The switch features an electronic release for motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and adjustable time delay to handle current peaks tr:2-20 at 6xIr as well as infinity.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB motor protection switch measures 210x401x207mm and has an overload adjustment range of 700-1400A. The device is constructed in a fixed in-built form with a nominal continuous current of Iu 1400A. The main circuit connection uses a screw connection technique and employs an electronic shut-off mechanism. As part of the NZM..-ME series, this circuit breaker suits all applications in four compact sizes and complies with IEC/EN 60947-4-1 & IEC/EN 60947-2 standards. The mounting is flexible due to modular function groups. The switch features an electronic release for motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and adjustable time delay to handle current peaks tr:2-20 at 6xIr as well as infinity.
