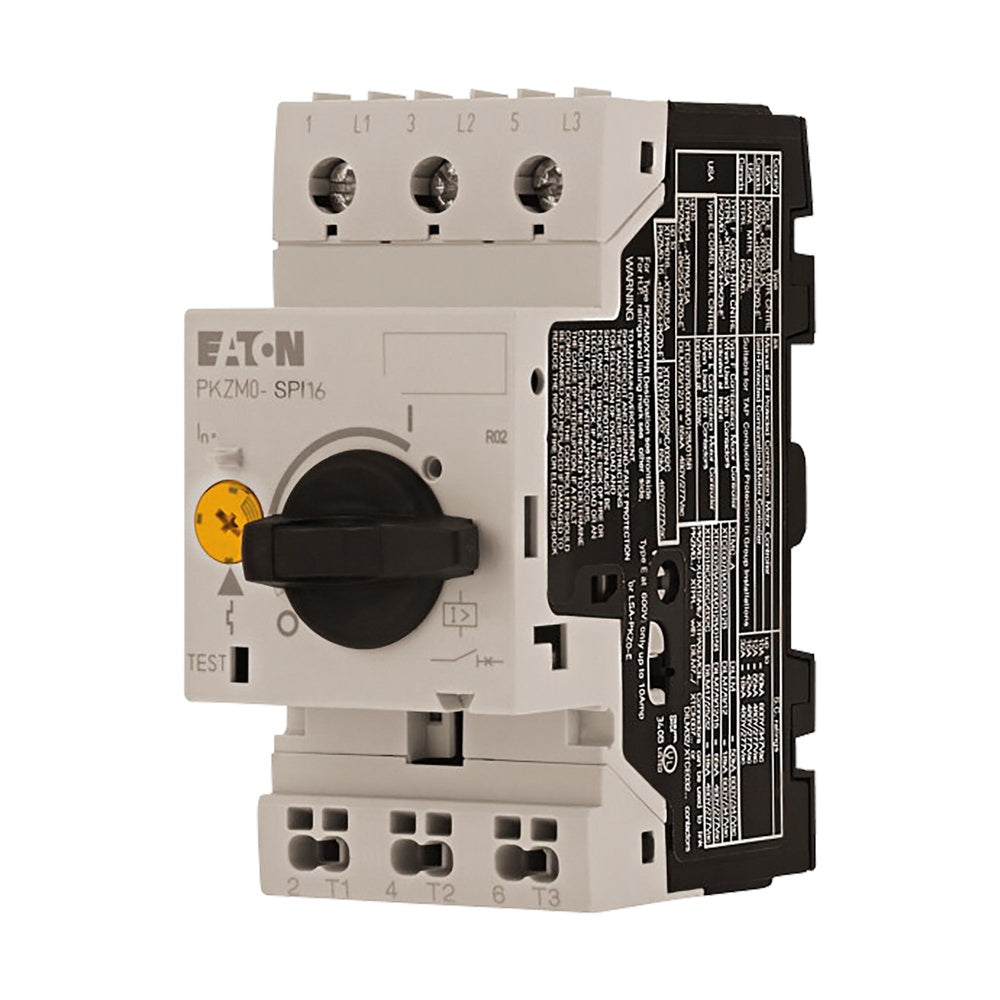

Eaton PKZM0 10A Motor Protection Circuit Breaker - 199186
Three-pole motor protection circuit breaker with thermomagnetic trip mechanism, rated for 690V AC operation. Features 6.3-10A overload protection range and 150kA breaking capacity at 400V AC. Provides comprehensive motor protection including phase failure sensitivity and thermal protection. Suitable for motors up to 4kW at 400V AC, with IP20 protection rating and push-in/screw terminal connections.
- Regular price
- £83.38
Description
Three-pole motor protection circuit breaker with thermomagnetic trip mechanism, rated for 690V AC operation. Features 6.3-10A overload protection range and 150kA breaking capacity at 400V AC. Provides comprehensive motor protection including phase failure sensitivity and thermal protection. Suitable for motors up to 4kW at 400V AC, with IP20 protection rating and push-in/screw terminal connections.
Pros:
- High breaking capacity of 150kA at 400V AC
- Dual connection options with push-in and screw terminals
- Phase failure protection for enhanced motor safety
- Wide operating temperature range -25°C to +55°C
