Eaton Power Disconnect Relay Z-LAR32-O 250 AC 15-32A 1V - 248258
Notice: This product will be discontinued in the future

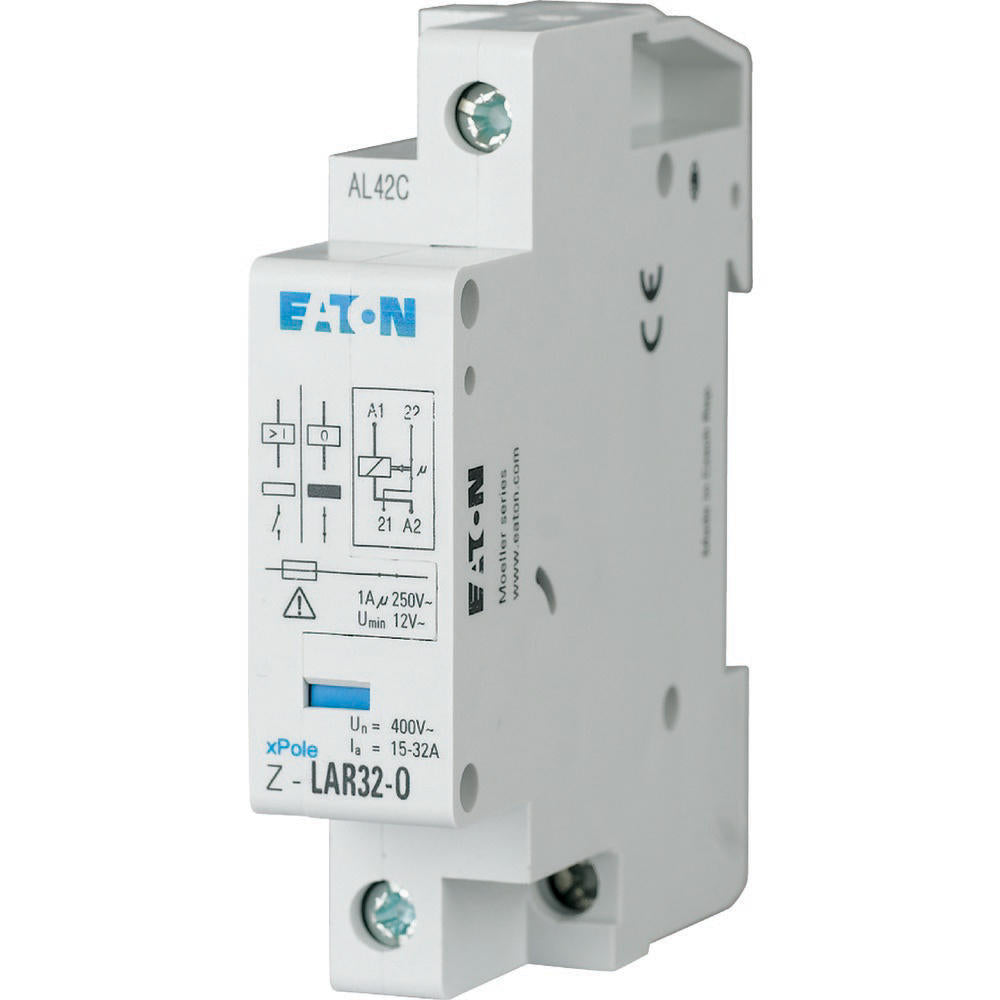

The Eaton Industries Xpole is a load shedding relay with a rated current range of 15-32A. It comes with an integrated auxiliary contact of 1 N/C. It operates at a rated voltage of 250V, has an insulation voltage of 440V and can withstand an impulse voltage of 4 kV. It has a standard front dimension of 45 mm and a mounting width of 1 SU (17.5mm). It can be conveniently mounted on a top-hat rail. The terminal cross-section of the main circuit is 2x10 mm², and that of the auxiliary circuit is 2x2.5 mm².
Notice: This product will be discontinued in the future
Description
The Eaton Industries Xpole is a load shedding relay with a rated current range of 15-32A. It comes with an integrated auxiliary contact of 1 N/C. It operates at a rated voltage of 250V, has an insulation voltage of 440V and can withstand an impulse voltage of 4 kV. It has a standard front dimension of 45 mm and a mounting width of 1 SU (17.5mm). It can be conveniently mounted on a top-hat rail. The terminal cross-section of the main circuit is 2x10 mm², and that of the auxiliary circuit is 2x2.5 mm².
