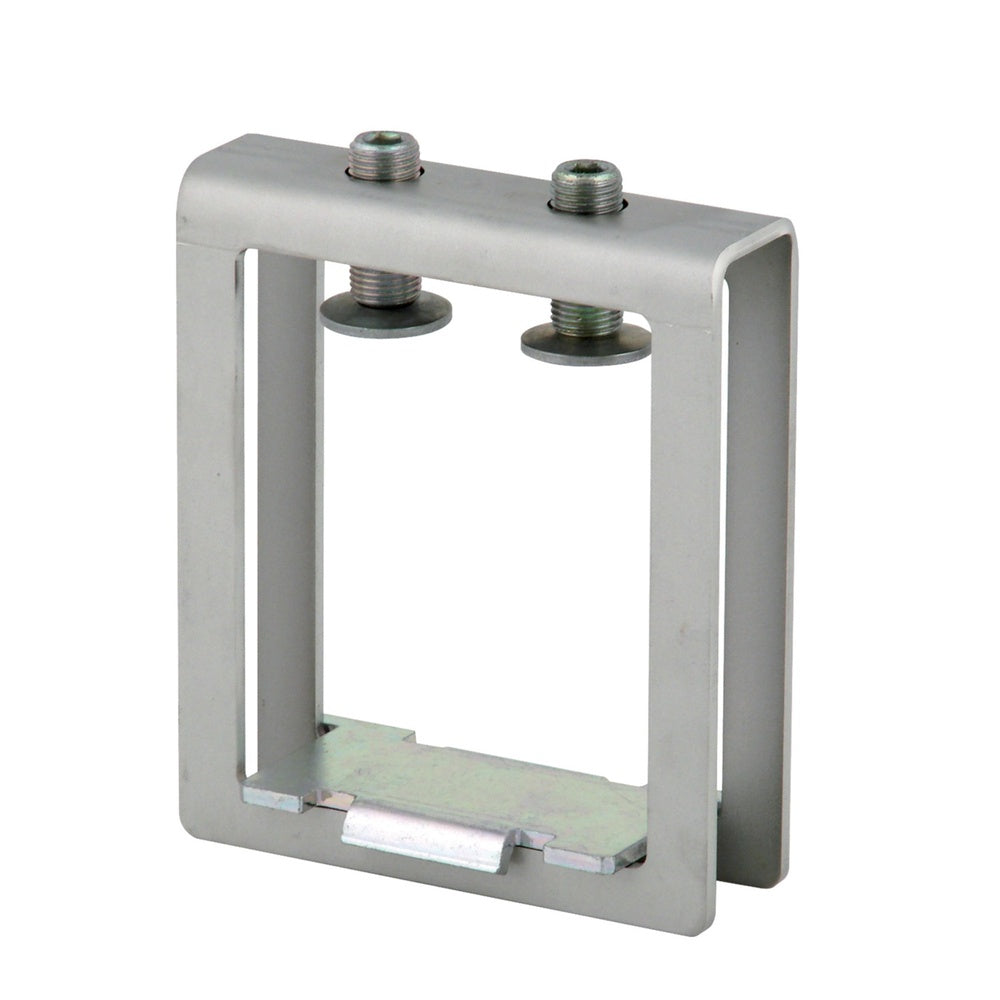

Eaton Profile Terminal AKP3600 101x45 mm - 138369 [3 Pieces]
![Eaton Profile Terminal AKP3600 101x45 mm - 138369 [3 Pieces]](http://tameson.co.uk/cdn/shop/files/e3k7f-00.b65e8b8a_0c46b12d-805d-4457-8ada-5af6514757c2.jpg?v=1721195519)
![Eaton Profile Terminal AKP3600 101x45 mm - 138369 [3 Pieces]](http://tameson.co.uk/cdn/shop/files/e3k7f-00.b65e8b8a_0c46b12d-805d-4457-8ada-5af6514757c2.jpg?height=232&v=1721195519&width=232)
The Eaton Industries terminal is a component meant for establishing a connection to busbars without the need for drilling. Ideally used when connecting in parallel, it requires a spacer to be placed between the laminated copper busbars. The terminal has an area of 3600mm² with dimensions 101x23-45 and a width of 132mm. It is suitable for double T profile, a 60mm system, and a 185mm system. The maximum nominal operating current it can handle is 3200A. The terminal is also suitable for band-guided connections and its maximum wire cross-section is 3600mm².
Contains 3 pieces
- Regular price
- £396.05
Description
The Eaton Industries terminal is a component meant for establishing a connection to busbars without the need for drilling. Ideally used when connecting in parallel, it requires a spacer to be placed between the laminated copper busbars. The terminal has an area of 3600mm² with dimensions 101x23-45 and a width of 132mm. It is suitable for double T profile, a 60mm system, and a 185mm system. The maximum nominal operating current it can handle is 3200A. The terminal is also suitable for band-guided connections and its maximum wire cross-section is 3600mm².
Contains 3 pieces
