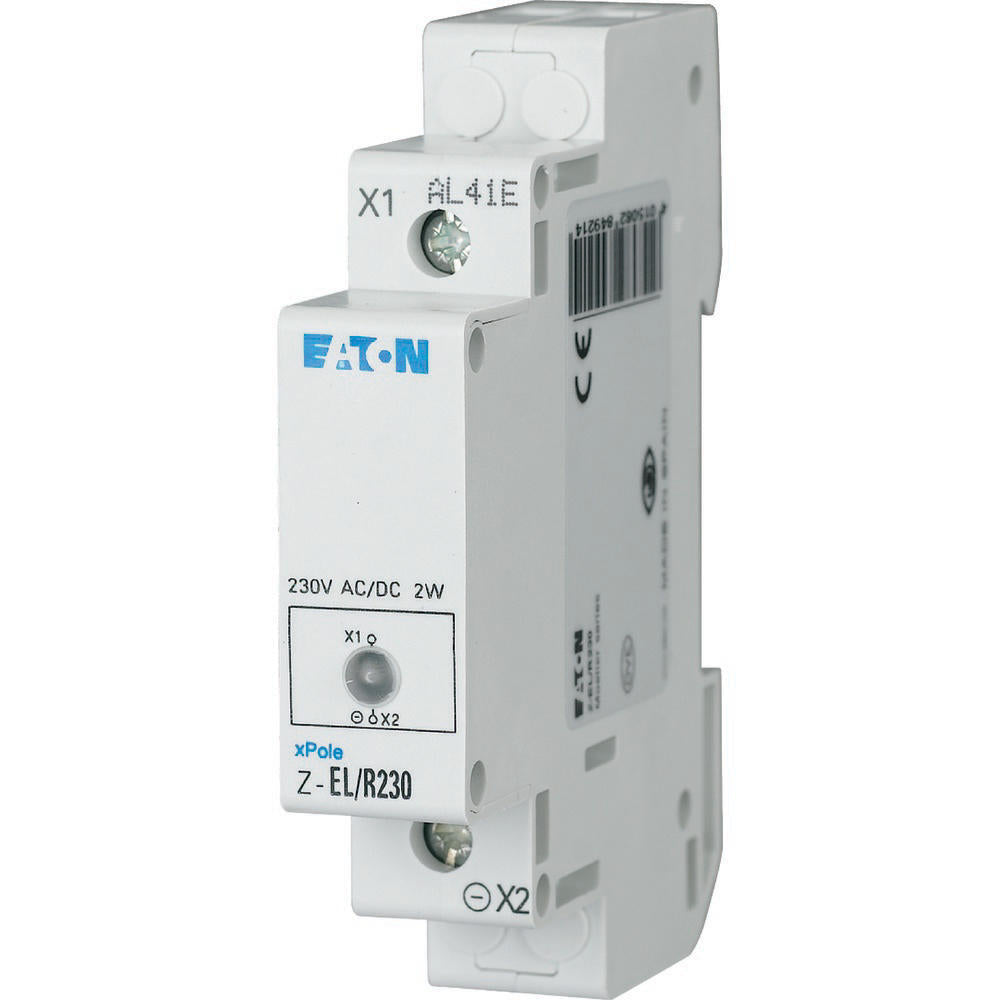

Eaton Single Red LED Signal Lamp 230 AC/DC - 284921
Notice: This product is discontinued
The Eaton Industries Z EL is a modular opto-acoustic signaling device with a red LED light. It has a nominal voltage of 230V and experiences a maximum power loss of 2W. It can use both AC and DC voltage types and possesses an installation depth of 60mm. The unit features an IP40 protection grade and is mounted using screws. The signaling type is optical and the device conforms to a 1 module size, compatible with DIN-rails. Its LED operating voltage is also rated at 230V AC/DC, with a luminosity of 15mcd and a flashing frequency of 2 Hz. The standard front dimension is 45mm and the mounting width is 1 SU (17.5mm). The terminal cross-section ranges from 1-10 mm² and it complies with the IEC/EN 60669 and VDE 0632 standards.
Notice: This product is discontinued
Description
The Eaton Industries Z EL is a modular opto-acoustic signaling device with a red LED light. It has a nominal voltage of 230V and experiences a maximum power loss of 2W. It can use both AC and DC voltage types and possesses an installation depth of 60mm. The unit features an IP40 protection grade and is mounted using screws. The signaling type is optical and the device conforms to a 1 module size, compatible with DIN-rails. Its LED operating voltage is also rated at 230V AC/DC, with a luminosity of 15mcd and a flashing frequency of 2 Hz. The standard front dimension is 45mm and the mounting width is 1 SU (17.5mm). The terminal cross-section ranges from 1-10 mm² and it complies with the IEC/EN 60669 and VDE 0632 standards.
