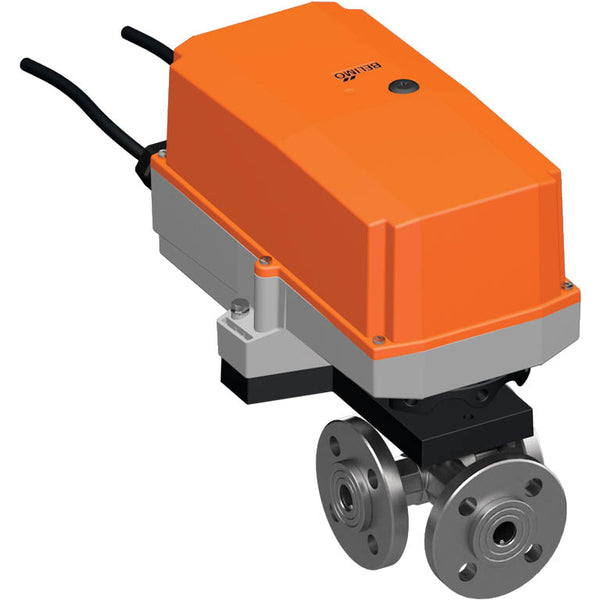

Electric 3-Way Characterized Ball Valve Flange DN 20 Brass EPDM 6.3m3/h 6bar/87psi 24 V AC/DC

Electric 3-Way Characterized Ball Valve Flange DN 20 Brass EPDM 6.3m3/h 6bar/87psi 24 V AC/DC
Electric 3-Way Characterized Ball Valve Flange DN 20 Brass EPDM 6.3m3/h 6bar/87psi 24 V AC/DC
Electric 3-Way Characterized Ball Valve Flange DN 20 Brass EPDM 6.3m3/h 6bar/87psi 24 V AC/DC
Image may vary slightly
See specifications for accurate information.
Reference: V3GXE
Brand: Belimo
Mfr. Part: R7020R6P3-B1/SR24P

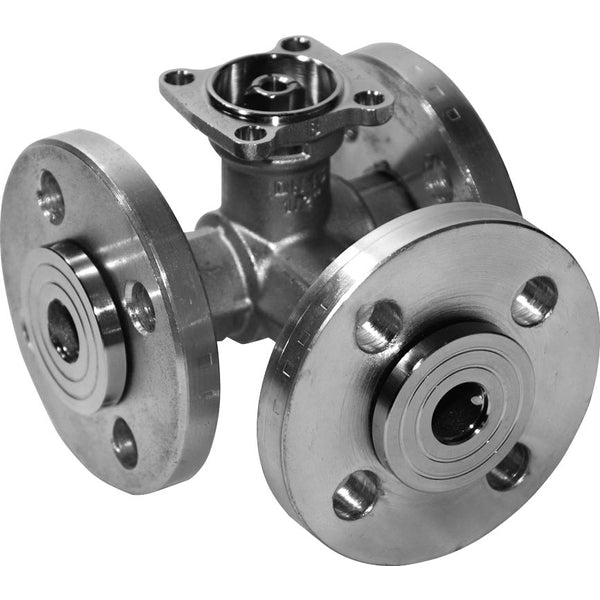

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the flange size is DN 20. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 6.3 m3/h, equivalent to a Cv-value of 7.29 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

View all
Note: product cannot be returned
Regular price
£829.26
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3GXE, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 6 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the flange size is DN 20. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 6.3 m3/h, equivalent to a Cv-value of 7.29 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

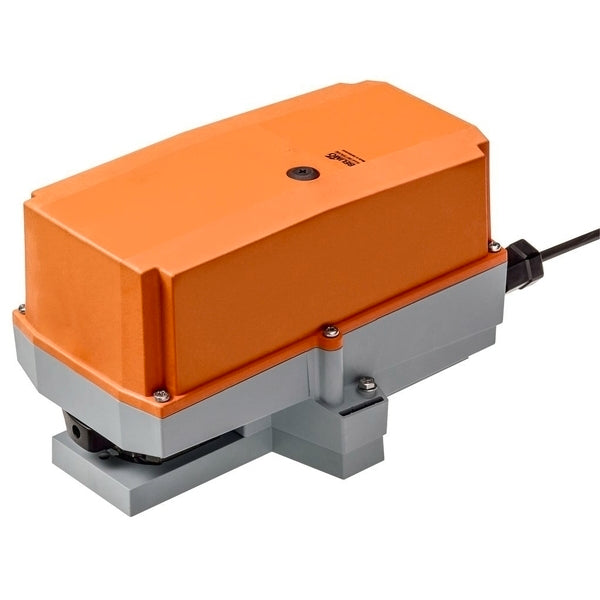

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops. The actuator is particularly suitable for challenging environments such as wood drying, animal breeding, food processing, agriculture, indoor swimming pools/bathhouses, rooftop ventilation plant rooms, and general outdoor applications. The actuator has passed various tests including the Noxious gas test EN 60068-2-60, Salt fog spray test EN 60068-2-52, Ammoniac test DIN 50916-2, Climate test IEC60068-2-30, Disinfectant (animals) test, and UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63. The housing cover must be removed for manual override.

Pros:

  • The integrated characterizing disc guarantees equal percentage flow control
