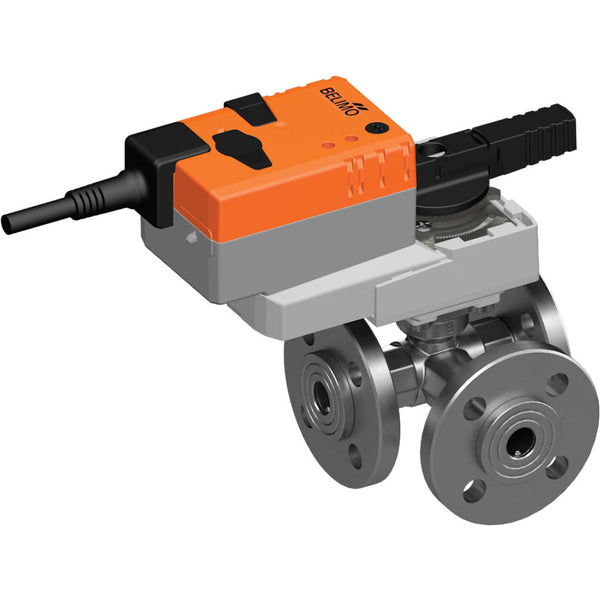

Belimo 3-Way Characterized Valve DN25 Flange Kvs10 24VAC/DC 9s 0-10V 4Nm IP54 R7025R10-B2/LRQ24A-SZ

Belimo 3-Way Characterized Valve Flange DN25 Kvs10 24VAC/DC 9s 0-10V 4Nm IP54 R7025R10-B2/LRQ24A-SZ
Belimo 3-Way Characterized Valve Flange DN25 Kvs10 24VAC/DC 9s 0-10V 4Nm IP54 R7025R10-B2/LRQ24A-SZ
Belimo 3-Way Characterized Valve Flange DN25 Kvs10 24VAC/DC 9s 0-10V 4Nm IP54 R7025R10-B2/LRQ24A-SZ
Image may vary slightly
See specifications for accurate information.
Reference: V3H2G
Brand: Belimo
Mfr. Part: R7025R10-B2/LRQ24A-SZ

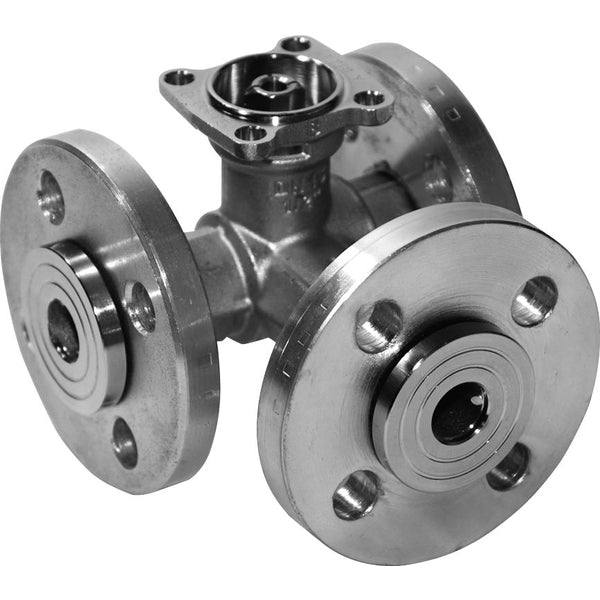

This is a Belimo 3-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 11.57 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 9 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£747.91
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 11.57 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 9 seconds. The actuator has an IP54 rating.

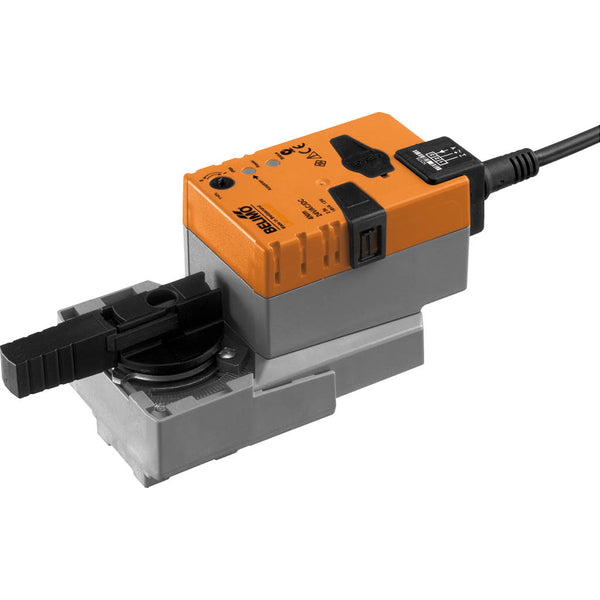

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator can be controlled with a standard control signal of 0-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • Fast acting 9 s
  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
  • This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V
