3-Way Characterized Ball Valve G1 Male Nickel-Plated Brass EPDM 4m3/h 16bar 24VAC/DC Modulating 2-10V 75s 2Nm IP54 R513/KR24-SR

3-Way Characterized Ball Valve G1 Male Nickel-Plated Brass EPDM 4m3/h 16bar 24VAC/DC Modulating 2-10V 75s 2Nm IP54 R513/KR24-SR
3-Way Characterized Ball Valve G1 Male Nickel-Plated Brass EPDM 4m3/h 16bar 24VAC/DC Modulating 2-10V 75s 2Nm IP54 R513/KR24-SR
3-Way Characterized Ball Valve G1 Male Nickel-Plated Brass EPDM 4m3/h 16bar 24VAC/DC Modulating 2-10V 75s 2Nm IP54 R513/KR24-SR
Image may vary slightly
See specifications for accurate information.
Reference: V3DXN
Brand: Belimo
Mfr. Part: R513/KR24-SR

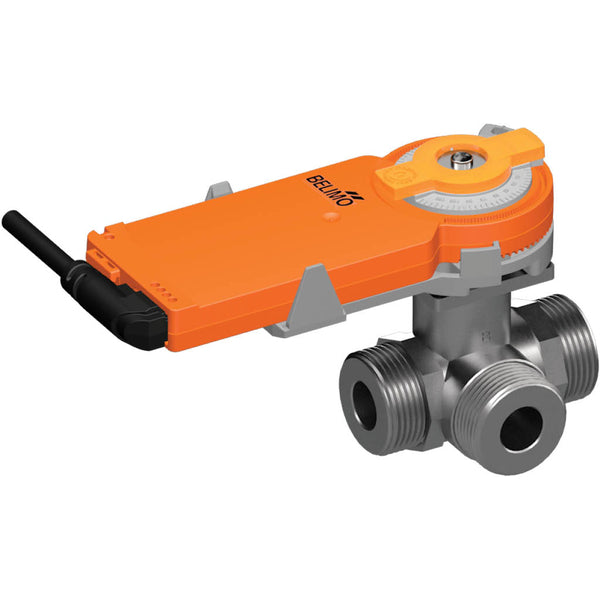

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is G 1 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 4 m3/h, equivalent to a Cv-value of 4.63 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is configured with a 2-10 V control type and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£366.48
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

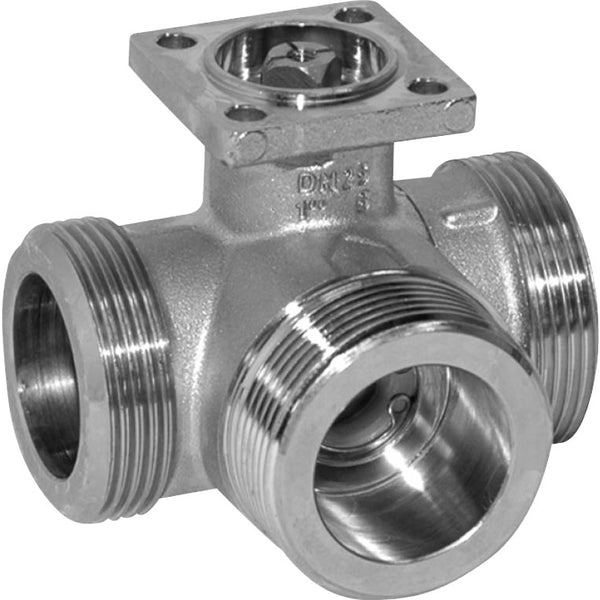

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is G 1 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 4 m3/h, equivalent to a Cv-value of 4.63 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is configured with a 2-10 V control type and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating.

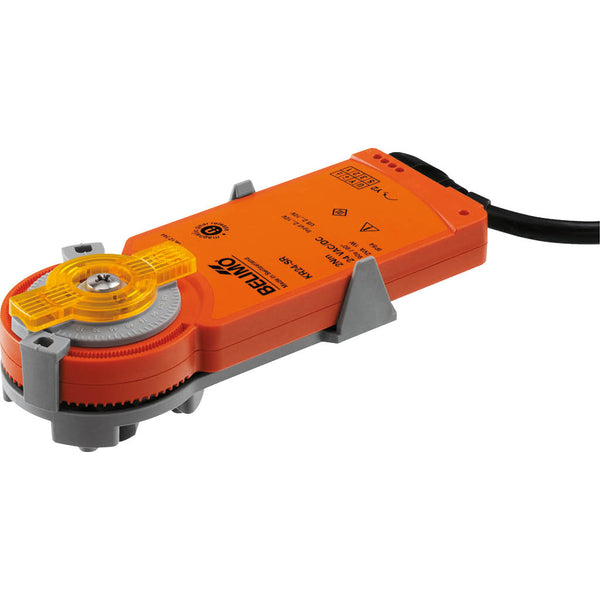

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a magnet, which disengages the gear train as long as the magnet sticks to the magnet symbol. A Z-MA magnet for gear train disengagement is included. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator can be adjusted from 90° (A-AB = 100%) in increments of 2.5°. The scale represents 25-100% of the kvs value. The actuator links with a standard 2-10 V control signal and moves to the position outlined by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
  • This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 2-10 V
