3-Way Characterized Ball Valve G3/4 Male Nickel-Plated Brass EPDM 0.63m3/h 16bar 24VAC/DC 100s 2Nm IP40 R507K/TR24

3-Way Characterized Ball Valve G3/4 Male Nickel-Plated Brass EPDM 0.63m3/h 16bar 24VAC/DC 100s 2Nm IP40 R507K/TR24
3-Way Characterized Ball Valve G3/4 Male Nickel-Plated Brass EPDM 0.63m3/h 16bar 24VAC/DC 100s 2Nm IP40 R507K/TR24
3-Way Characterized Ball Valve G3/4 Male Nickel-Plated Brass EPDM 0.63m3/h 16bar 24VAC/DC 100s 2Nm IP40 R507K/TR24
Image may vary slightly
See specifications for accurate information.
Reference: V3DFK
Brand: Belimo
Mfr. Part: R507K/TR24

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 10 and the port size is G 3/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 100 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£310.81
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 10 and the port size is G 3/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 100 seconds. The actuator has an IP40 rating.

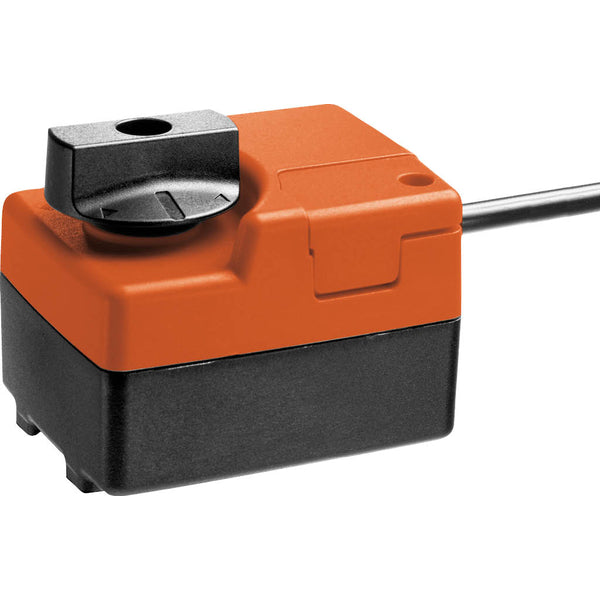

Manual override is possible using a lever, which disengages the gearing as long as the self-resetting lever is pressed. The actuator automatically switches off when end stops are reached, with a pulse duration of ≥0.5 s. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
