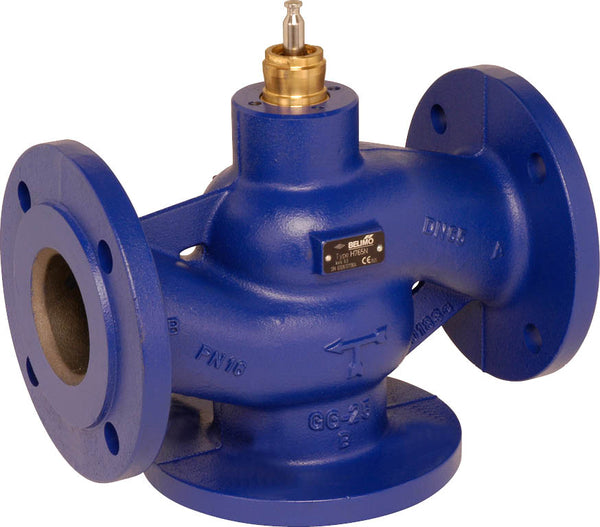

Belimo 3-Way Globe Valve DN15 Flange 15mm Stroke Kvs0.63 100-240VAC 35s 2/3-point 1000N IP54 H711R/NVC230A-TPC

Belimo 3-Way Globe Valve DN15 Flange 15mm Stroke Kvs0.63 100-240VAC 35s 2/3-point 1000N IP54 H711R/NVC230A-TPC
Belimo 3-Way Globe Valve DN15 Flange 15mm Stroke Kvs0.63 100-240VAC 35s 2/3-point 1000N IP54 H711R/NVC230A-TPC
Belimo 3-Way Globe Valve DN15 Flange 15mm Stroke Kvs0.63 100-240VAC 35s 2/3-point 1000N IP54 H711R/NVC230A-TPC
Image may vary slightly
See specifications for accurate information.
Reference: V33Q2
Brand: Belimo
Mfr. Part: H711R/NVC230A-TPC

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The valve's stroke length is 15 mm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 35 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£708.91
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The valve's stroke length is 15 mm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 35 seconds. The actuator has an IP54 rating.

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The default factory setting retracts the actuator stem.

Pros:

  • Equal percentage flow characteristic, the bypass has a linear characteristic
