Belimo 3-Way Globe Valve DN50 Flange 15mm Stroke Kvs40 24VAC/DC 150s BACnet/Modbus/MP-Bus 1000N IP54 H750R/NV24A-MOD

Belimo 3-Way Globe Valve DN50 Flange 15mm Stroke Kvs40 24VAC/DC 150s BACnet/Modbus/MP-Bus 1000N IP54 H750R/NV24A-MOD
Belimo 3-Way Globe Valve DN50 Flange 15mm Stroke Kvs40 24VAC/DC 150s BACnet/Modbus/MP-Bus 1000N IP54 H750R/NV24A-MOD
Belimo 3-Way Globe Valve DN50 Flange 15mm Stroke Kvs40 24VAC/DC 150s BACnet/Modbus/MP-Bus 1000N IP54 H750R/NV24A-MOD
Image may vary slightly
See specifications for accurate information.
Reference: V34JH
Brand: Belimo
Mfr. Part: H750R/NV24A-MOD

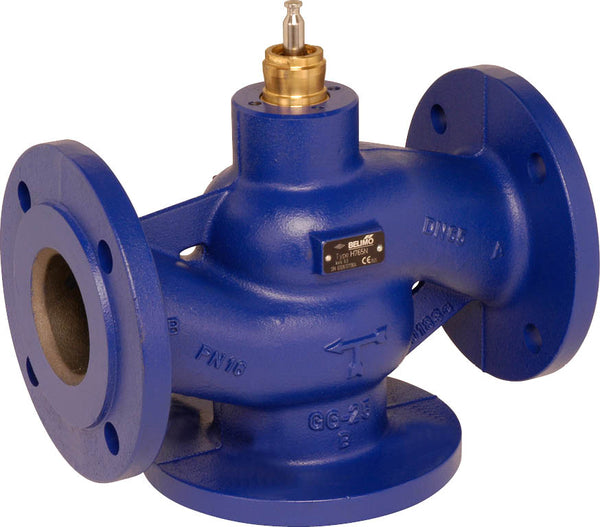

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 3 bar (43.5 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 40 m3/h, equivalent to a Cv-value of 46.28 gpm. The valve's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and requires product ZTH EU for setting the protocol address and linking the actuator to the system. Furthermore, ZTH EU allows the setting of an analog 0-10V or 2-10V control signal. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£929.90
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 3 bar (43.5 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 40 m3/h, equivalent to a Cv-value of 46.28 gpm. The valve's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and requires product ZTH EU for setting the protocol address and linking the actuator to the system. Furthermore, ZTH EU allows the setting of an analog 0-10V or 2-10V control signal. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator comes with an inbuilt interface for BACnet MSTP, Modbus RTU, and MP-Bus. It obtains the digital control signal from the control system and provides the present status. The default factory setting retracts the actuator stem.

Pros:

  • Equal percentage flow characteristic, the bypass has a linear characteristic
  • Modulating actuator with fieldbus or a 0-10 V/2-10 V signal

Cons:

  • Product ZTH EU needed (not included) to set protocol address and link the actuator to the system
