Belimo 3-Way Globe Valve DN25 Flange 20mm Stroke Kvs10 24VAC/DC 35s 0-10V 1000N IP54 H7025X10-S2/NVC24A-SZ-TPC

Belimo 3-Way Globe Valve DN25 Flange 20mm Stroke Kvs10 24VAC/DC 35s 0-10V 1000N IP54 H7025X10-S2/NVC24A-SZ-TPC
Belimo 3-Way Globe Valve DN25 Flange 20mm Stroke Kvs10 24VAC/DC 35s 0-10V 1000N IP54 H7025X10-S2/NVC24A-SZ-TPC
Belimo 3-Way Globe Valve DN25 Flange 20mm Stroke Kvs10 24VAC/DC 35s 0-10V 1000N IP54 H7025X10-S2/NVC24A-SZ-TPC
Image may vary slightly
See specifications for accurate information.
Reference: V33EP
Brand: Belimo
Mfr. Part: H7025X10-S2/NVC24A-SZ-TPC

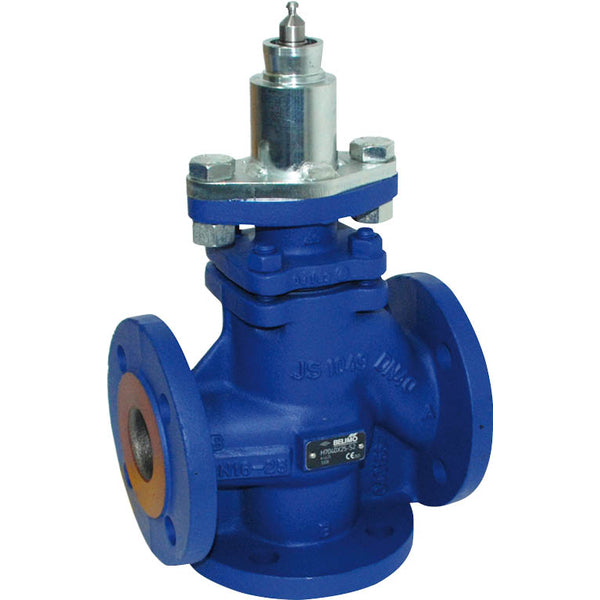

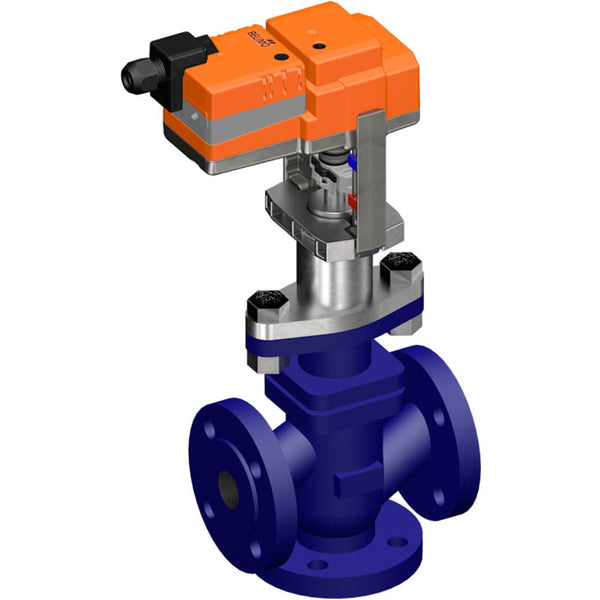

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 11.57 gpm. The valve's stroke length is 20 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 35 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£1,750.04
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 11.57 gpm. The valve's stroke length is 20 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 35 seconds. The actuator has an IP54 rating.

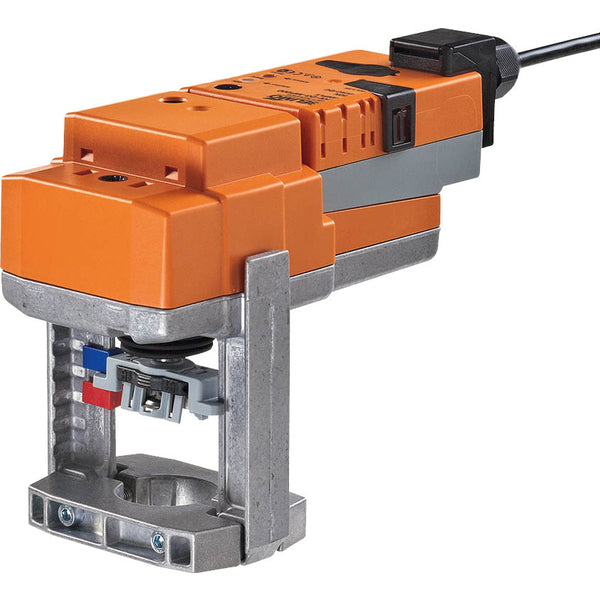

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator can be controlled with a standard control signal of 0-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The default factory setting retracts the actuator stem.

Pros:

  • Equal percentage flow characteristic, the bypass has a linear characteristic
