Belimo 3-Way Globe Valve DN40 Flange 20mm Stroke Kvs25 24VAC/DC Fail-Safe NC/NO 150s 2-10V 1000N IP54 H7040X25-S2/NVK24A-SR-TPC

Belimo 3-Way Globe Valve DN40 Flange 20mm Stroke Kvs25 24VAC/DC Fail-Safe NC/NO 150s 2-10V 1000N IP54 H7040X25-S2/NVK24A-SR-TPC
Belimo 3-Way Globe Valve DN40 Flange 20mm Stroke Kvs25 24VAC/DC Fail-Safe NC/NO 150s 2-10V 1000N IP54 H7040X25-S2/NVK24A-SR-TPC
Belimo 3-Way Globe Valve DN40 Flange 20mm Stroke Kvs25 24VAC/DC Fail-Safe NC/NO 150s 2-10V 1000N IP54 H7040X25-S2/NVK24A-SR-TPC
Image may vary slightly
See specifications for accurate information.
Reference: V33GN
Brand: Belimo
Mfr. Part: H7040X25-S2/NVK24A-SR-TPC

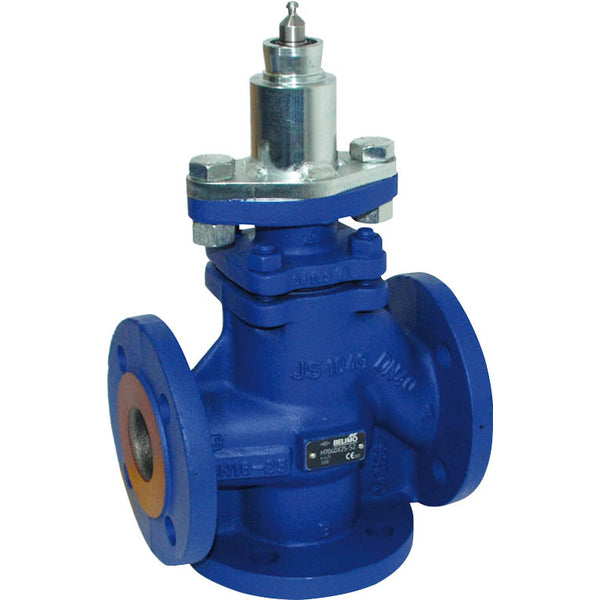

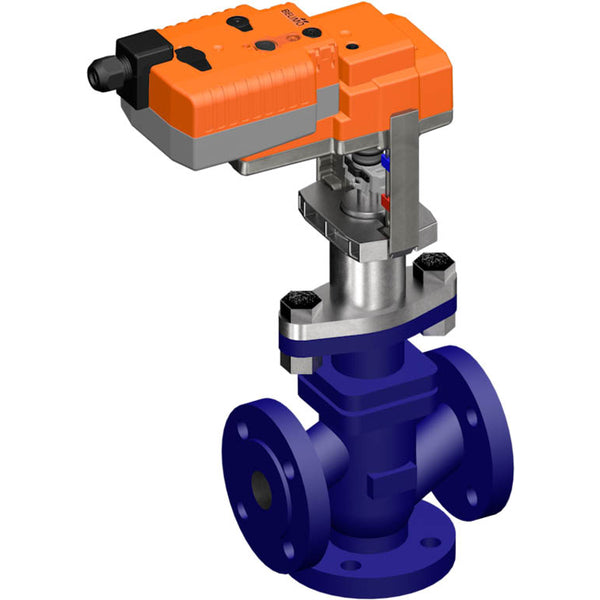

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 40 and the flange size is DN 40. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 5 bar (72.5 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The valve's stroke length is 20 mm. The actuator requires a supply voltage of 24 V AC/DC. The modulating actuator is requires a 2-10 V input and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NC/NO) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£2099.95
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 40 and the flange size is DN 40. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 5 bar (72.5 psi). The valve can operate between 5 and 200 °C (41 to 392 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The valve's stroke length is 20 mm. The actuator requires a supply voltage of 24 V AC/DC. The modulating actuator is requires a 2-10 V input and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NC/NO) feature that ensures safe operation in the event of a power failure.

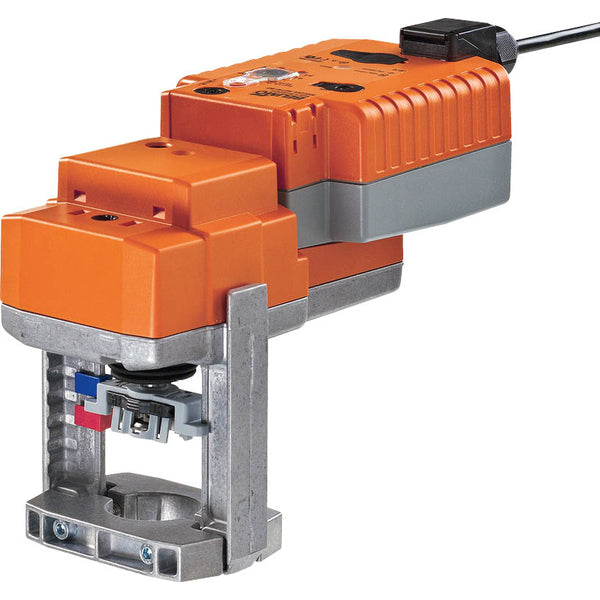

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator moves the valve to the desired operating position simultaneously as the integrated capacitors charge. If the power supply is interrupted, the valve shifts to the chosen fail-safe position using the stored electrical energy. The default factory setting retracts the actuator stem. The capacitor actuators require a pre-charging period to bring the capacitors to a usable voltage level. This ensures that, in case of a power failure, the actuator can move from its current position into the fail-safe position at any time. The rotary knob fail-safe position allows for adjustment of the preferred fail-safe position. The adjustment range is based on the actuator's maximum stroke height. In case of power failure, the actuator moves to the chosen fail-safe position considering a factory set bridging time of 2 seconds. Post-factory delivery, the actuator is fully discharged and requires about 20 seconds of pre-charging before initial setup to attain the necessary voltage level in the capacitors.

Pros:

  • Equal percentage flow characteristic, the bypass has a linear characteristic
  • The actuator is equipped with a fail-safe feature
