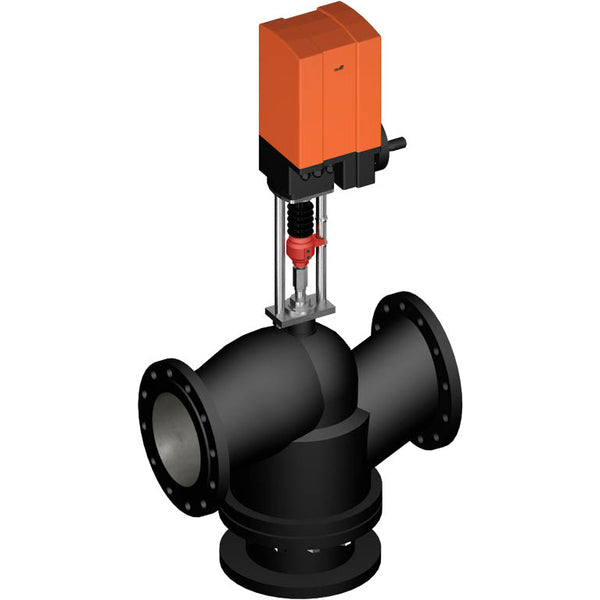

Belimo 3-Way Globe Valve DN250 Flange 65mm Stroke Kvs1000 230VAC 3-point 12000N IP65 Terminal H7250+GV12-230-3-T
This is a Belimo 3-way globe valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 250 and the flange size is DN 250. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 0.6 bar (8.7 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 1000 m3/h, equivalent to a Cv-value of 1157.0 gpm. The valve's stroke length is 65 mm. The actuator requires a supply voltage of 230 V AC. The actuator has an IP65 rating.
- Regular price
- £17,940.74
Description
This is a Belimo 3-way globe valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 250 and the flange size is DN 250. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 0.6 bar (8.7 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 1000 m3/h, equivalent to a Cv-value of 1157.0 gpm. The valve's stroke length is 65 mm. The actuator requires a supply voltage of 230 V AC. The actuator has an IP65 rating.
The actuator is protected against short circuits, polarity reversal, and overloading. In a de-energized state or when the motor is switched off, upward and downward movements can be performed by pressing and turning the handwheel. The stroke is mechanically indicated on the bracket, and the indicator adjusts itself automatically. The actuator is factory-mounted onto the corresponding valve. The power connection is made with form closure, and power transmission is achieved through a torsion-secured coupling.
Pros:
- Equal percentage flow characteristic, the bypass has a linear characteristic
