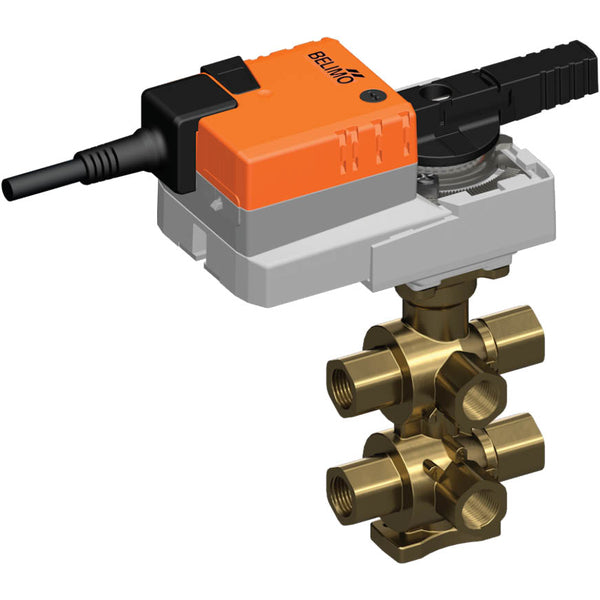

Belimo 6-Way Characterized Valve Rp1/2 Kvs1.8/0.4 24VAC/DC 90s BACnet/Modbus 10Nm IP40 RJ12 R3015-1P8-P4-B2/NR24A-MOD-J6

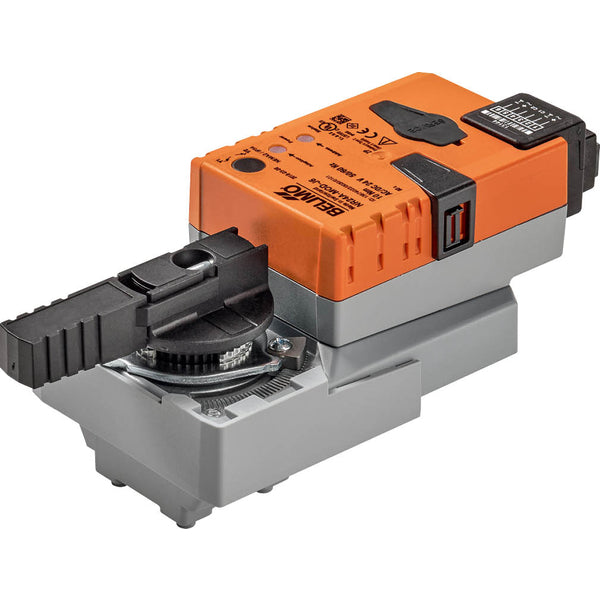

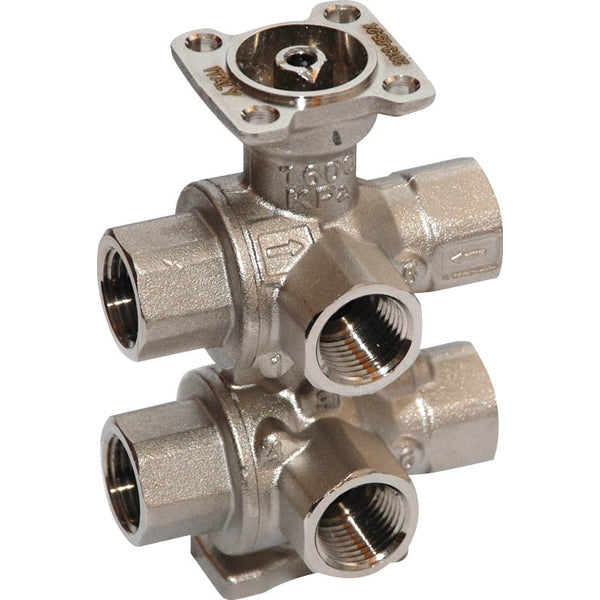

This is a Belimo 6-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 1.8 m3/h, equivalent to a Cv-value of 2.08 gpm. The Kv value 2 of the valve is 0.4 m3/h, equivalent to a Cv-value of 0.46 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

Pros:

• Manual override
• The actuator is overload protected
• Visual position indicator
• The integrated characterized disc ensures equal percentage flow, ideal for heating circuits

Cons:

• The time to open/close of 90 s is slow for some applications
