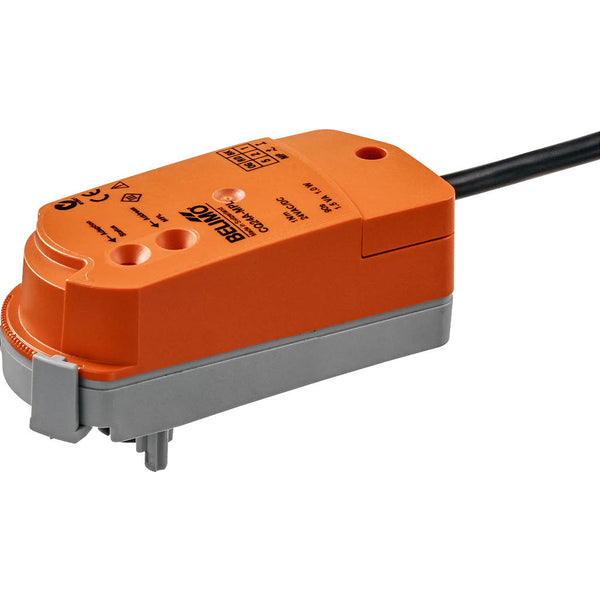

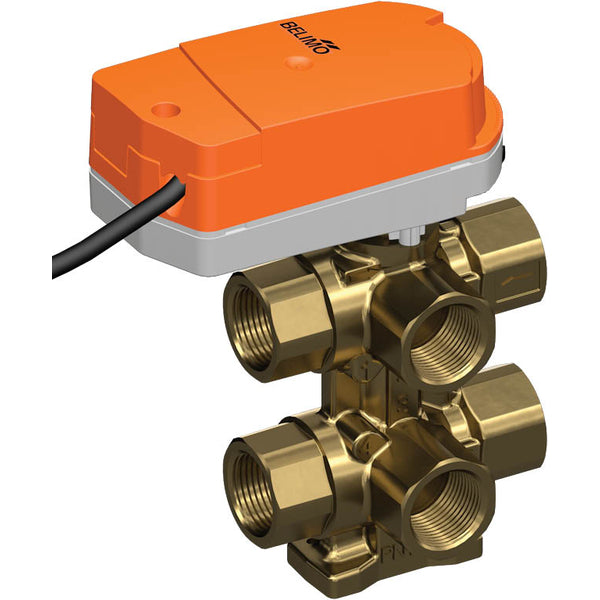

Belimo 6-Way Characterized Valve Rp1/2 Kvs0.63 24VAC/DC 75s MP-Bus 1Nm IP40 R3015-P63-P63-B1/CQ24A-MPL
This is a Belimo 6-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The Kv value 2 of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with MP-Bus control type, enabling seamless integration and efficient management of connected devices in the system, ensuring reliable control and communication capabilities. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.
- Regular price
- £203.33
Description
This is a Belimo 6-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 1 bar (14.5 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The Kv value 2 of the valve is 0.63 m3/h, equivalent to a Cv-value of 0.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with MP-Bus control type, enabling seamless integration and efficient management of connected devices in the system, ensuring reliable control and communication capabilities. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
