Belimo 6-Way PI Zone Valve Rp1/2 Kvs1.8 24VAC/DC BACnet/Modbus/MP-Bus 0-10/2-10V IP40 C615QP-D+BAC
Notice: This product is discontinued

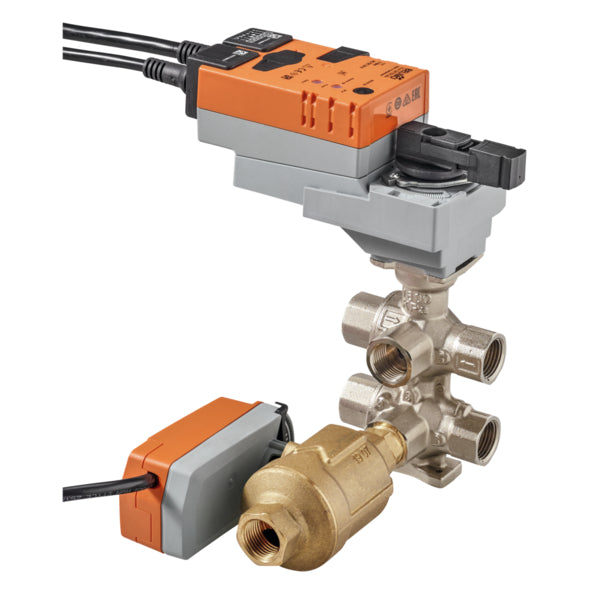

This is a Belimo 6-way electrically actuated pressure independent zone valve (PIQCV) with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The integrated pressure regulating valve enables a constant flow volume and achieves a valve authority of 1, regardless of the differential pressure. The flow rate remains constant with each opening position, even in the presence of pressure variations and in the partial load range, ensuring a steady control. Equal percentage flow control is ensured by the special design of the ball. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 1.8 m3/h, equivalent to a Cv-value of 2.08 gpm. The Kv value 2 of the valve is 1.8 m3/h, equivalent to a Cv-value of 2.08 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. Installing Belimo actuators on this valve is made easy due to the central bolt design. The actuator has an IP40 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Notice: This product is discontinued
Description
This is a Belimo 6-way electrically actuated pressure independent zone valve (PIQCV) with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The integrated pressure regulating valve enables a constant flow volume and achieves a valve authority of 1, regardless of the differential pressure. The flow rate remains constant with each opening position, even in the presence of pressure variations and in the partial load range, ensuring a steady control. Equal percentage flow control is ensured by the special design of the ball. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between 6 and 80 °C (43 to 176 °F). The Kv value 1 of the valve is 1.8 m3/h, equivalent to a Cv-value of 2.08 gpm. The Kv value 2 of the valve is 1.8 m3/h, equivalent to a Cv-value of 2.08 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V DC, ensuring accurate and responsive control in various applications. Installing Belimo actuators on this valve is made easy due to the central bolt design. The actuator has an IP40 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.
Pros:
- Very easy installation of Belimo ZoneTight actuators, just click and done
- No need for time-consuming manual hydronic system adjustment anymore
- Water quantity is guaranteed even with varying pressure and partial load operation
- The desired Vmax value can be easily and quickly adjusted on the actuator using the associated clip
Series:
The Belimo C6-QP-BAC is a 6-way PI Zone Valve with internal thread and a nominal voltage of AC/DC 24 V. Designed for closed cold and warm water systems, it offers switching or modulating control on the water side of thermal heating/cooling elements. It features two sequences for cooling and heating, with changeover provided by a 6-way characterized control valve. This series also provides pressure-independent flow control via a 2-way PI zone valve (PIQCV). Communication options include BACnet MS/TP, Modbus RTU, Belimo MP-Bus, or conventional control, and it ranges from DN15-20.The Belimo PIQCV is a PI Zone Valve series that caters to 2-way internal thread applications. It is designed for closed cold and warm water systems. This series is primarily used for modulating control of air-handling and heating systems on the water side. The Belimo PIQCV series is known for its snap-assembly actuator, making installation and operations efficient. This series offers reliable performance and durability, enhancing system control and user experience.
