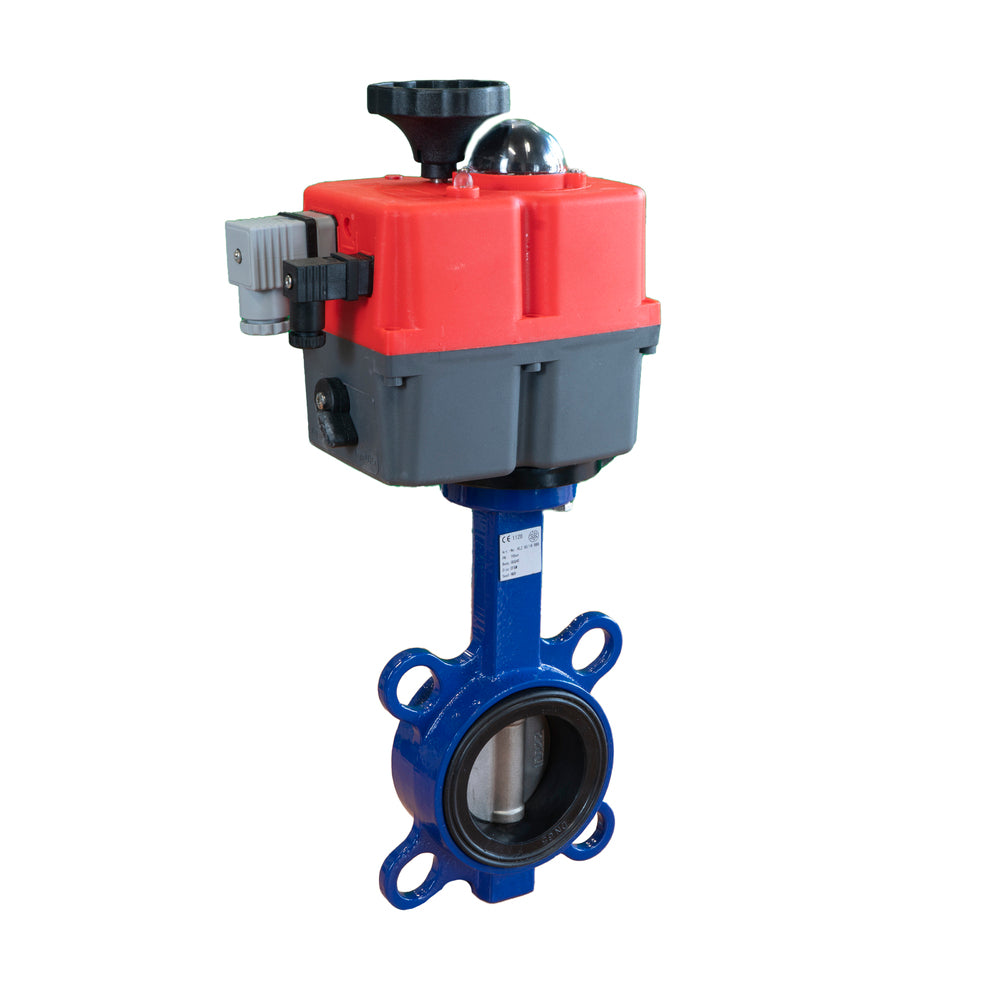

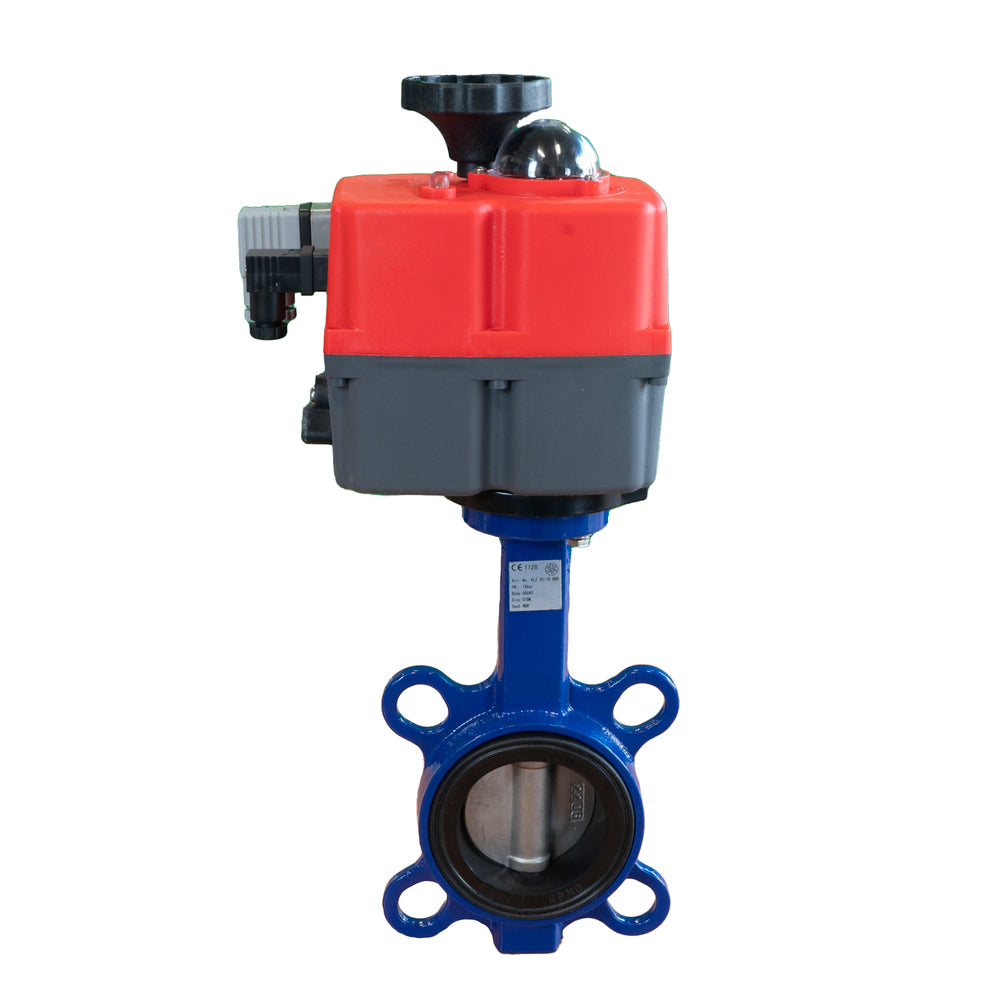

Electric Butterfly Valve DN100 24-240V AC/DC Fail-Safe Wafer Stainless Steel EPDM J+J

Electric Butterfly Valve DN100 24-240V AC/DC Fail-Safe Wafer Stainless Steel EPDM J+J
Electric Butterfly Valve DN100 24-240V AC/DC Fail-Safe Wafer Stainless Steel EPDM J+J
Image may vary slightly
See specifications for accurate information.
Reference: V2SGF
Brand: Tameson
This electrical actuator with fail safe function is offered in combination with a stainless steel butterfly valve. It has a battery safety return (BSR
View all
Note: product cannot be returned
Regular price
£2540.25
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 13 - 15 business days

Description
Specifications
Downloads

This electrical actuator with fail safe function is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 29 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. It is also equipped with a battery safety return (BSR) as an electronic safety function. If power is lost, the battery will power the actuator enough to put the valve back to its normal state (normally open/closed depends on how it is mounted). The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 100, and is rated up to 16 bar (232.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a stainless steel housing, stainless steel disc and an EPDM seal. It is suitable for media temperatures between -10 and 110 °C (14 and 230 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F).

Pros:

  • No risk of water hammer due to slow closing (29 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
  • It has a battery safety return (BSR)
