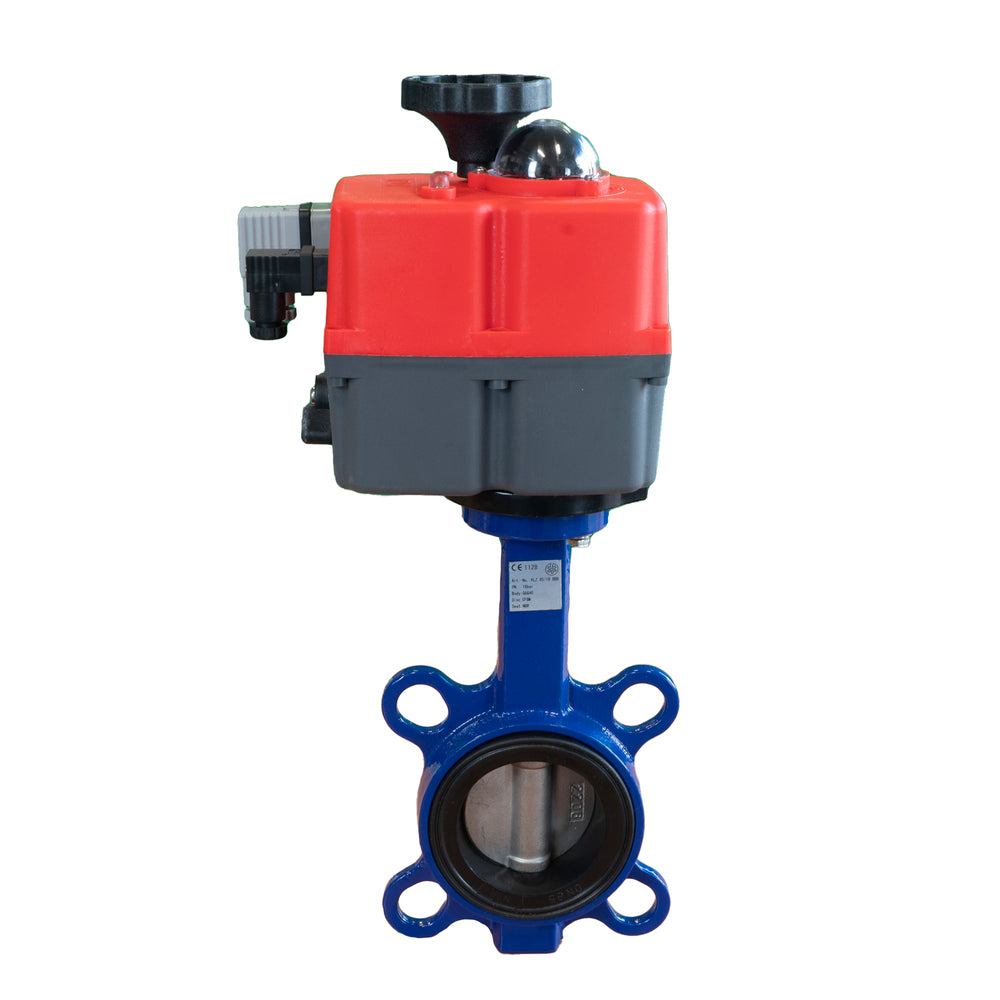

Electric Butterfly Valve DN100 24-240V AC/DC Modulating Wafer GGG40 EPDM Drinking water J+J

Electric Butterfly Valve DN100 24-240V AC/DC Modulating Wafer GGG40 EPDM Drinking water J+J
Electric Butterfly Valve DN100 24-240V AC/DC Modulating Wafer GGG40 EPDM Drinking water J+J
Image may vary slightly
See specifications for accurate information.
Reference: V2SK8
Brand: Tameson
This modulating electrical actuator is offered in combination with a cast iron butterfly valve. The actuator has a digital positioning system (DPS). A
View all
Note: product cannot be returned
Regular price
£1861.95
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 13 - 15 business days

Description
Specifications
Downloads
Related products

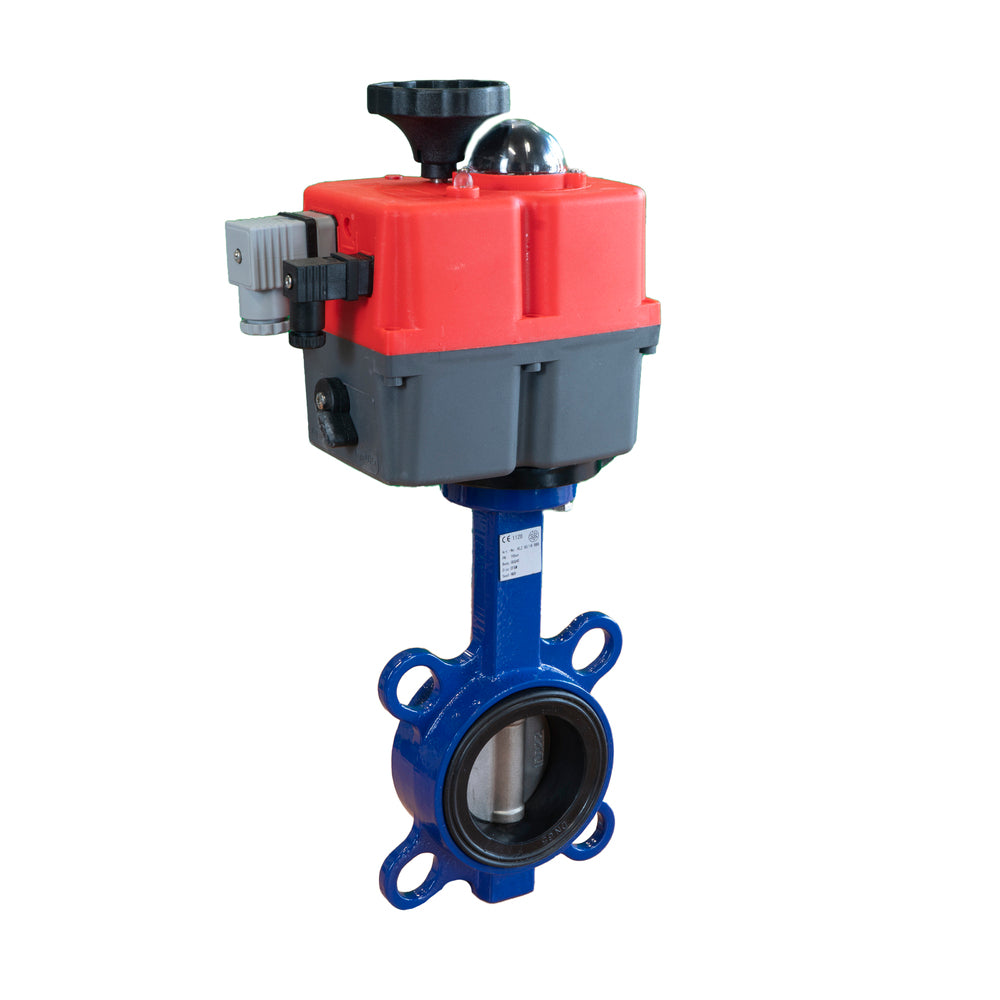

This modulating electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 29 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA/0-10 V for positioning. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 100, and is rated up to 16 bar (232.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an EPDM seal. It is suitable for media temperatures between -10 and 110 °C (14 and 230 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F). Is suitable for drinking water (DVGW approval).

Pros:

  • No risk of water hammer due to slow closing (29 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
  • The actuator has a digital positioning system (DPS)
