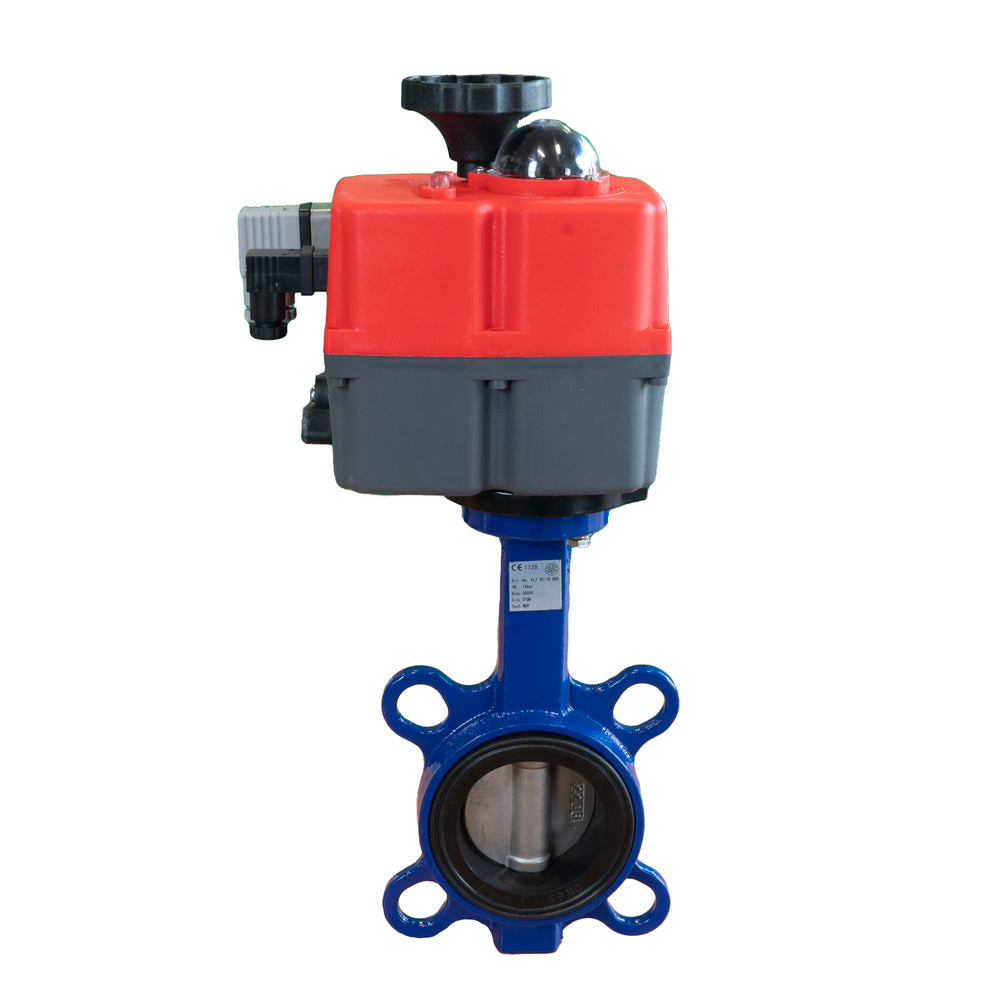

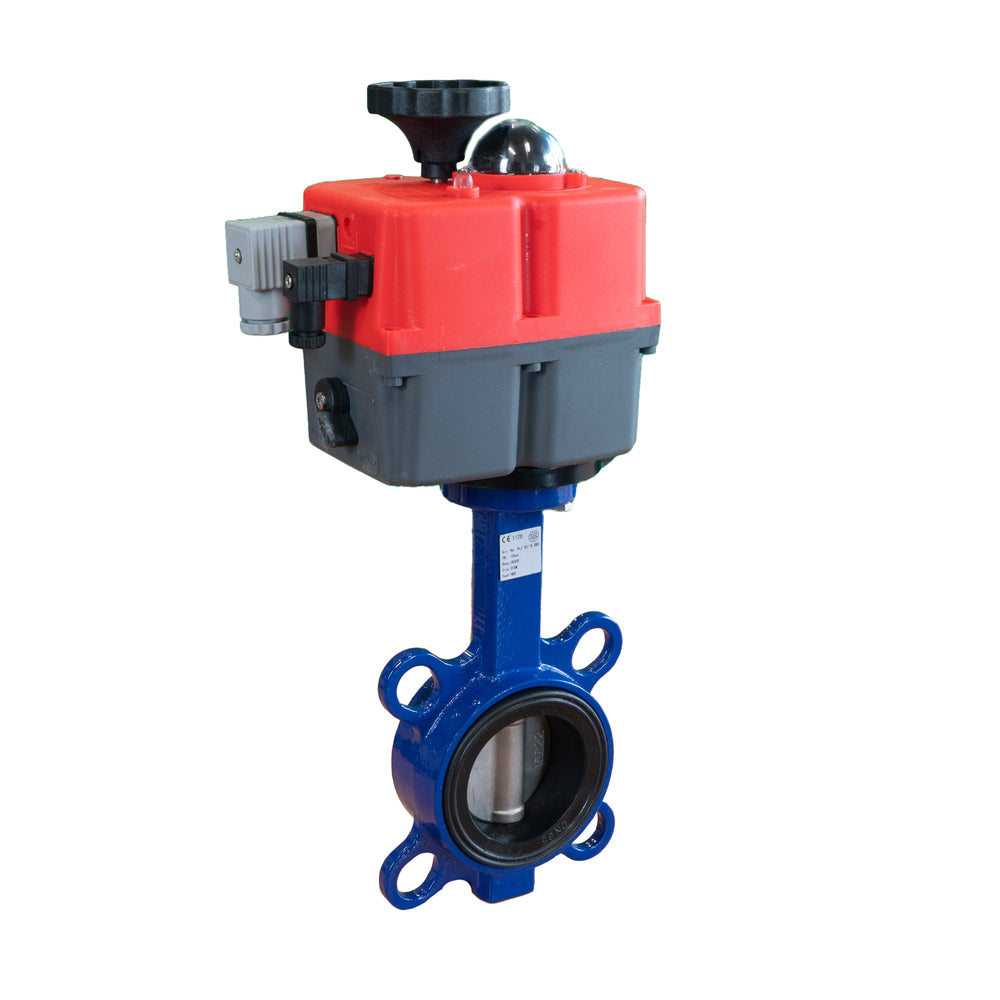

Electric Butterfly Valve DN100 24-240V AC/DC Wafer Stainless Steel FKM J+J

Notice: This product is discontinued and replaced by V2SDH

Discontinued
Electric Butterfly Valve DN100 24-240V AC/DC Wafer Stainless Steel FKM J+J
Electric Butterfly Valve DN100 24-240V AC/DC Wafer Stainless Steel FKM J+J
Image may vary slightly
See specifications for accurate information.
Reference: V2SDJ
Brand: Tameson
This electrical actuator is offered in combination with a stainless steel butterfly valve. Actuator requires 24-240 V AC/DC to operate. The butterfly
View all
Note: product cannot be returned

Notice: This product is discontinued and replaced by V2SDH

Description
Specifications
Downloads

This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 34 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 100, and is rated up to 10 bar (145.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a stainless steel housing, stainless steel disc and an FKM seal. It is suitable for media temperatures between 5 and 180 °C (41 and 356 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F).

Pros:

  • No risk of water hammer due to slow closing (34 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
