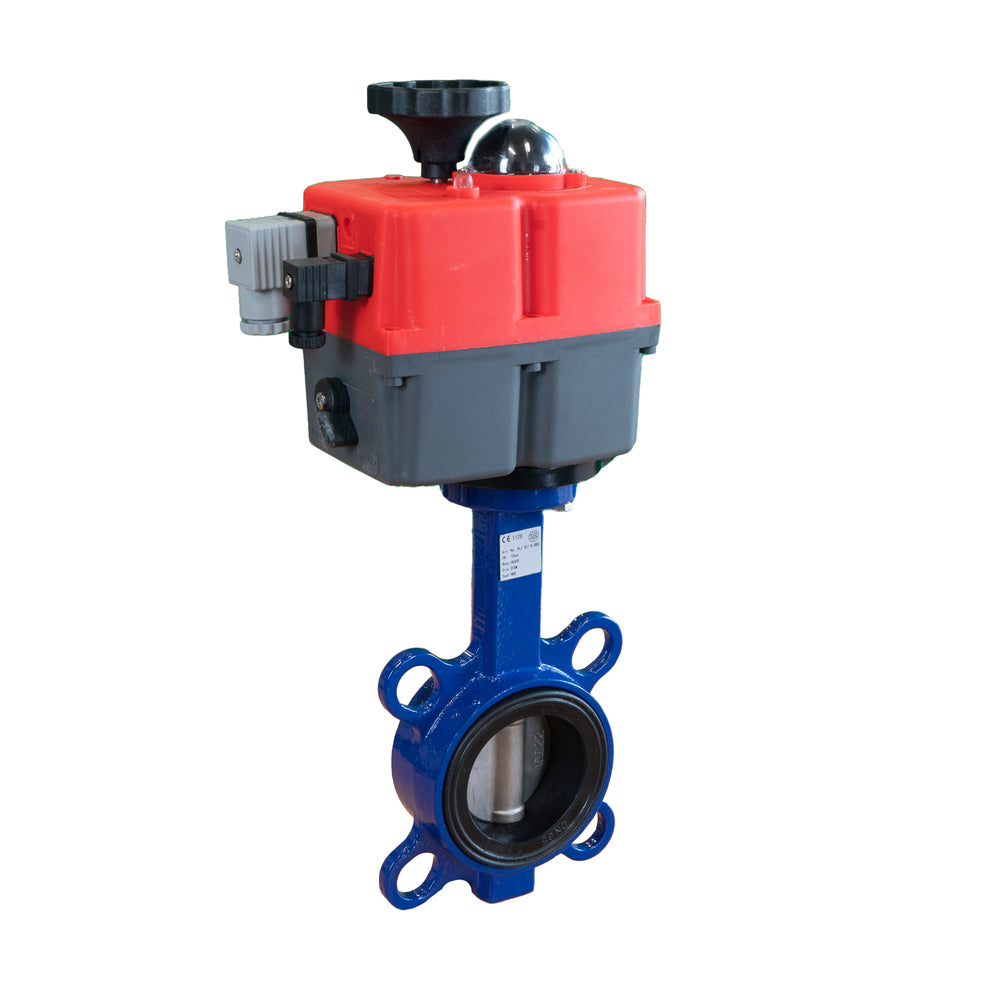

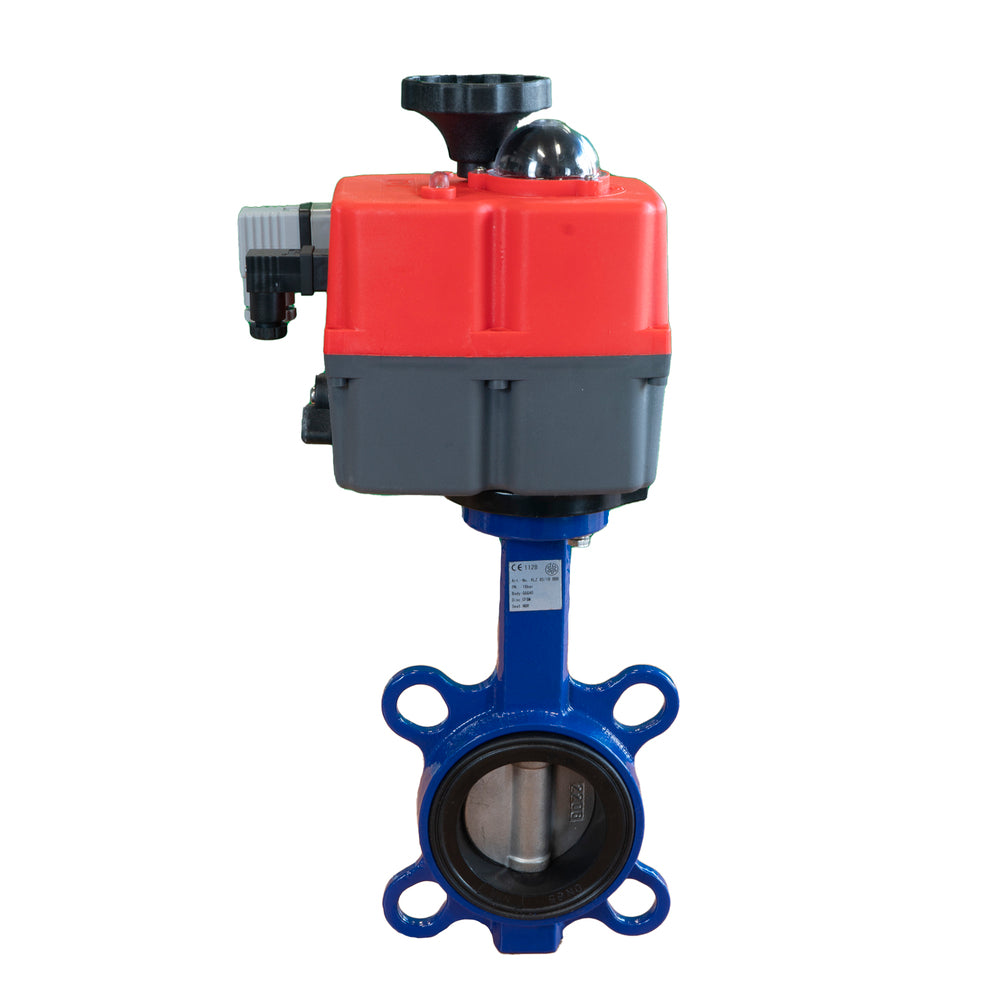

Electric Butterfly Valve DN32 24-240V AC/DC Wafer GGG40 EPDM Drinking water J+J
Notice: This product will be discontinued in the future
This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 9 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 32, and is rated up to 16 bar (232.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an EPDM seal. It is suitable for media temperatures between -10 and 110 °C (14 and 230 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F). Is suitable for drinking water (DVGW approval).
Notice: This product will be discontinued in the future
Description
This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 9 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 32, and is rated up to 16 bar (232.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an EPDM seal. It is suitable for media temperatures between -10 and 110 °C (14 and 230 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F). Is suitable for drinking water (DVGW approval).
Pros:
- No risk of water hammer due to slow closing (9 s)
- The components are interchangeable and can be replaced individually if needed
- High Kv-value because the fluid flows in a straight line
