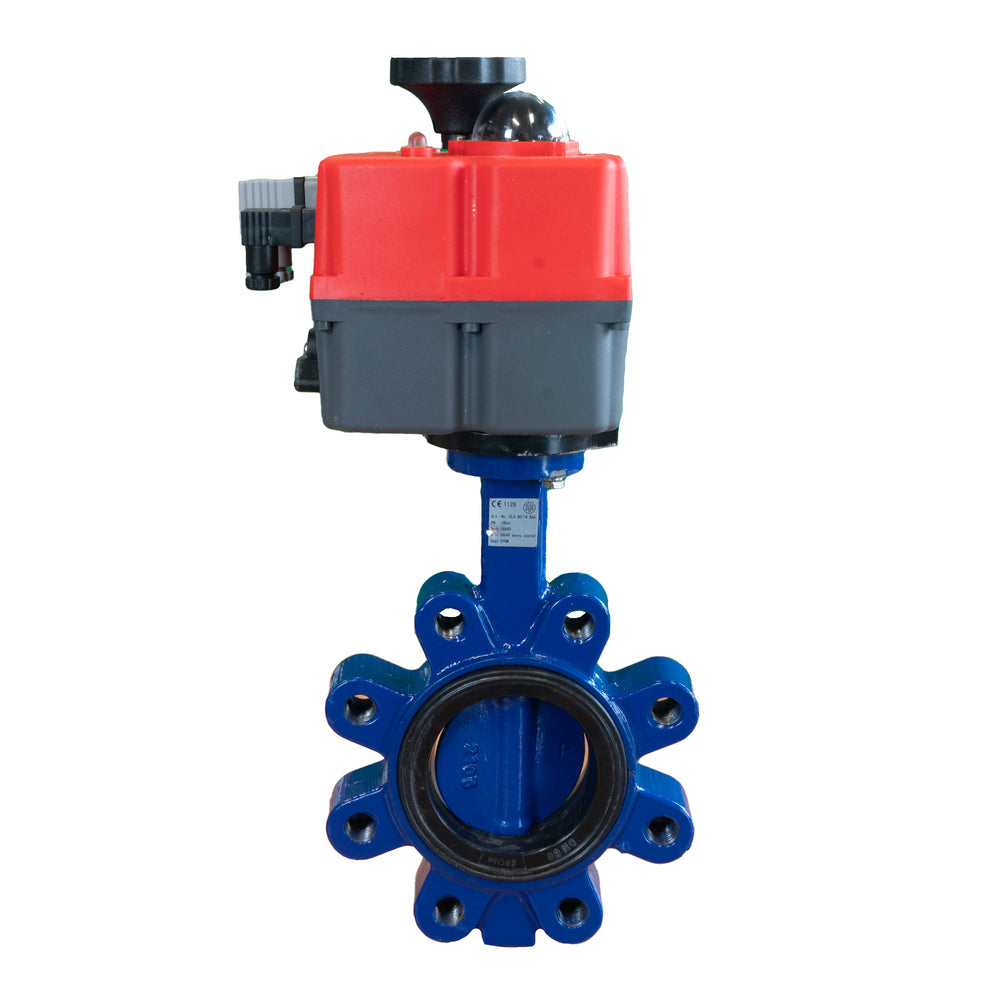

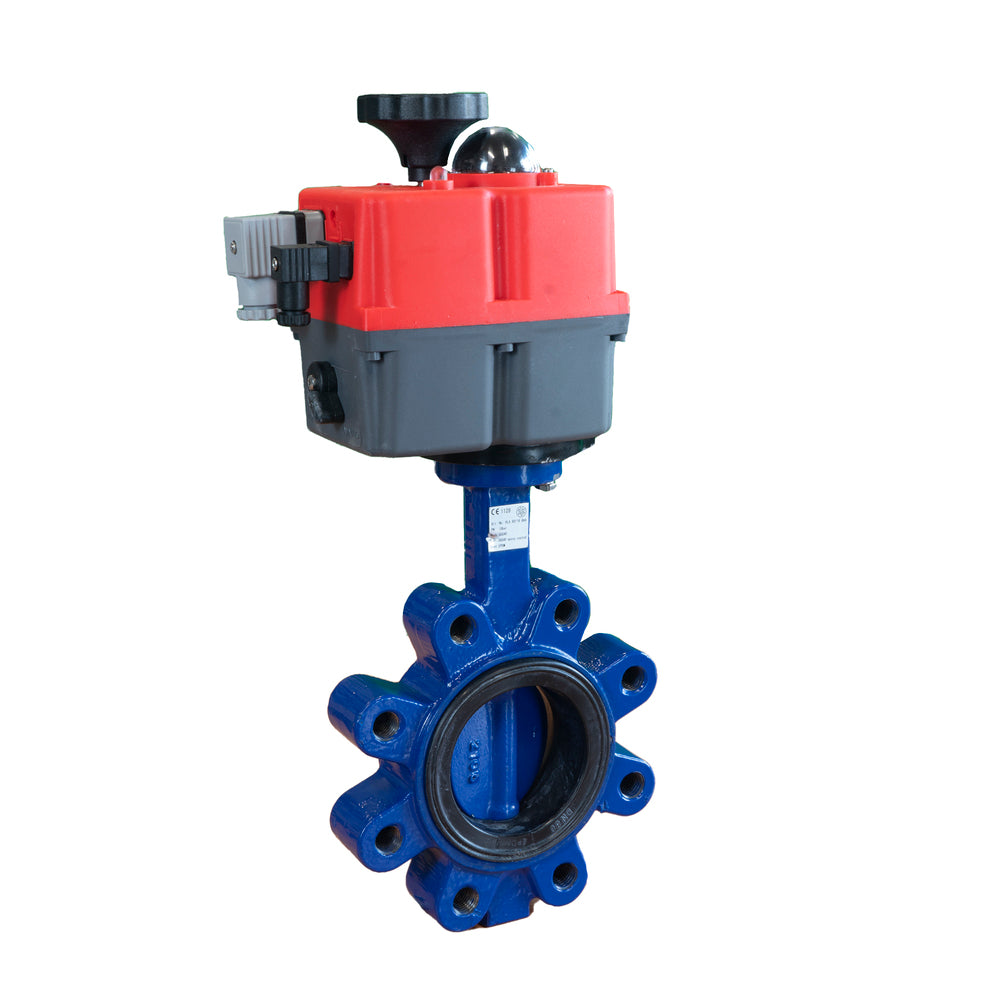

Electric Butterfly Valve DN40 24-240V AC/DC Modulating Fail-Safe Lug GGG40 EPDM Drinking water J+J

Electric Butterfly Valve DN40 24-240V AC/DC Modulating Fail-Safe Lug GGG40 EPDM Drinking water J+J
Electric Butterfly Valve DN40 24-240V AC/DC Modulating Fail-Safe Lug GGG40 EPDM Drinking water J+J
Image may vary slightly
See specifications for accurate information.
Reference: V2SPY
Brand: Tameson
This modulating electrical actuator with fail safe function is offered in combination with a cast iron butterfly valve. The actuator has a digital pos
View all
Note: product cannot be returned
Regular price
£1978.62
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 13 - 15 business days

Description
Specifications
Downloads

This modulating electrical actuator with fail safe function is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 9 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA/0-10 V for positioning. It is also equipped with a battery safety return (BSR) as an electronic safety function. If power is lost, the battery will power the actuator enough to put the valve back to its normal state (normally open/closed depends on how it is mounted). The butterfly valve has a lug type flange for connecting it to the piping, a nominal diameter of DN 40, and is rated up to 12 bar (174.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an EPDM seal. It is suitable for media temperatures between -10 and 110 °C (14 and 230 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F). Is suitable for drinking water (DVGW approval).

Pros:

  • No risk of water hammer due to slow closing (9 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
