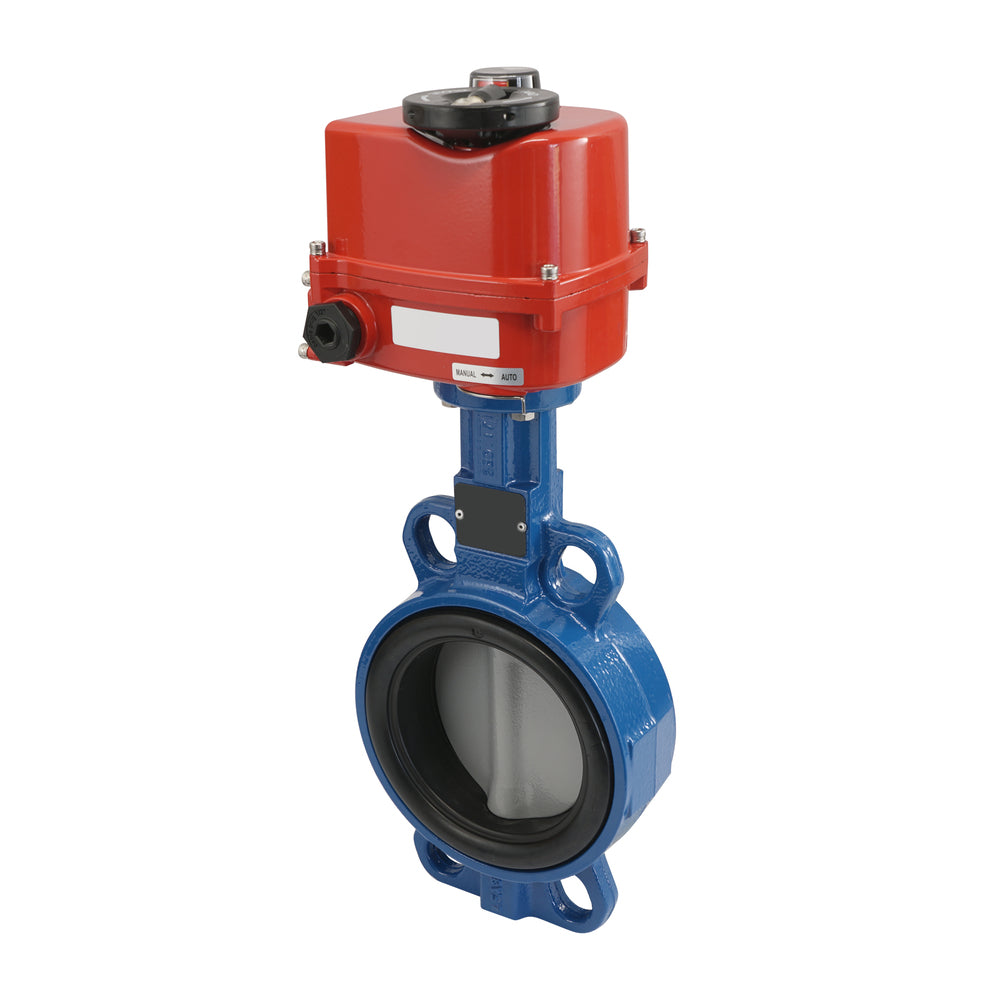

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

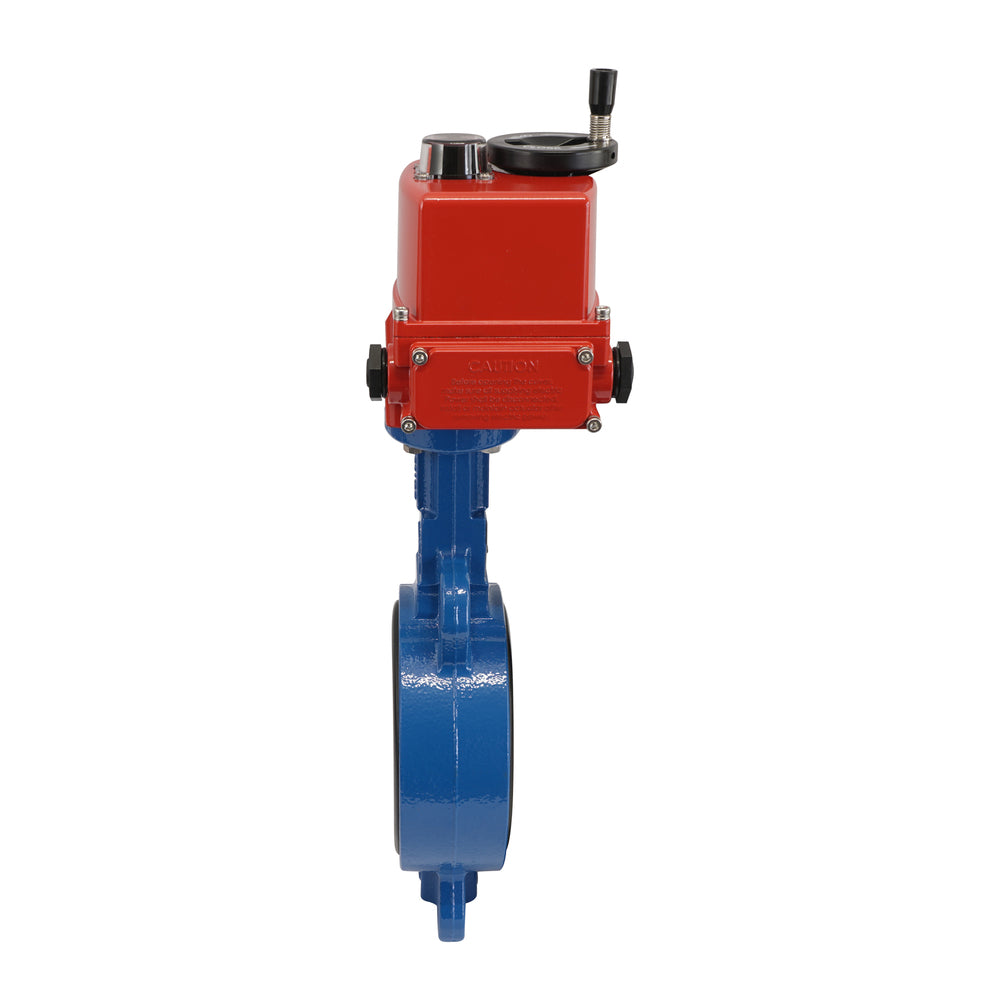

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

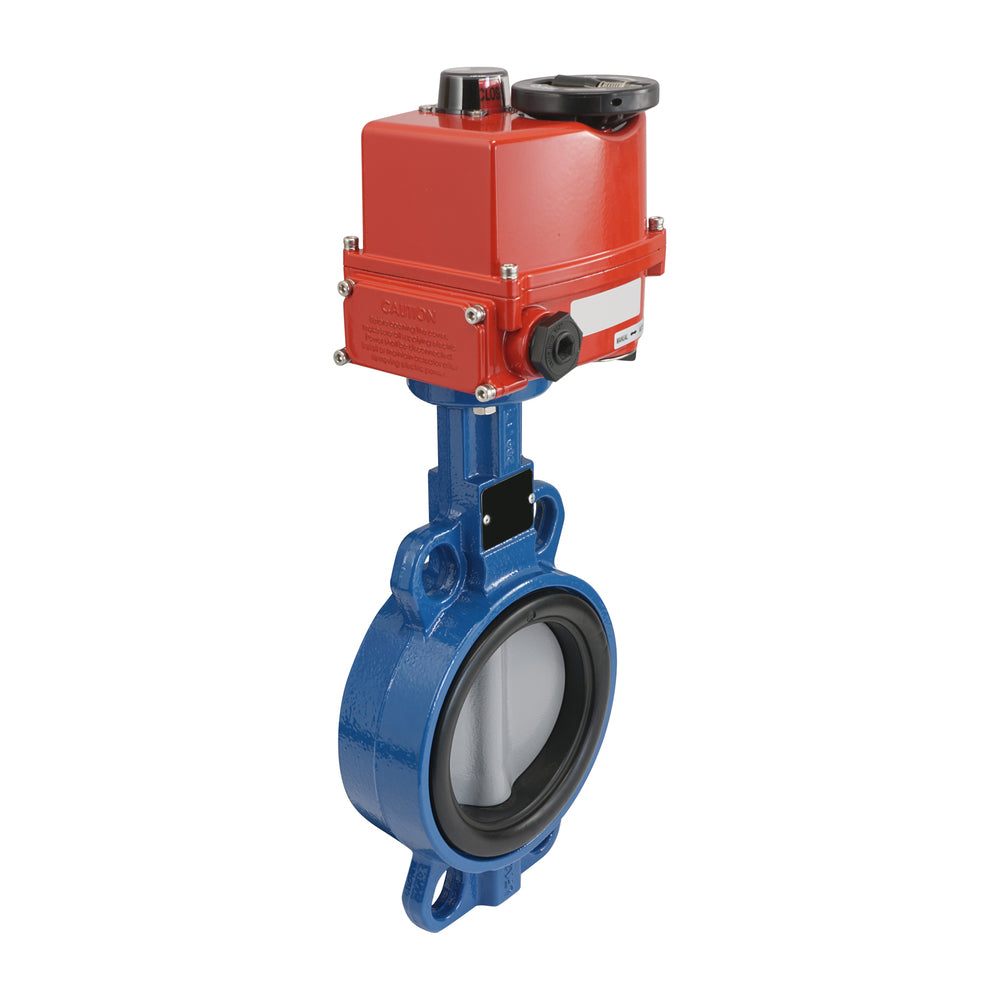

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

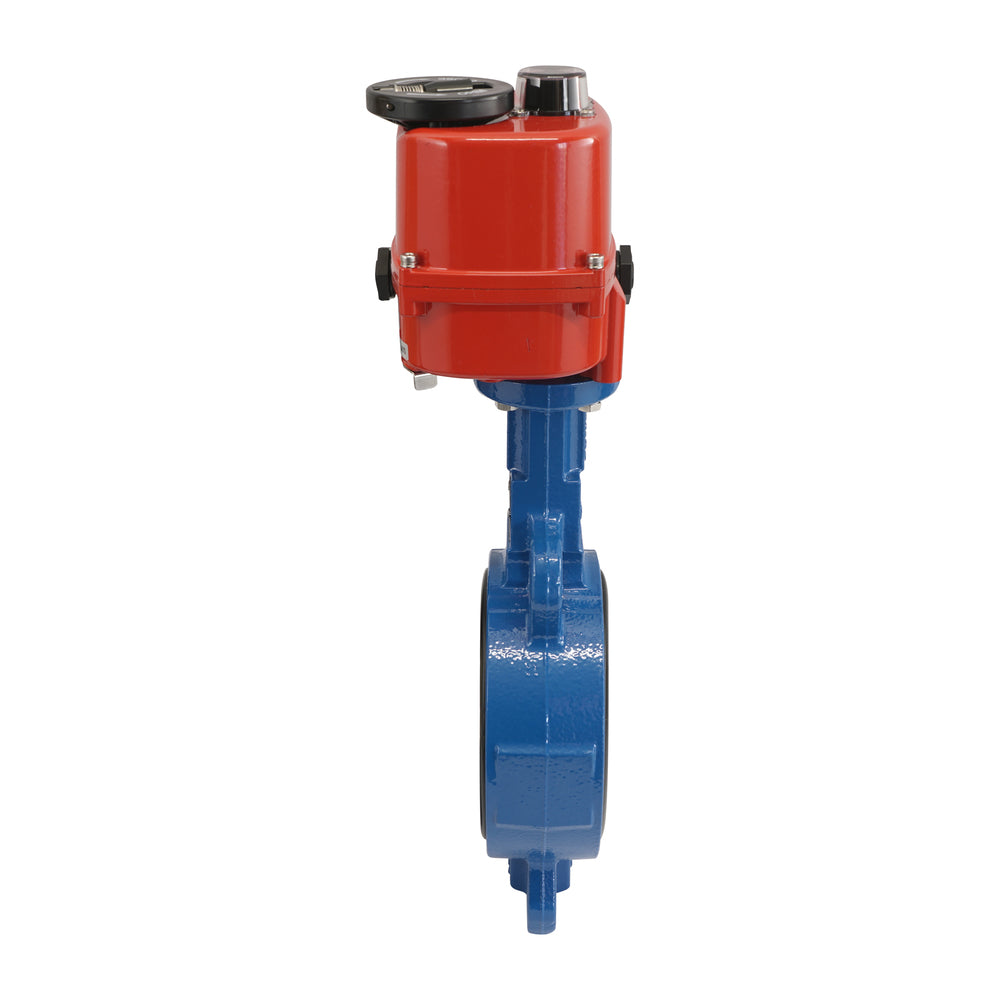

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

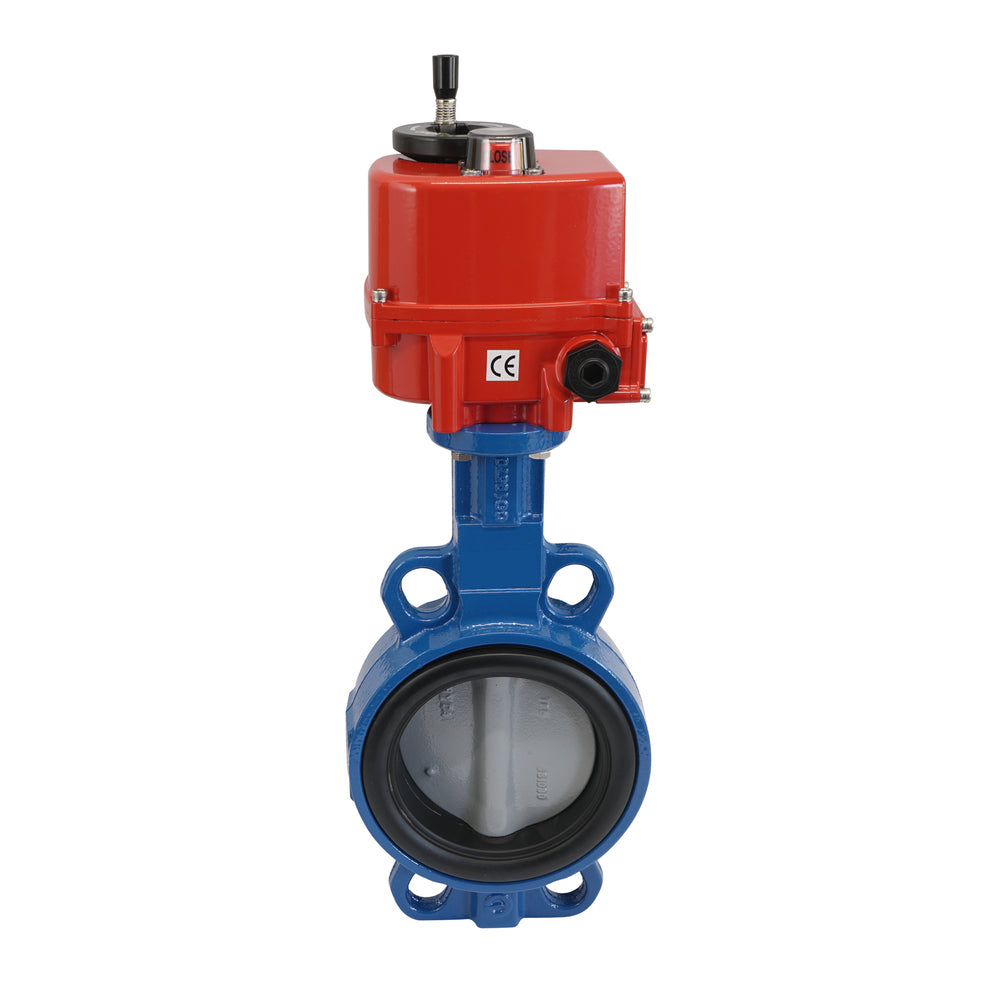

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

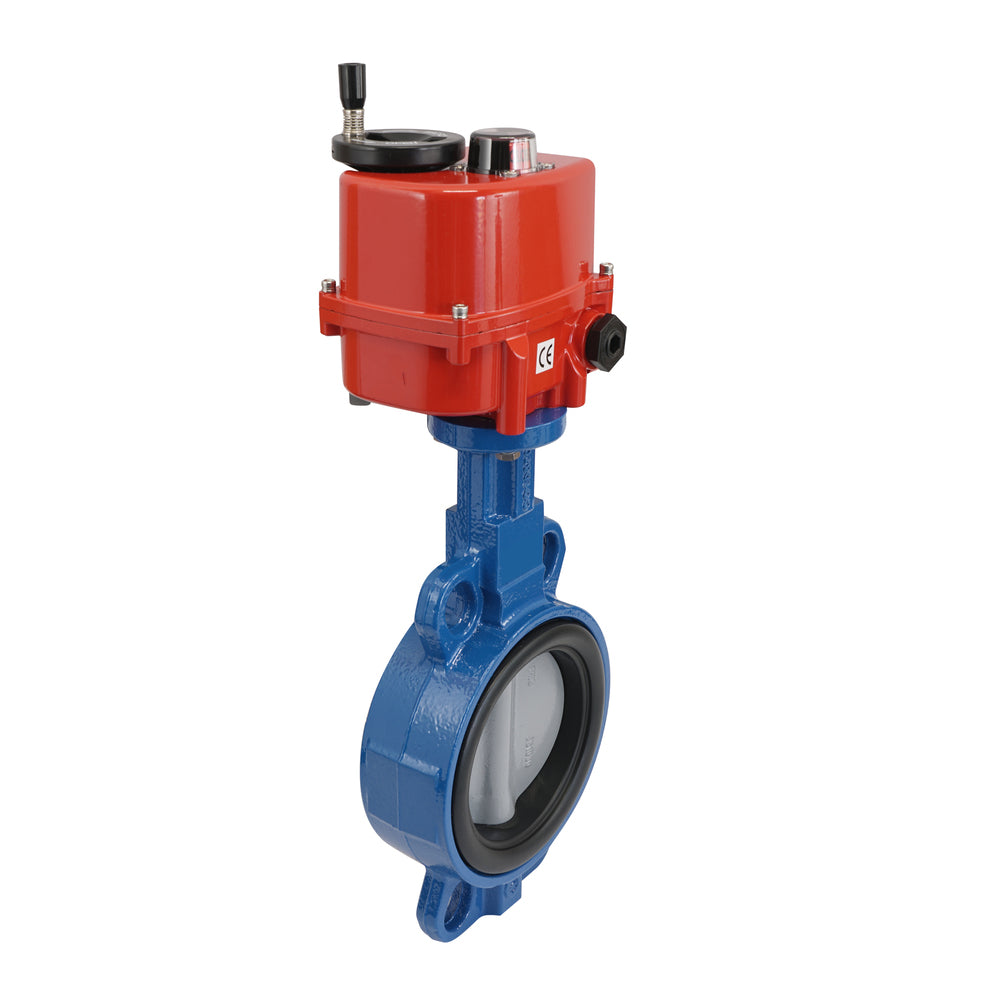

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

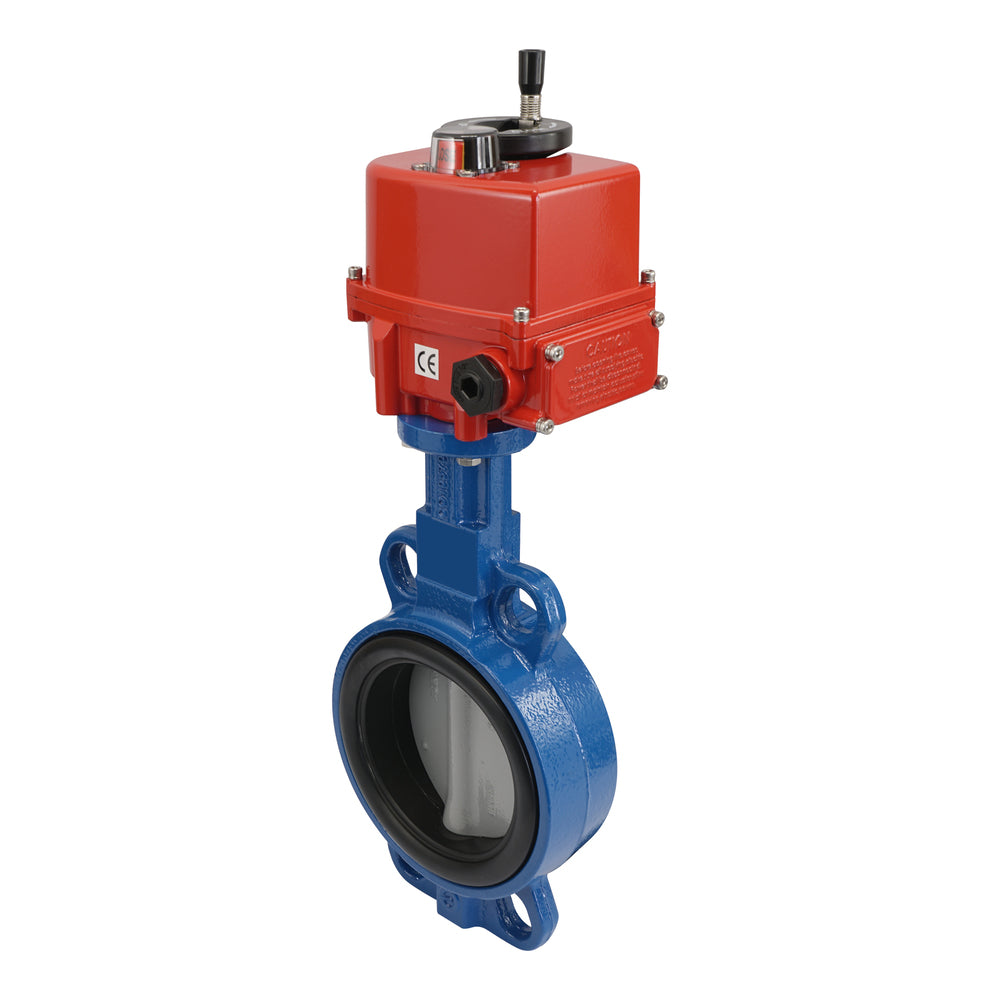

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5

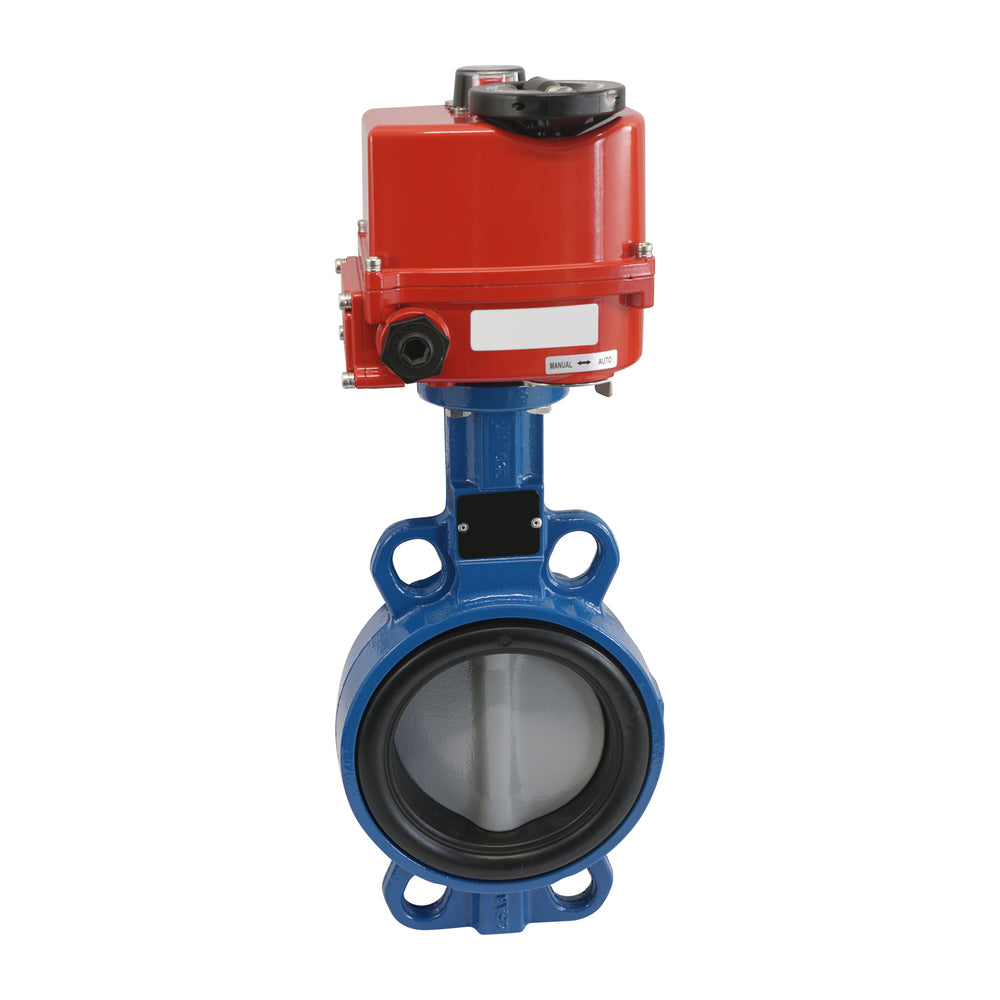

Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5
Electric Butterfly Valve DN50 24V AC/DC Lug GGG40 FKM AG5
Image may vary slightly
See specifications for accurate information.
Reference: V2SC2
Brand: Tameson
This electrical actuator is offered in combination with a cast iron butterfly valve. Actuator requires 24 V AC/DC to operate. The butterfly valve has
View all
Note: product cannot be returned
Regular price
£676.59
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads

This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 13 seconds. It requires a supply voltage of 24 V AC/DC has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a lug type flange for connecting it to the piping, a nominal diameter of DN 50, and is rated up to 6 bar (87.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an FKM seal. It is suitable for media temperatures between 5 and 180 °C (41 and 356 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -10 to 50 °C (14 and 122 °F).

Pros:

  • No risk of water hammer due to slow closing (13 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
