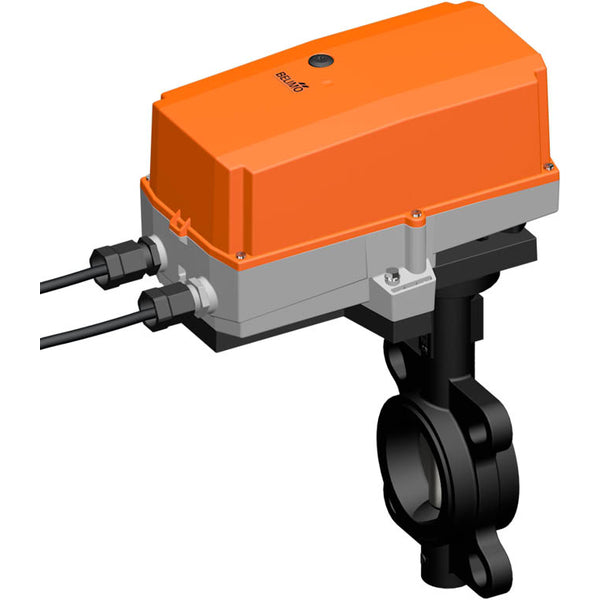

Belimo Butterfly Valve DN50/PN16 24VAC/DC 2&3-Point Wafer GGG40 EPDM IP67 ISO 5211 90s 20Nm D650N/SR24P-5
This cast iron (GGG40) Belimo butterfly valve is offered in combination with a two-point/three-point electrical actuator. Actuator requires 24 V AC/DC to operate. The butterfly valve has a nominal diameter of 52 mm, suitable for media temperatures between -20 and 120 °C (-4 and 248 °F), and max pressure of 16 bar (232 psi). Easily connected to your piping with a wafer type flange. The actuator has an IP67 degree of protection and is suitable for an environmental temperature of -30 to 50 °C (-22 and 122 °F).
- Regular price
- £670.64
Description

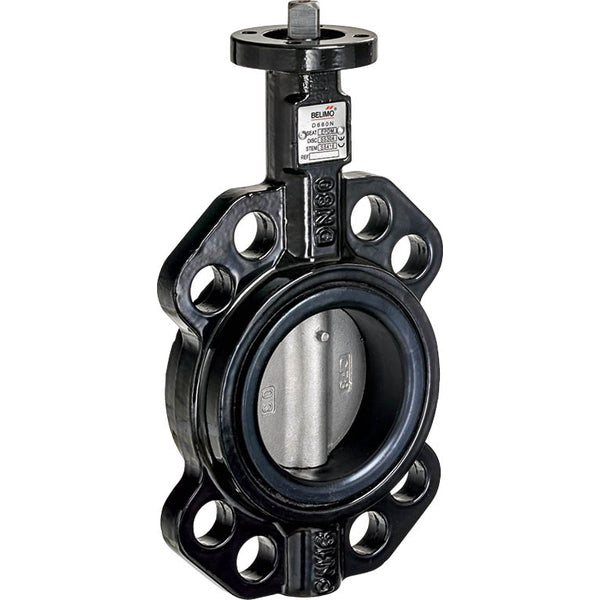

This Belimo butterfly valve is offered in combination with a two-point/three-point electrical actuator. The actuator can turn the valve from 0-90 degrees in a time of 90 seconds and requires a supply voltage of 24 V AC/DC. The electrical actuator comes with a visual positioning indicator to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 50, and is rated up to 16 bar (232 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, and an EPDM seal. The valve is suitable for media temperatures between -20 and 120 °C (-4 and 248 °F). The actuator has an IP67 degree of protection and is suitable for an environmental temperature of -30 to 50 °C (-22 and 122 °F). The actuator features two-point / three-point control. The actuator can be mounted on the valve via the ISO 5211 flange. Before connecting the actuator, please read the manual carefully.
The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the rotary or butterfly valve with a mounting flange. The mounting orientation relative to the valve can be selected in 90° increments. The rotation angle can be adjusted with mechanical end stops. The actuator is particularly suitable for challenging environments such as wood drying, animal breeding, food processing, agriculture, indoor swimming pools/bathhouses, rooftop ventilation plant rooms, and general outdoor applications. The actuator has passed various tests including the Noxious gas test EN 60068-2-60, Salt fog spray test EN 60068-2-52, Ammoniac test DIN 50916-2, Climate test IEC60068-2-30, Disinfectant (animals) test, and UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63. The housing cover must be removed for manual override.
Pros:
- No risk of water hammer due to slow closing (90 s)
- The components are interchangeable and can be replaced individually if needed
- High Kv-value because the fluid flows in a straight line
- Suitable for viscous media
