Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5

Notice: This product is discontinued and replaced by V2S9T

Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 EPDM AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 EPDM AG5
V2S9T £423.51
Discontinued
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 NBR AG5

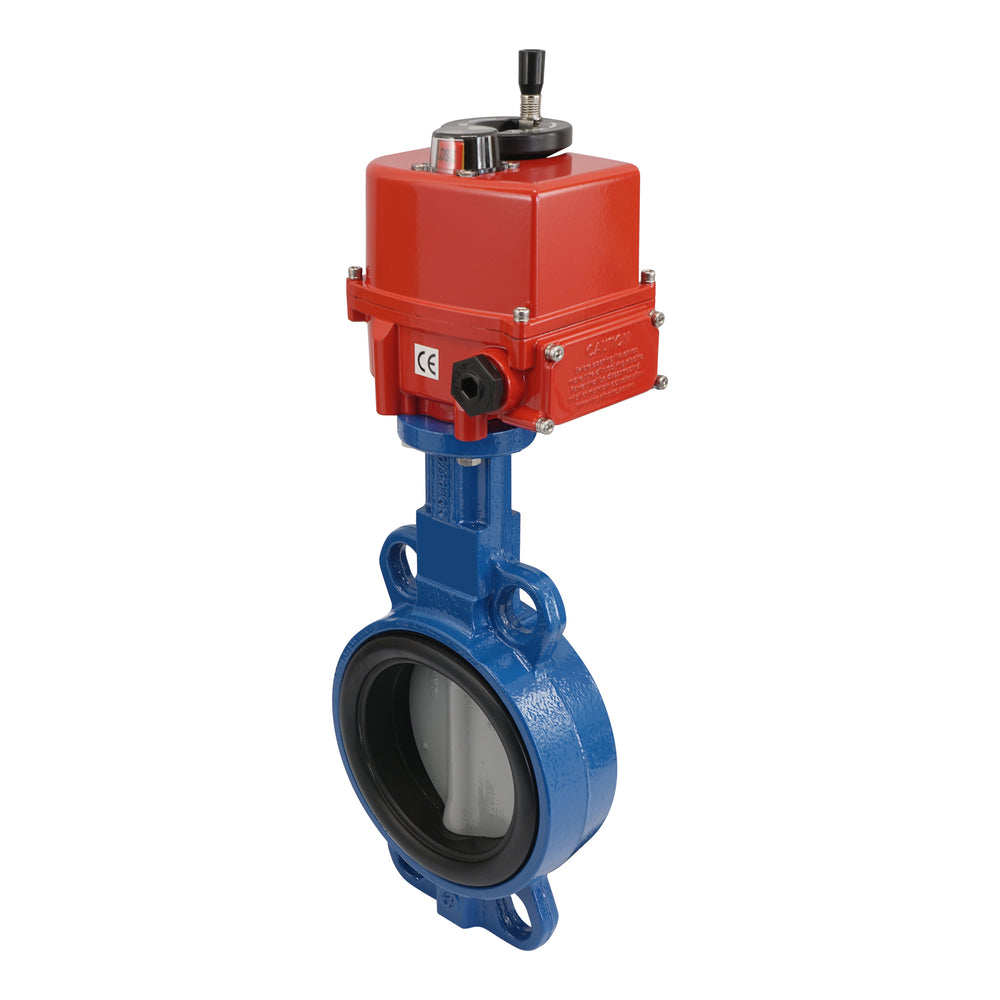

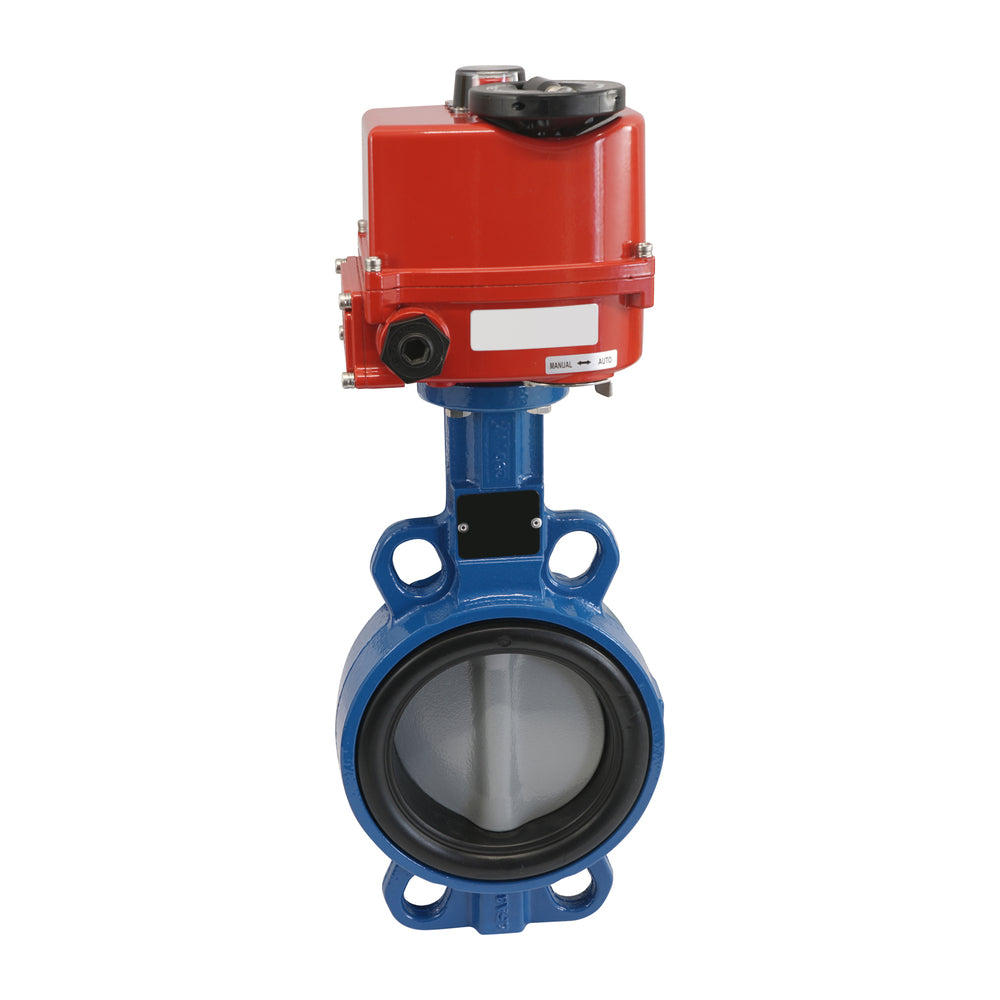

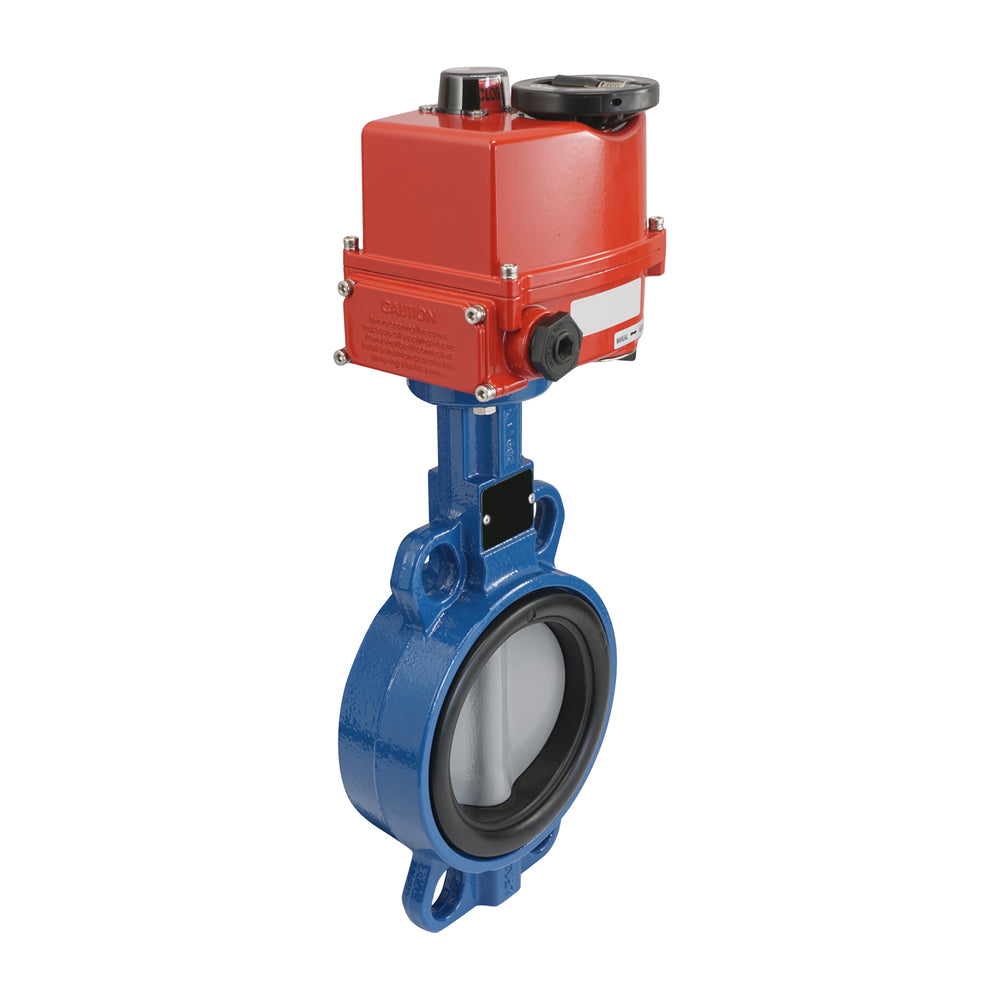

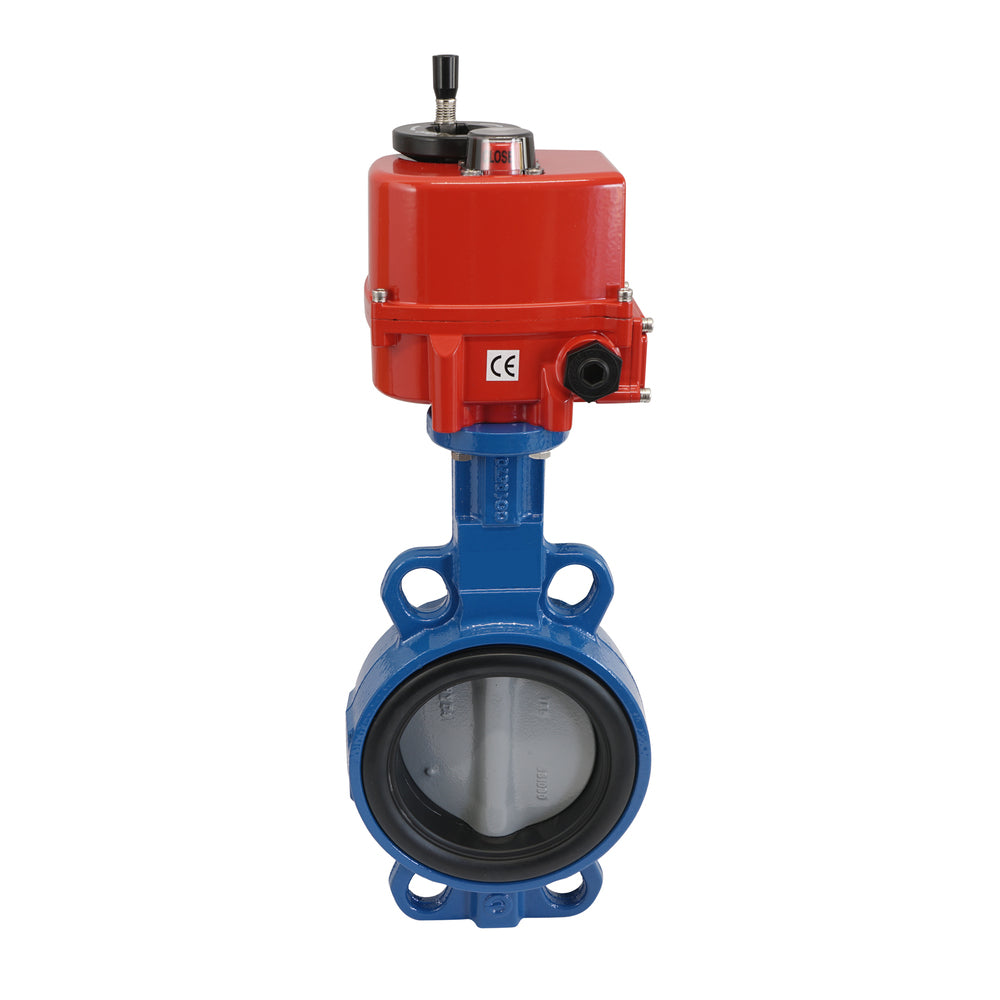

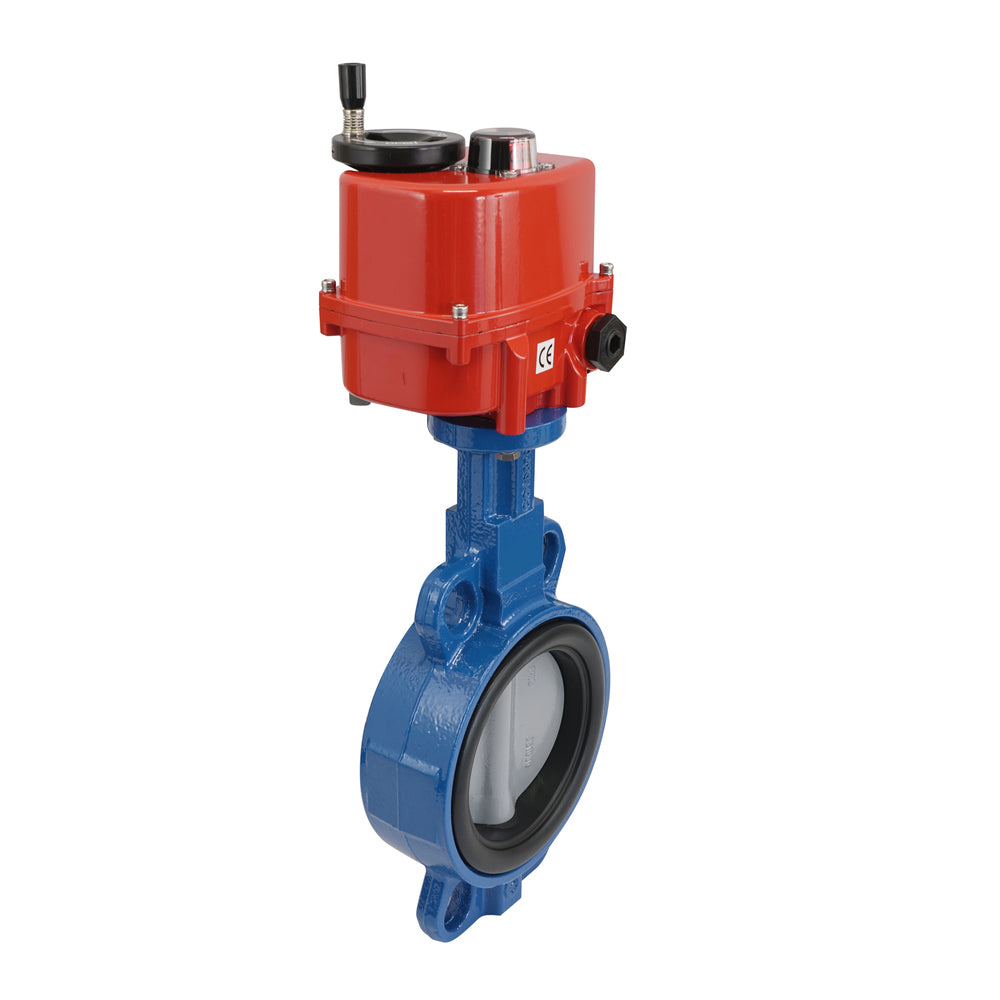

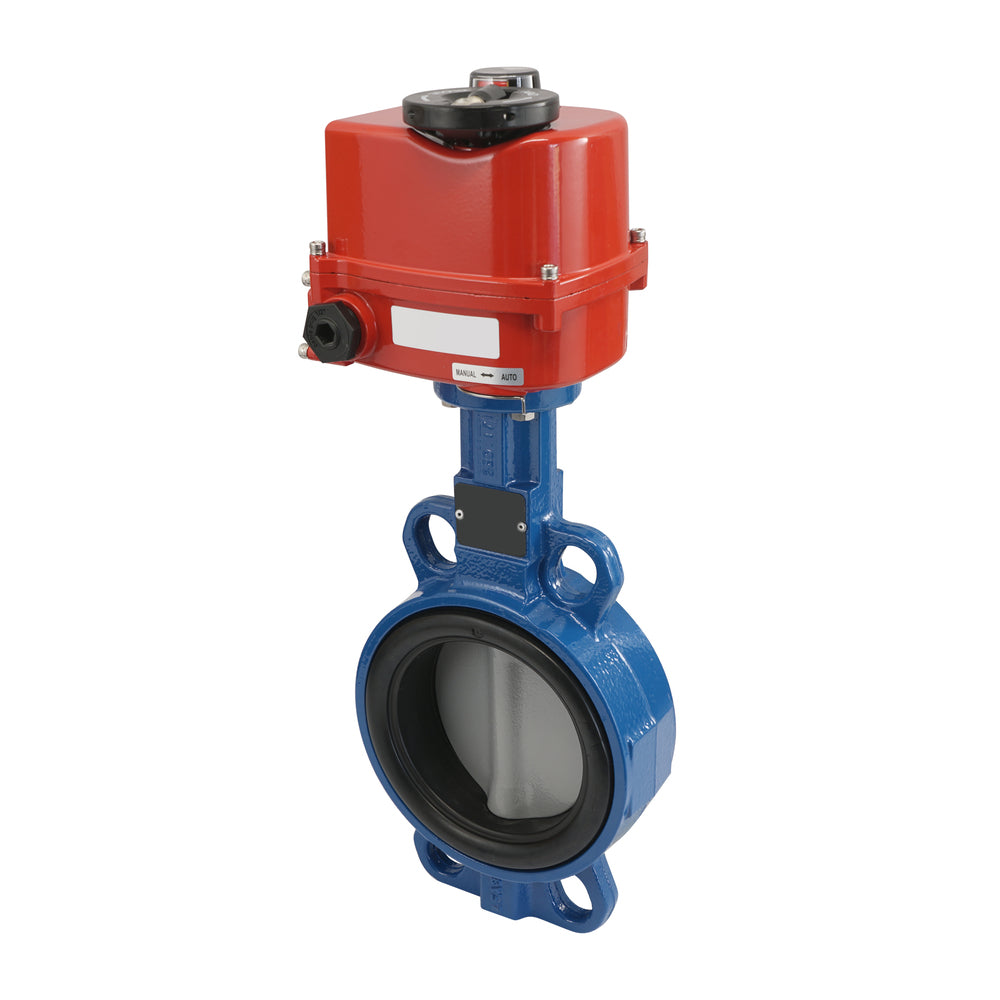

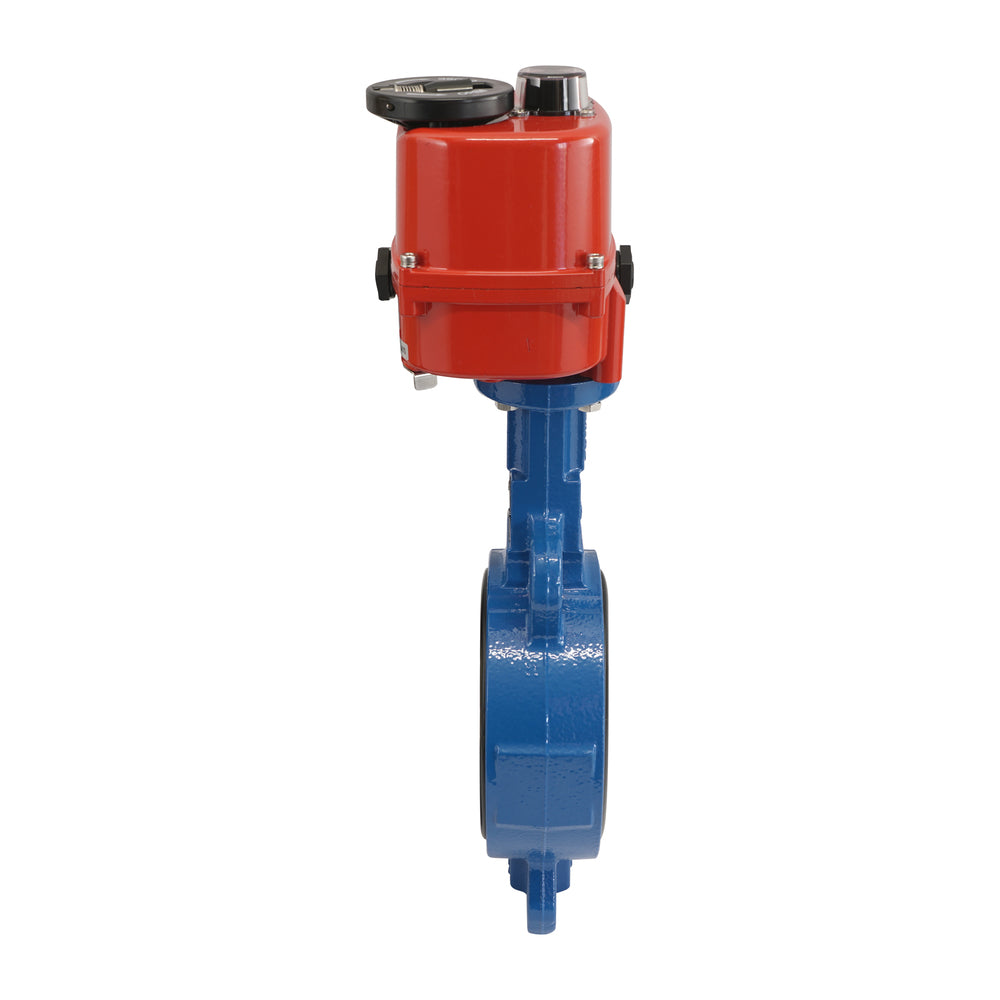

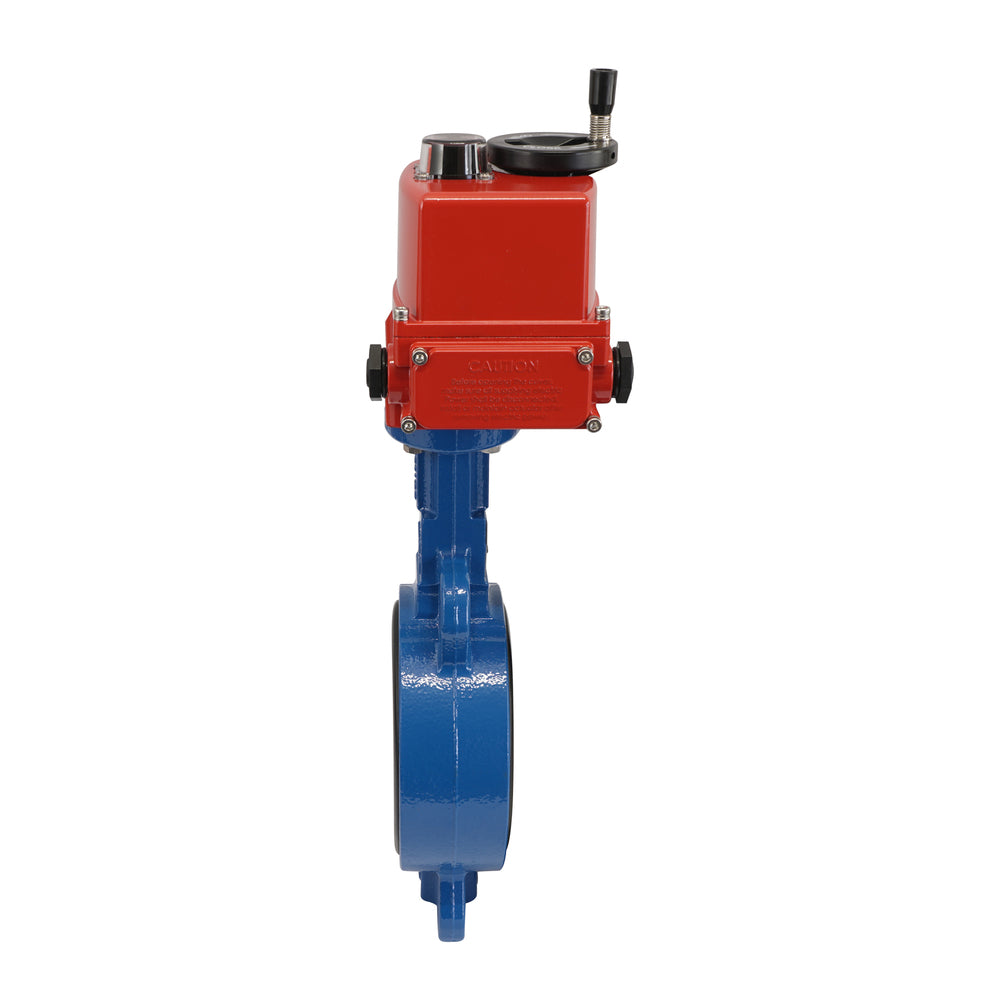

Image may vary slightly
See specifications for accurate information.
Reference: V2S9U
Brand: Tameson
This electrical actuator is offered in combination with a cast iron butterfly valve. Actuator requires 120-240 V AC/DC to operate. The butterfly valve
View all
Note: product cannot be returned

Notice: This product is discontinued and replaced by V2S9T

Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 EPDM AG5
Electric Butterfly Valve DN65 120-240V AC/DC Wafer GGG40 EPDM AG5
V2S9T £423.51
Description
Specifications
Downloads
Related products

Description

This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 13 seconds. It requires a supply voltage of 120-240 V AC/DC has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 65, and is rated up to 16 bar (232.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, GGG40 polyamide coated disc and an NBR seal. It is suitable for media temperatures between 5 and 85 °C (41 and 185 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -10 to 50 °C (14 and 122 °F).

Pros:

  • No risk of water hammer due to slow closing (13 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line

Downloads

Manual BFL
pdf
Download
Manual AG-5 (EN).pdf
pdf
Download

Specifications

Nominal inner diameter
DN 65
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
120 V AC, 230 V AC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Cast iron
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Operation
The way the valve works. For example via an electric actuator, a pinch wheel or a pneumatic actuator.
Electric motor
Connections
Wafer type
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Cast iron GGG 40
Control signal
Open / close control is for example 2-point (1 control signal) or 3-point (2 control signals). Position control is for example 4-20 mA (recommended), 0-10 V, 2-10 V or 0-5 V.
Three-point (open-close)
Max pressure difference at 20 °C (bar)
Maximum pressure difference between output and input at room temperature.
16
Position feedback
Open & close limit switch
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
85
Max pressure difference as end valve (bar)
16
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Duty cycle
S2 30min
Article compression class
PN 16
ISO 5211 Flange type
Standard flange design to mount an actuator, the size is expressed in F-xx. Note that not every valve is suitable to directly mount an actuator, sometimes an adapter is required.
Flange F05
ISO 5211 Square head size (mm)
Size of the valve's square head according to ISO 5211.
11
Bore (mm)
65
Disc material
Cast iron GGG 40
Temperature (°C)
-10 °C to 50 °C
Manual override
Yes
Operating time (s)
13
Max actuator torque (Nm)
The maximum rotary force that the actuator can deliver. Always choose a large safety factor, because the moment can increase strongly after (long) standstill or with dry media.
50
End contacts
2
Spindle material
Stainless steel
Material quality spindle
Stainless steel 420 (1.4034)
Spindle seal material
Teflon (PTFE)
Valve design
Centric
Regulation type on/off
No
