Electric Characterized Ball Valve Flange DN 65 Cast iron EPDM 63m3/h 16bar/232psi 24 V AC/DC

Electric Characterized Ball Valve Flange DN 65 Cast iron EPDM 63m3/h 16bar/232psi 24 V AC/DC
Electric Characterized Ball Valve Flange DN 65 Cast iron EPDM 63m3/h 16bar/232psi 24 V AC/DC
Electric Characterized Ball Valve Flange DN 65 Cast iron EPDM 63m3/h 16bar/232psi 24 V AC/DC
Image may vary slightly
See specifications for accurate information.
Reference: V3GED
Brand: Belimo
Mfr. Part: R6065W63-S8/SRF24A-S2-5-O

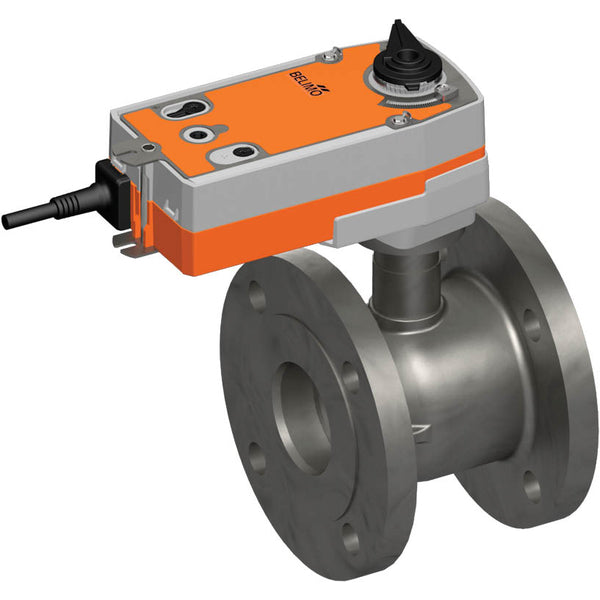

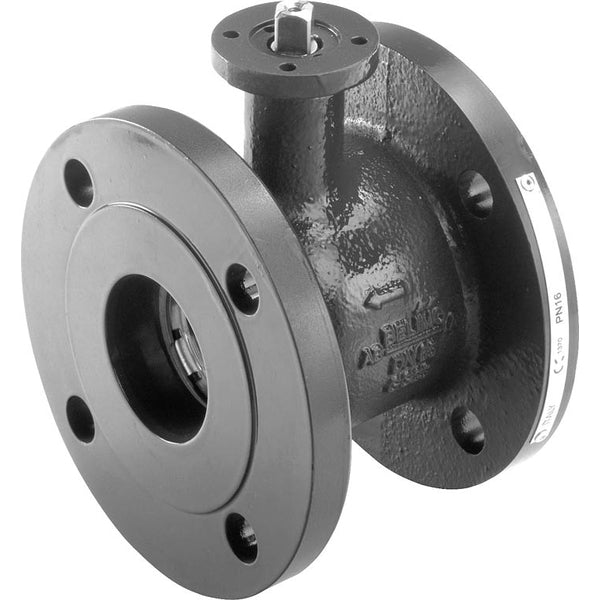

This is a 2-way characterized Belimo ball valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 72.89 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 75 seconds. The actuator can be mounted on the valve via the ISO 5211 flange. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NC) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£1345.26
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3GED, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 5 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way characterized Belimo ball valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 16 bar (232 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 63 m3/h, equivalent to a Cv-value of 72.89 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 75 seconds. The actuator can be mounted on the valve via the ISO 5211 flange. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NC) feature that ensures safe operation in the event of a power failure.

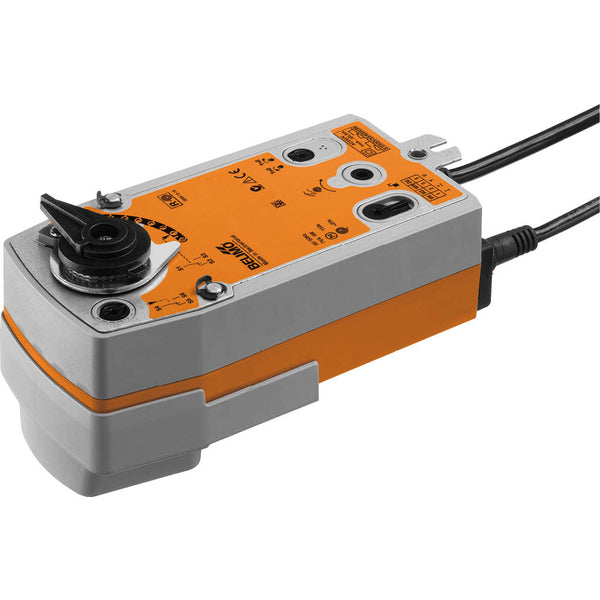

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. The valve can be manually operated and secured in any position using a hand crank. Unlocking can be done manually or automatically by applying the operating voltage. The actuator can be directly mounted on the rotary or butterfly valve with a mounting flange. The mounting orientation relative to the valve can be selected in 90° increments. The actuator connects with a standard 0-10 V control signal. The actuator moves the valve to the operating position while also tensioning the return spring. The valve returns to the fail-safe position by spring force when the supply voltage is interrupted. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • The integrated characterizing disc guarantees equal percentage flow control
  • The actuator is equipped with a fail-safe feature
