Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 16m3/h 25bar 24VAC/DC KNX 90s 10Nm IP54 R438/NR24A-KNX

Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 16m3/h 25bar 24VAC/DC KNX 90s 10Nm IP54 R438/NR24A-KNX
Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 16m3/h 25bar 24VAC/DC KNX 90s 10Nm IP54 R438/NR24A-KNX
Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 16m3/h 25bar 24VAC/DC KNX 90s 10Nm IP54 R438/NR24A-KNX
Image may vary slightly
See specifications for accurate information.
Reference: V3CXT
Brand: Belimo
Mfr. Part: R438/NR24A-KNX

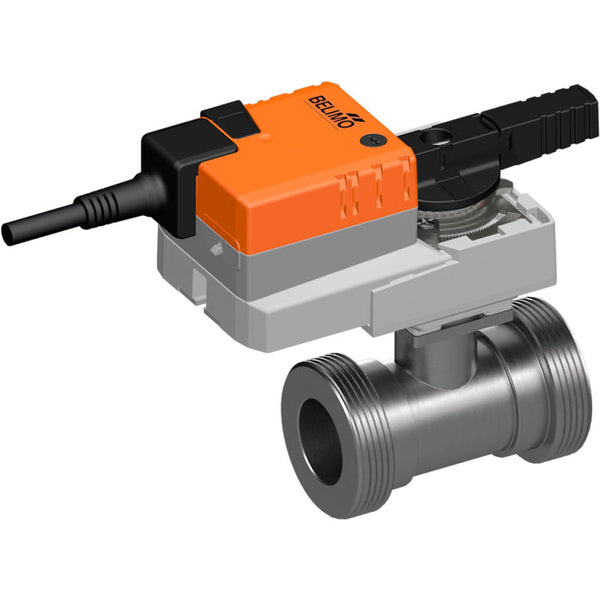

This is a 2-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 16 m3/h, equivalent to a Cv-value of 18.51 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with KNX (S-Mode) control, allowing for seamless integration and efficient management of connected devices in the system. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£620.21
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 16 m3/h, equivalent to a Cv-value of 18.51 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with KNX (S-Mode) control, allowing for seamless integration and efficient management of connected devices in the system. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

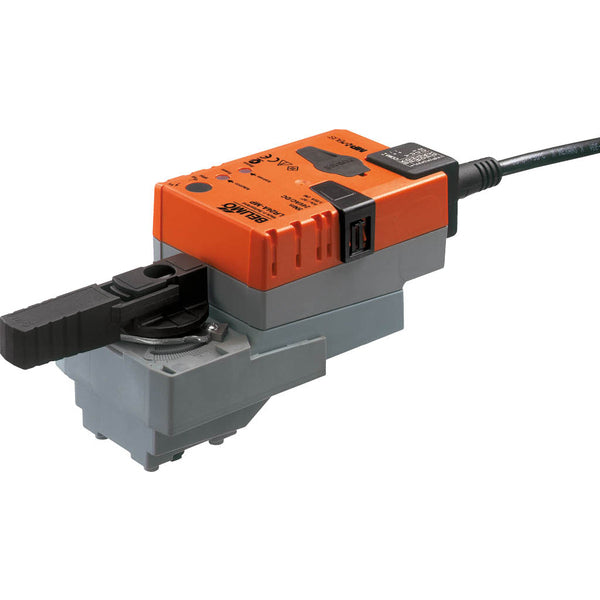

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is equipped with an integrated interface for KNX (S-Mode) and can connect with all KNX devices with available corresponding data points. The KNX application enables the use of the valve actuator with 2- and 3-way valves with one set point, as well as with 6-way valves in 4-pipe systems with two set points for heating and cooling. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
