Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 25m3/h 25bar 100-240VAC 90s 20Nm IP67 R439/SR230P

Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 25m3/h 25bar 100-240VAC 90s 20Nm IP67 R439/SR230P
Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 25m3/h 25bar 100-240VAC 90s 20Nm IP67 R439/SR230P
Characterized Ball Valve G2 1/4 Male Nickel-Plated Brass EPDM 25m3/h 25bar 100-240VAC 90s 20Nm IP67 R439/SR230P
Image may vary slightly
See specifications for accurate information.
Reference: V3D2Y
Brand: Belimo
Mfr. Part: R439/SR230P

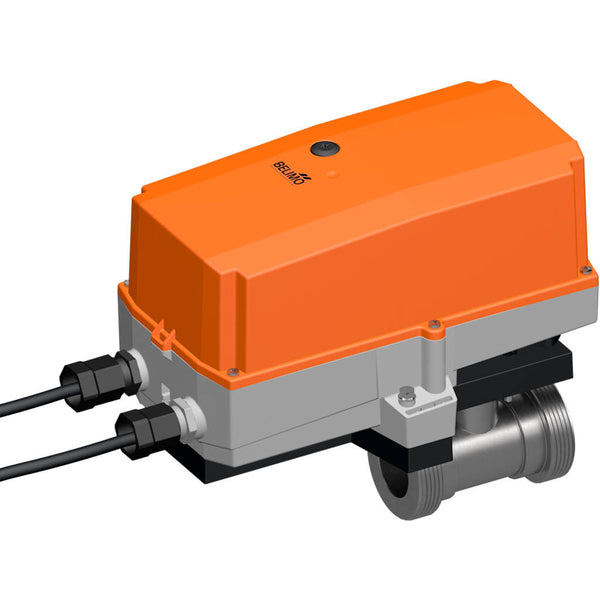

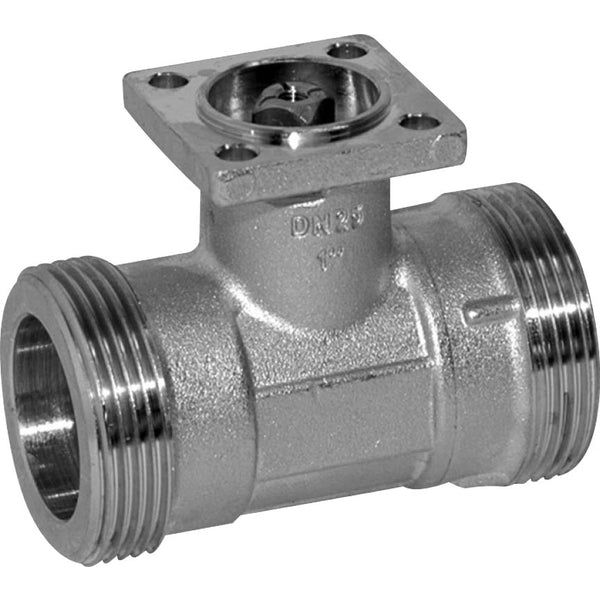

This is a 2-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

View all
Note: product cannot be returned
Regular price
£666.09
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3D2Y, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 6 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way characterized Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 6 and 100 °C (43 to 212 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

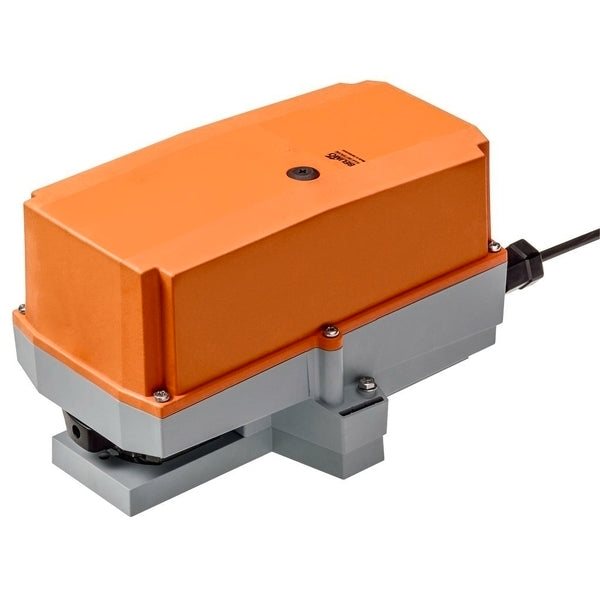

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops. The actuator is particularly suitable for challenging environments such as wood drying, animal breeding, food processing, agriculture, indoor swimming pools/bathhouses, rooftop ventilation plant rooms, and general outdoor applications. The actuator has passed various tests including the Noxious gas test EN 60068-2-60, Salt fog spray test EN 60068-2-52, Ammoniac test DIN 50916-2, Climate test IEC60068-2-30, Disinfectant (animals) test, and UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63. The housing cover must be removed for manual override.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
