Belimo Characterized Valve Rp1/2 Kvs1.2 100-240VAC 75s 2/3-point 1Nm IP40 C215Q-F/CQ230A

Belimo Characterized Valve Rp1/2 Kvs1.2 100-240VAC 75s 2/3-point 1Nm IP40 C215Q-F/CQ230A
Belimo Characterized Valve Rp1/2 Kvs1.2 100-240VAC 75s 2/3-point 1Nm IP40 C215Q-F/CQ230A
Belimo Characterized Valve Rp1/2 Kvs1.2 100-240VAC 75s 2/3-point 1Nm IP40 C215Q-F/CQ230A
Image may vary slightly
See specifications for accurate information.
Reference: V2W9Z
Brand: Belimo
Mfr. Part: C215Q-F/CQ230A

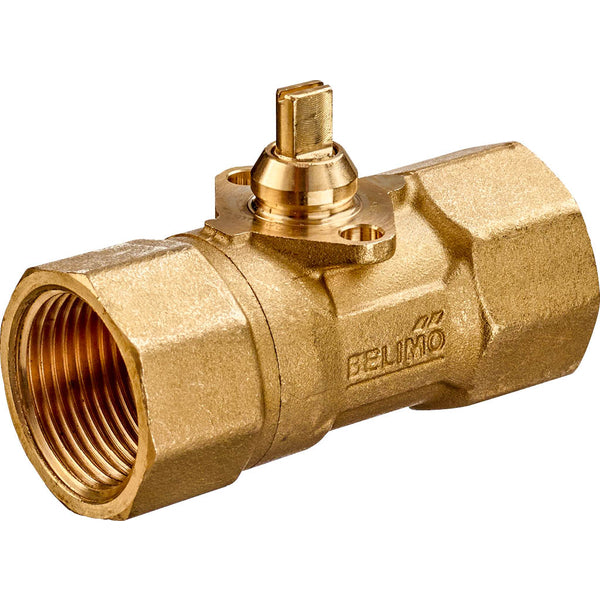

This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 1.2 m3/h, equivalent to a Cv-value of 1.39 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£112.59
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

This is a Belimo 2-way characterized ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 1.2 m3/h, equivalent to a Cv-value of 1.39 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate.

Pros:

  • The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
