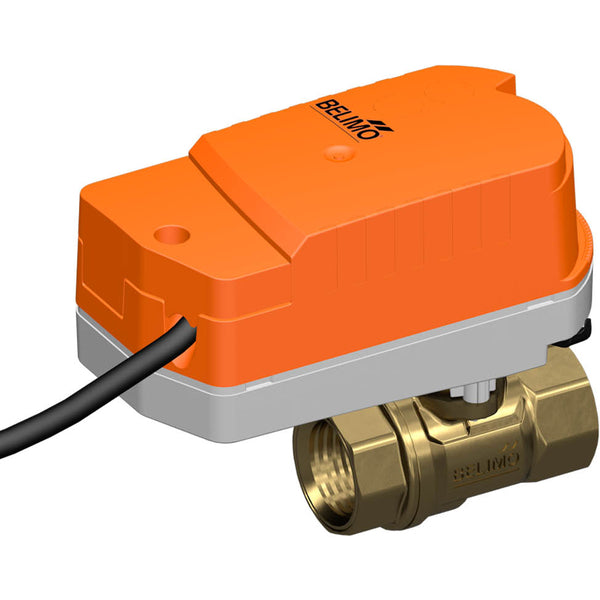

Electric Characterized Ball Valve Rp1/2'' Brass EPDM 1.2m3/h 25bar/362psi 24 V AC/DC

Image may vary slightly
See specifications for accurate information.
Reference: V2WAR
Brand: Belimo
Mfr. Part: C215Q-F/CQK24A-MPL

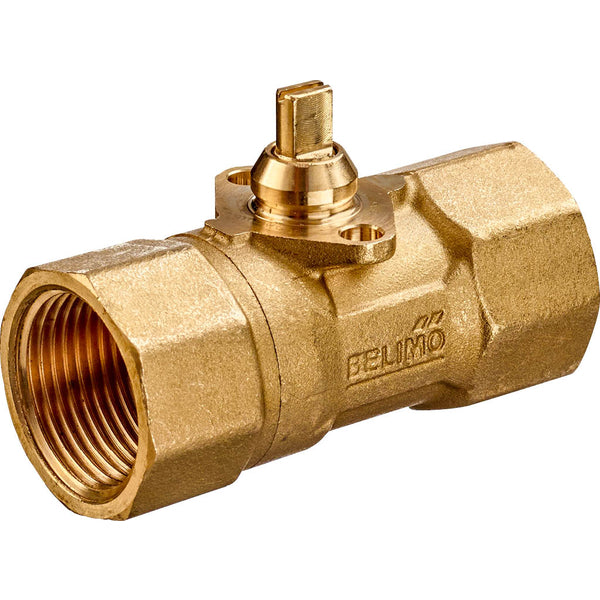

This is a 2-way characterized Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 1.2 m3/h, equivalent to a Cv-value of 1.39 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with MP-Bus control type, enabling seamless integration and efficient management of connected devices in the system, ensuring reliable control and communication capabilities. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£185.01
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V2WAR, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 19 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way characterized Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 1.2 m3/h, equivalent to a Cv-value of 1.39 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with MP-Bus control type, enabling seamless integration and efficient management of connected devices in the system, ensuring reliable control and communication capabilities. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

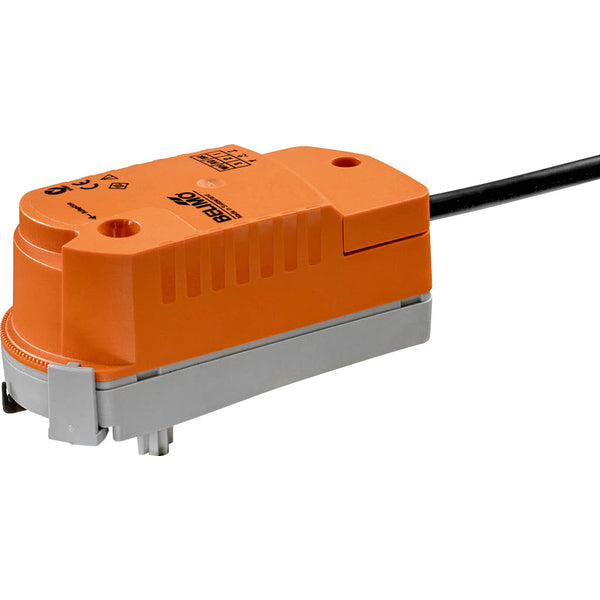

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate. The actuator gets its digital control signal from the superior controller via the MP-Bus and moves to the defined position. The MP connection serves as the communication interface and does not offer an analog measuring voltage. The capacitor actuators require a pre-charging period to bring the capacitors to a usable voltage level. This ensures that, in case of a power failure, the actuator can move from its current position into the fail-safe position at any time. After factory delivery, the actuator is fully discharged and requires approximately 25 seconds of pre-charging before the initial setup to elevate the capacitors to the necessary voltage level.

Pros:

  • The integrated characterizing disc guarantees equal percentage flow control
  • The actuator is equipped with a fail-safe feature
