Electric Characterized Ball Valve Rp3/4'' Brass EPDM 8m3/h 25bar/362psi 24 V AC/DC

Electric Characterized Ball Valve Rp3/4'' Brass EPDM 8m3/h 25bar/362psi 24 V AC/DC
Electric Characterized Ball Valve Rp3/4'' Brass EPDM 8m3/h 25bar/362psi 24 V AC/DC
Electric Characterized Ball Valve Rp3/4'' Brass EPDM 8m3/h 25bar/362psi 24 V AC/DC
Image may vary slightly
See specifications for accurate information.
Reference: V2WQQ
Brand: Belimo
Mfr. Part: C220Q-K/CQ24A-SZ

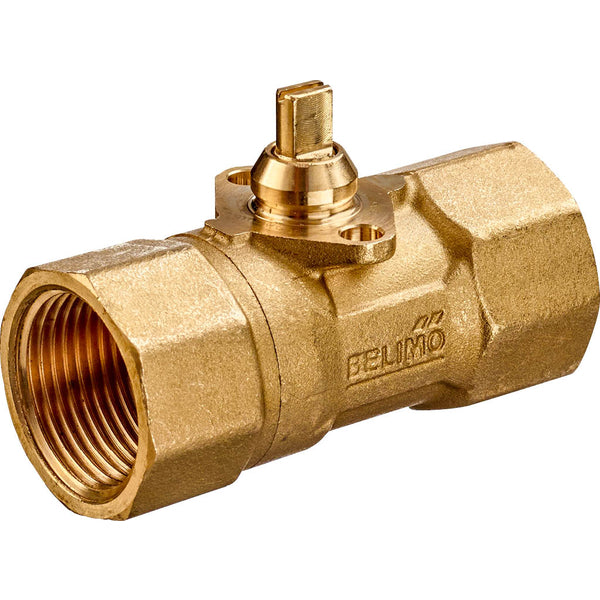

This is a 2-way characterized Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 8 m3/h, equivalent to a Cv-value of 9.26 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0.5-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£139.38
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V2WQQ, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 29 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way characterized Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 90 °C (36 to 194 °F). The Kv value of the valve is 8 m3/h, equivalent to a Cv-value of 9.26 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 75 seconds. The actuator has an IP40 rating.

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate. The actuator can be controlled with a standard control signal of 0-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators.

Pros:

  • The integrated characterizing disc guarantees equal percentage flow control
  • This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V
