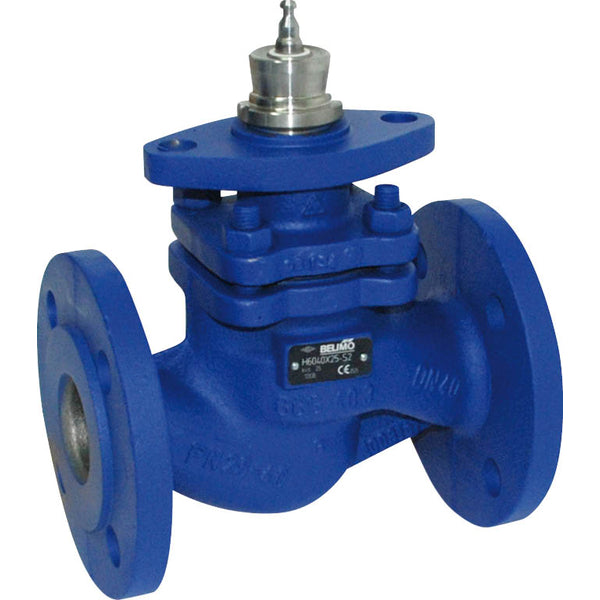

Belimo Globe Valve 15mm Flange DN50 Kvs25 24VAC/DC 150s BACnet 0-10/2-10V 500N IP54 H6050X25-S2/LV24A-MOD
This is a 2-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The valve cone's profile determines the equal percentage flow characteristic. The maximum pressure differential is 0.6 bar (8.7 psi). The valve can operate between 5 and 150 °C (41 to 302 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The valves's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and requires product ZTH EU for setting the protocol address and linking the actuator to the system. Furthermore, ZTH EU allows the setting of an analog 0-10V or 2-10V control signal. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.
- Regular price
- £1,085.42
Description
This is a 2-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 50 and the flange size is DN 50. The valve cone's profile determines the equal percentage flow characteristic. The maximum pressure differential is 0.6 bar (8.7 psi). The valve can operate between 5 and 150 °C (41 to 302 °F). The Kv value of the valve is 25 m3/h, equivalent to a Cv-value of 28.93 gpm. The valves's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V, ensuring accurate and responsive control in various applications. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator comes with an inbuilt interface for BACnet MSTP, Modbus RTU, and MP-Bus. It obtains the digital control signal from the control system and provides the present status. The default factory setting retracts the actuator stem. When shipping valve-actuator combinations, the motion direction is set based on the valve's closing point. When actuator activated, the stroke direction switch alters the running direction during normal operation.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V/2-10 V
