Belimo Globe Valve 15mm G2 Kvs16 24VAC/DC 150s 0-10V 1000N IP54 H432B/NV24A-SZ-TPC

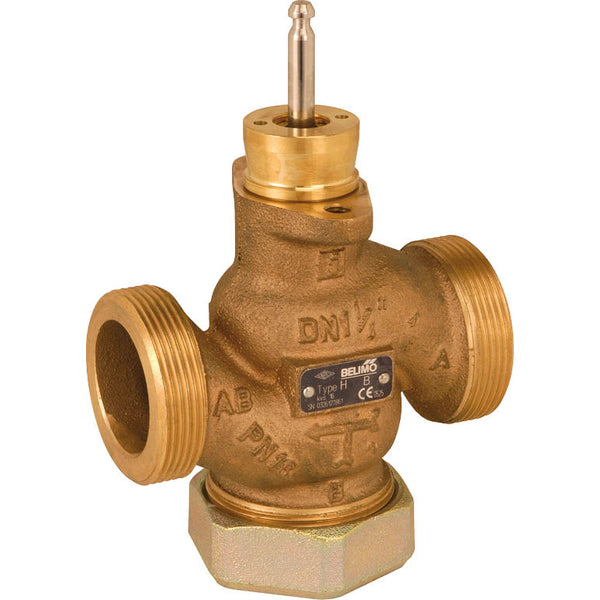

This is a 2-way globe valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is G 2 inch with male threads. The valve cone's profile determines the equal percentage flow characteristic. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 16 m3/h, equivalent to a Cv-value of 18.51 gpm. The valves's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.
- Regular price
- £551.89
Description
This is a 2-way globe valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is G 2 inch with male threads. The valve cone's profile determines the equal percentage flow characteristic. The maximum pressure differential is 4 bar (58 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 16 m3/h, equivalent to a Cv-value of 18.51 gpm. The valves's stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator can be controlled with a standard control signal of 0-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The default factory setting retracts the actuator stem. When shipping valve-actuator combinations, the motion direction is set based on the valve's closing point. When actuator activated, the stroke direction switch alters the running direction during normal operation.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V
