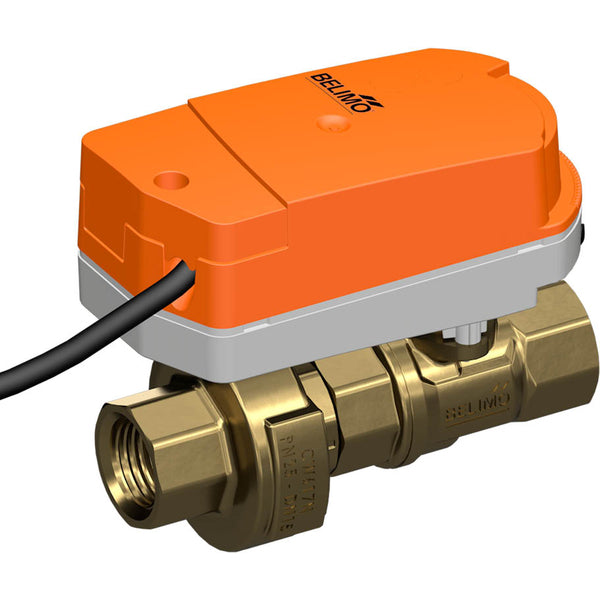

Electric PI Flow Limiter Valve Rp1/2'' Brass EPDM 0.29m3/h 100-240 V AC 25bar/362psi

Electric PI Flow Limiter Valve Rp1/2'' Brass EPDM 0.29m3/h 100-240 V AC 25bar/362psi
Electric PI Flow Limiter Valve Rp1/2'' Brass EPDM 0.29m3/h 100-240 V AC 25bar/362psi
Electric PI Flow Limiter Valve Rp1/2'' Brass EPDM 0.29m3/h 100-240 V AC 25bar/362psi
Image may vary slightly
See specifications for accurate information.
Reference: V2WBA
Brand: Belimo
Mfr. Part: C215QFL-C/CQD230A

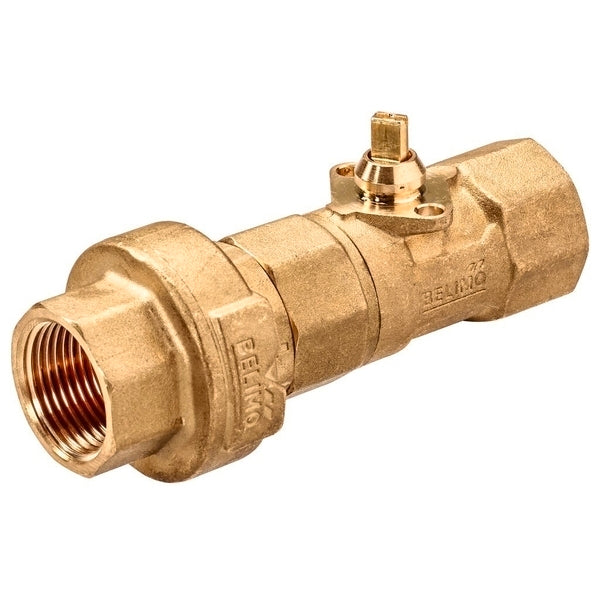

This is a 2-way electrically actuated pressure independent flow limiter valve (PIFLV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The built-in flow limiter maintains a constant flow volume and steady control even with pressure variations at a 90° angle. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 60 °C (36 to 140 °F). The Kv value of the valve is 0.29 m3/h, equivalent to a Cv-value of 0.34 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point / three-point control. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The actuator has an IP40 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

View all
Note: product cannot be returned
Regular price
£178.65
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V2WBA, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 25 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way electrically actuated pressure independent flow limiter valve (PIFLV) with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The built-in flow limiter maintains a constant flow volume and steady control even with pressure variations at a 90° angle. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between 2 and 60 °C (36 to 140 °F). The Kv value of the valve is 0.29 m3/h, equivalent to a Cv-value of 0.34 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point / three-point control. The installation of Belimo ZoneTight actuators on this valve is easy - it's as simple as clicking it into place. The actuator has an IP40 protection rating. The direction of flow, indicated by an arrow on the housing, is of utmost importance to prevent damage to the ball valve.

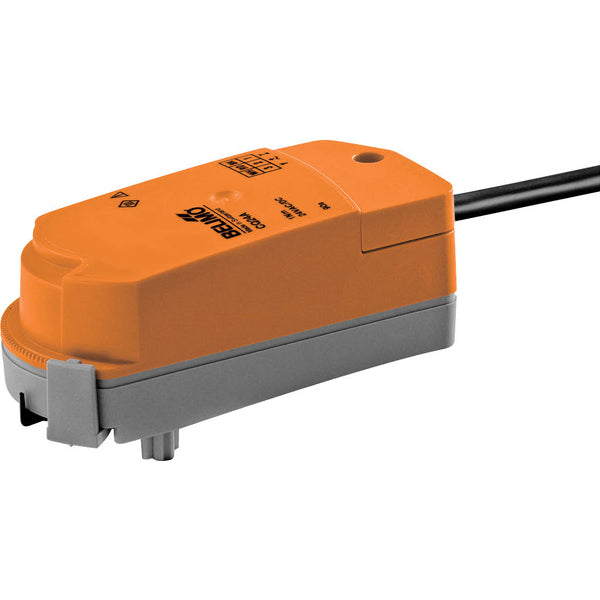

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate.

Pros:

  • Very easy installation of Belimo ZoneTight actuators, just click and done
  • No need for time-consuming manual hydronic system adjustment anymore
  • Water quantity remains constant despite pressure changes
  • The valve doesn't "stick" due to reliable ball valve technology
  • Resistant to contamination

Series:

The Belimo PIFL series features a 2-way PI flow limiter valve with an internal thread, specifically designed for closed cold water systems. This valve series is ideal for water-side on/off control of fan coil and cooling ceilings. With its robust and straightforward functionality, it ensures reliable and efficient operation. The series aims to provide precision control and longevity, making it a suitable choice for various applications. These valves display Belimo's commitment to quality and performance, offering functionality that can adapt to diverse cooling system needs.
