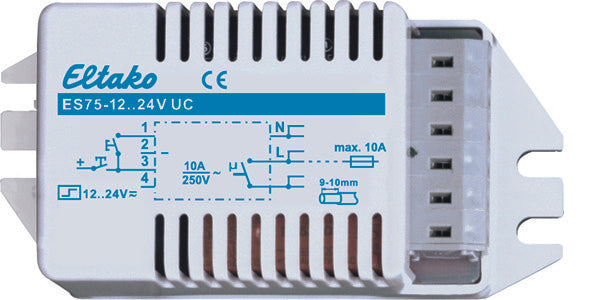

Eltako Bistable Relay - 60100055

Eltako Bistable Relay - 60100055
Eltako Bistable Relay - 60100055
Image may vary slightly
See specifications for accurate information.
Reference: E2J2T
Brand: Eltako
Mfr. Part: 60100055

This impulse relay from Eltako's ES75 series features one non-potential free make contact (NO) and is suitable for incandescent and halogen lamps up to 500W, fluorescent lamps in DUO switching up to 1000W and fluorescent lamps with parallel compensation 300W. In addition, the impulse relay has an integrated transformer for galvanic separation between the control circuits and the switching circuits, making this relay compliant with low voltage requirements. Furthermore, the impulse relay has a control voltage of 12-24V, a standby loss of 1W and a current rating of 10A.

View all
£54.76
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 52 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This impulse relay from Eltako's ES75 series features one non-potential free make contact (NO) and is suitable for incandescent and halogen lamps up to 500W, fluorescent lamps in DUO switching up to 1000W and fluorescent lamps with parallel compensation 300W. In addition, the impulse relay has an integrated transformer for galvanic separation between the control circuits and the switching circuits, making this relay compliant with low voltage requirements. Furthermore, the impulse relay has a control voltage of 12-24V, a standby loss of 1W and a current rating of 10A.

Downloads

Specifications

Function
Other
Mounting method
Other
Width in number of modular spacings
2.22
Built-in depth (mm)
28
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
12 V to 24 V
Type of control voltage 1
AC/DC
Rated switch current (A)
10
Supply voltage (V)
250 V to 250 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
500
Max. load fluorescent lamp (Duo circuit) (VA)
1000
Manual override
No
