Eltako ES Bistable Relay - 61100501

Eltako ES Bistable Relay - 61100501
Eltako ES Bistable Relay - 61100501

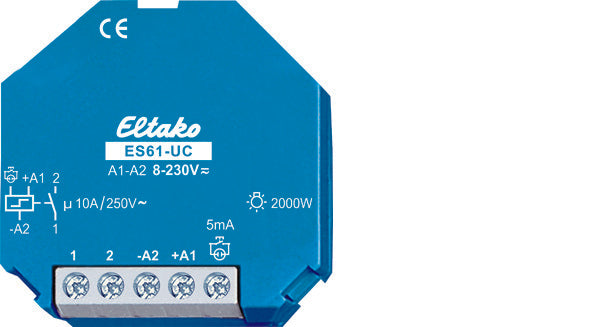

Image may vary slightly
See specifications for accurate information.
Reference: E2MXV
Brand: Eltako
Mfr. Part: 61100501

This impulse relay from Eltako's ES61 series features one potential-free make contact (NO) and is suitable for incandescent lamps up to 2000W. By using bi-stable relays, there are no coil losses when energized and therefore no heat generation. In addition, the impulse relay has a control voltage of 8-230V, no standby loss, a current rating of 10A and very low switching noise. State-of-the-art hybrid technology provides wear-free electronic control with high switching power from a dedicated relay.

View all
£51.84
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This impulse relay from Eltako's ES61 series features one potential-free make contact (NO) and is suitable for incandescent lamps up to 2000W. By using bi-stable relays, there are no coil losses when energized and therefore no heat generation. In addition, the impulse relay has a control voltage of 8-230V, no standby loss, a current rating of 10A and very low switching noise. State-of-the-art hybrid technology provides wear-free electronic control with high switching power from a dedicated relay.

Downloads

Specifications

Function
Other
Mounting method
Other
Width in number of modular spacings
3.1
Built-in depth (mm)
18
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
8 V to 230 V
Type of control voltage 1
AC/DC
Control voltage 2 (V)
230 V to 230 V
Type of control voltage 2
AC
Rated switch current (A)
10
Supply voltage (V)
250 V to 250 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2000
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
1000
Max. load fluorescent lamp (parallel compensated) (VA)
500
Max. switching current (cos phi = 0.6) (A)
4
Manual override
No
