Eltako S12 Bistable Relay - 21200020

Eltako S12 Bistable Relay - 21200020
Eltako S12 Bistable Relay - 21200020
Image may vary slightly
See specifications for accurate information.
Reference: E2J2X
Brand: Eltako
Mfr. Part: 21200020

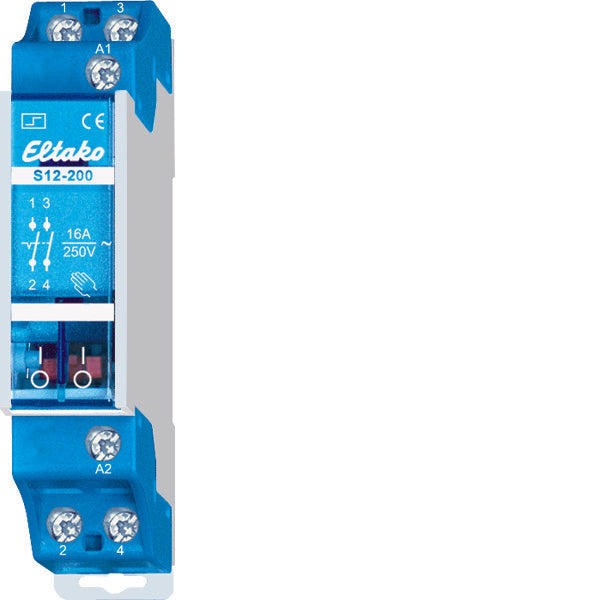

Eltako S12 impulse relay S12-200-24V AC. Reliability, durability and creativity are some keywords that describe Eltako. Eltako's 68 years of experience have led to the development of innovative products for building installation and control technology. Eltako offers dimmers, time relays, switching relays, impulse relays and torque relays, among others. Eltako's electronic impulse relays are also known as the silent revolution and can be used, as the name implies, using a pulse.

View all
£31.05
excl VAT
In stock Ships in 39d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 41 - 43 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Eltako S12 impulse relay S12-200-24V AC. Reliability, durability and creativity are some keywords that describe Eltako. Eltako's 68 years of experience have led to the development of innovative products for building installation and control technology. Eltako offers dimmers, time relays, switching relays, impulse relays and torque relays, among others. Eltako's electronic impulse relays are also known as the silent revolution and can be used, as the name implies, using a pulse.

Specifications

Function
Other
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
55
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
24 V to 24 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 50 Hz
Rated switch current (A)
16
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2300
Max. load fluorescent lamp (VA)
2300
Max. load fluorescent lamp (Duo circuit) (VA)
2300
Max. load fluorescent lamp (parallel compensated) (VA)
500
Max. switching current (cos phi = 0.6) (A)
10
Manual override
Yes
