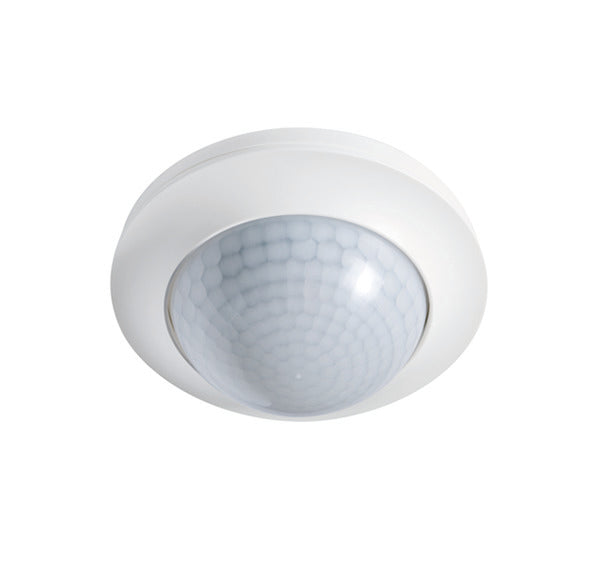

ESYLUX Compact Motion Switch (Complete) - EP10055317
This COMPACT series motion detector from ESYLUX is a motion-responsive detector with a 360° detection angle, a range of approximately 11/24 meters (frontal/cross). Perfect for classrooms, offices, meeting rooms and transit areas with low levels of natural light. The motion detector is only suitable for ceiling mounting (optimally at a height of 3 meters, maximum 10 meters). The higher you hang the motion detector, the greater the range, only the sensitivity also decreases. With the motion detector, your lights will not have to be left on unnecessarily and you will save electricity.
- Regular price
- £114.37
Description
Motion detector with a 360° field of detection is ideal for ceiling mounting. It has a large range of up to 24 m in diameter at a recommended installation height of 3 m, making it suitable for a variety of uses.
The device is equipped with a 16 A high-performance relay, ideal for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps.
This detector is ideal for use in areas with ceilings of up to 10 m, such as sports halls, warehouses etc. It provides automatic lighting control for use without, or with very little, natural light. Programming is simple using remote control with blue mode technology or setting elements.
There's an integrated toggle for setting with remote control or by adjusting the controller which prevents operating errors and provides tamper protection. Default settings ensure immediate operability. Interference sources can be masked by reducing sensitivity using DIP switches. An additional switch input with a toggle function is also provided.
The device comes flush-mounted as standard. It can be surface mounted or recessed ceiling mounted with accessories. The cover and design ring are easily replaceable and paintable. It features a large wiring space due to the shallow installation depth of the power box. The device allows for quick and simple connection with plug-in terminals.
The field of detection can be extended with the parallel connection of a maximum of 8 detectors. Areas can be specifically masked out by means of an enclosed lens mask.
