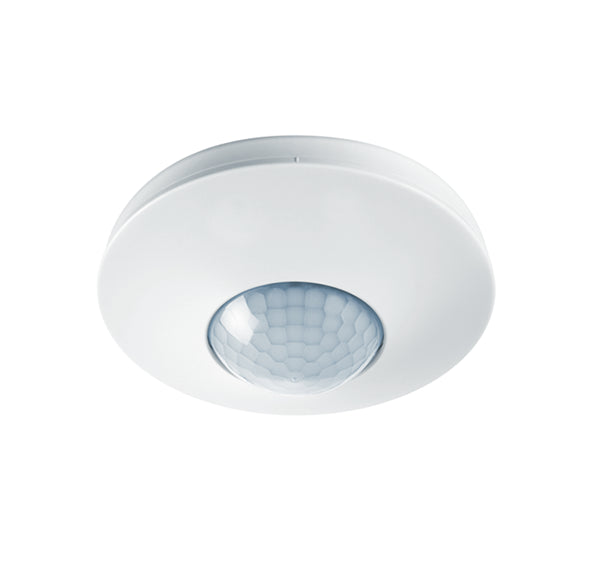

ESYLUX Compact Motion Switch (Complete) - EP10425042
This motion detector from ESYLUX's COMPACT series is a presence sensor that responds to light and heat sources, with a 360° detection angle, a range of approximately 6/8 meters (frontal/cross). Perfect for small spaces and transit areas with natural light. The motion detector is only suitable for ceiling mounting (optimally at a height of 3 meters, maximum 5 meters). The higher you hang the motion detector, the greater the range, only the sensitivity also decreases.
- Regular price
- £123.53
Description
The presence detector with a 360° field of detection for ceiling mounting is available. It has a range of up to 8 m in diameter at a recommended installation height of 3 m (maximum height 5 m). It is suitable for use in small rooms and passageways with natural lighting. An additional floating HVAC switch contact (channel 2) is provided for controlling heating, ventilation, and air conditioning based on presence.
The device also includes a 16 A high-performance relay (tungsten pre-contact) which is ideal for switching capacitive loads such as:
- Electronic ballasts
- Parallel-compensated fluorescent lamps
- Compact fluorescent lamps
- Energy-saving lamps
Default settings ensure immediate operability. It can be programmed simply using remote control with 'blue mode' technology or setting elements. An integrated toggle for setting with remote control or by adjusting the controller is also included, which helps prevent operating errors and provides tamper protection. Interference sources can be masked by reducing sensitivity using DIP switches. The detector also comes with an additional switch input with toggle function 'room = ON + OFF/hallway = ON'. It can be used as a fully automatic or semi-automatic device (channel 1).
The device is typically flush-mounted. It can be either surface mounted or recessed ceiling mounted with accessories. Its cover and design ring are easily replaceable and paintable (available in silver as an accessory). The field of detection can be extended by connecting slave devices. Areas can be masked out specifically using an enclosed lens mask.
