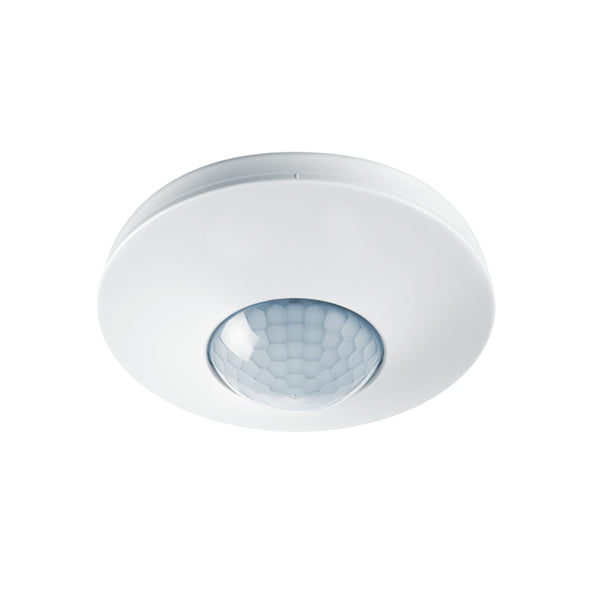

ESYLUX Compact Motion Switch (Complete) - EP10426711
Notice: This product will be discontinued in the future
This motion detector from the COMPACT series from ESYLUX is a presence sensor with dimming function that responds to light and heat sources, with a 360° detection angle, a range of approximately 6/8 meters (frontal/cross). Perfect for small spaces and transit areas with natural light. The motion detector is only suitable for ceiling mounting (optimally at a height of 3 meters, maximum 5 meters). The higher you hang the motion detector, the greater the range, only the sensitivity also decreases.
Notice: This product will be discontinued in the future
Description
Presence detector with a 360° field of detection for ceiling mounting. It has a range of up to 8 m in diameter at a recommended installation height of 3 m, with a maximum mounting height of 5 m.
This device provides automatic light control to a constant brightness level depending on presence and natural light. It uses a 1 - 10 V DC interface. The detector has a 16 A high-performance relay, which is ideal for switching capacitive loads such as:
- Electronic ballasts
- Parallel-compensated fluorescent lamps
- Compact fluorescent lamps
- Energy-saving lamps
Default settings ensure immediate operability. Programming can be simplified using remote control with 'blue mode' technology or setting elements. The detector also has an integrated toggle for setting with remote control or by adjusting the controller. This feature prevents operating errors and provides tamper protection.
The sensitivity of the device can be reduced by masking interference sources using DIP switches. It also has an additional switch input with a toggle function. The detector can be used as a fully automatic or semi-automatic device. After the time setting expires, the luminous efficiency is reduced to 10% for use as an orientation light for hallways and passageways.
The device comes with a built-in switch-off warning. It is a flush-mounted device as standard. It can be surface-mounted or recessed ceiling-mounted with accessories. The device has an easily replaceable or paintable cover and design ring. The field of detection can be extended by connecting slave devices. Areas can be masked out as needed using the included lens mask.
