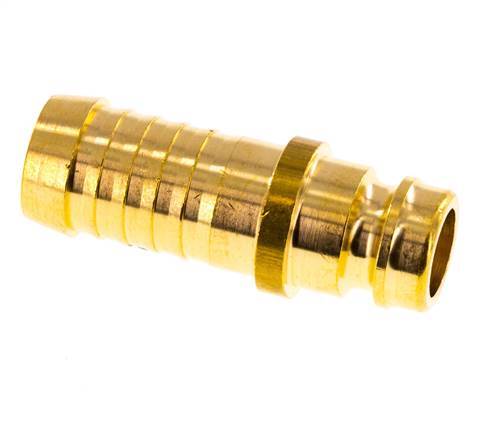

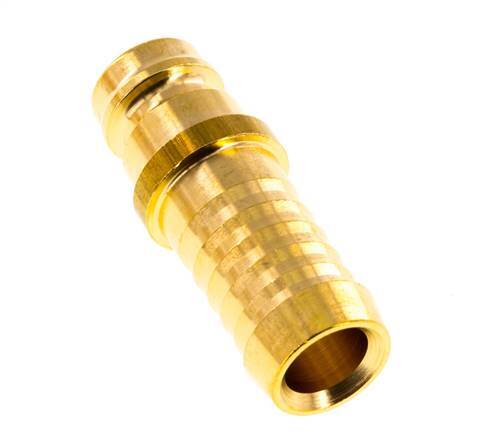

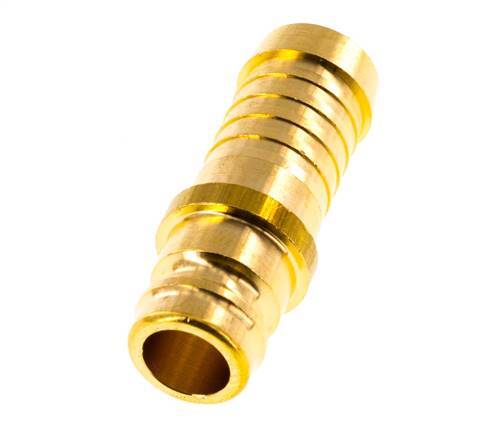

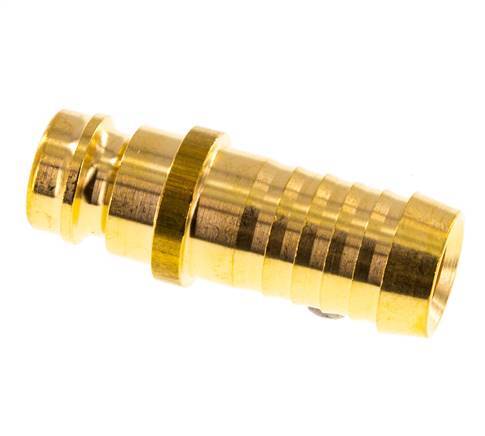

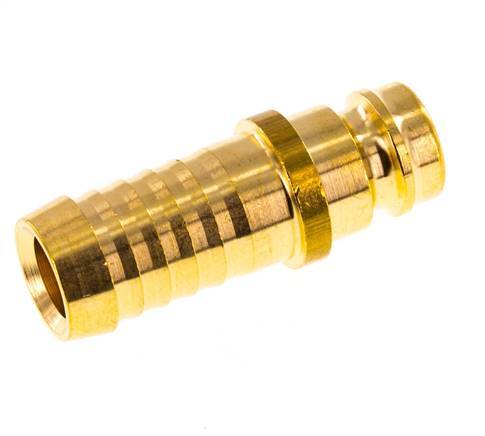

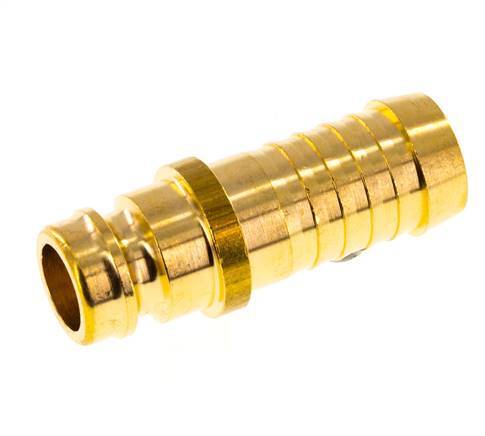

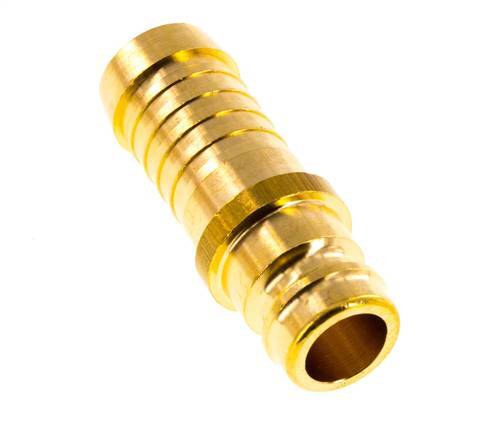

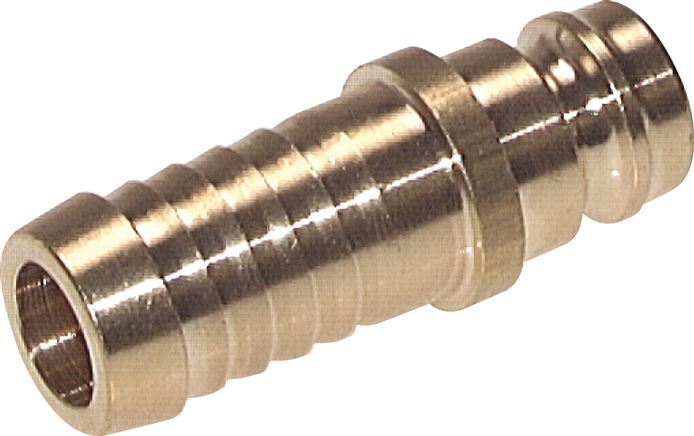

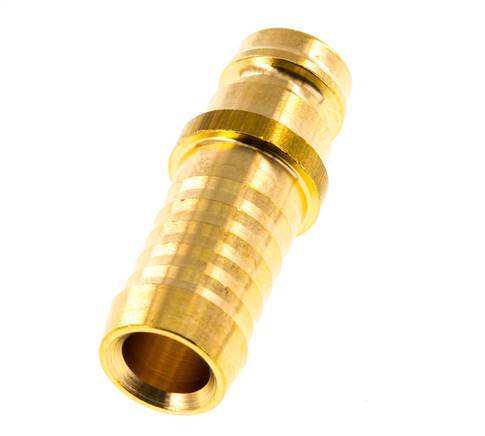

Brass DN 9 Mold Coupling Plug 13 mm Hose Pillar [5 Pieces]

Brass DN 9 Mold Coupling Plug 13 mm Hose Pillar [5 Pieces]
Brass DN 9 Mold Coupling Plug 13 mm Hose Pillar [5 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: F2243-X5
Brand: Tameson

Brass DN 9 mold coupling plug with 13 mm hose pillar. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F).

Contains 5 pieces

View all
£8.05
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 143 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Brass DN 9 mold coupling plug. They are typically used for liquid lines to quickly connect and disconnect secure connections.

Easily mount a hose over the 13 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

  • Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Downloads

Specifications

Hose pillar connection (mm)
Size of the hose pillar connection port.
13
Nominal diameter (mm)
9
Plug diameter
13 mm
Connection type
Hose pillar
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
FKM (FPM)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
15
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
160
Min pressure (bar)
0
Compatible models
Hasco Z83/13
Shape
Plug (male)
With dust cap
No
Sleeve material
Brass
