Reference: F2273-X2
Brand: Tameson

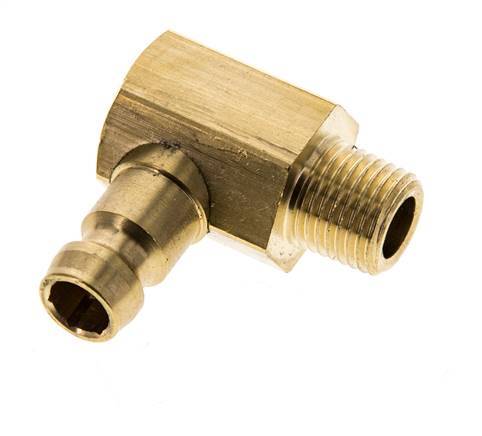

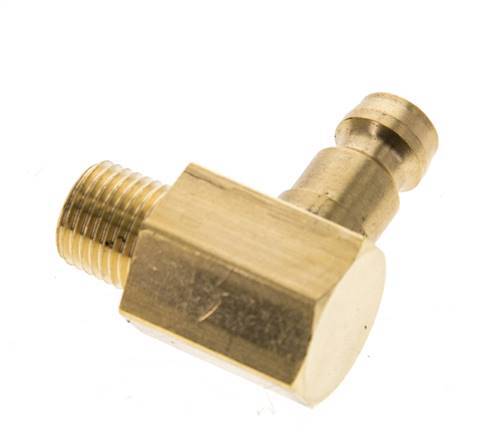

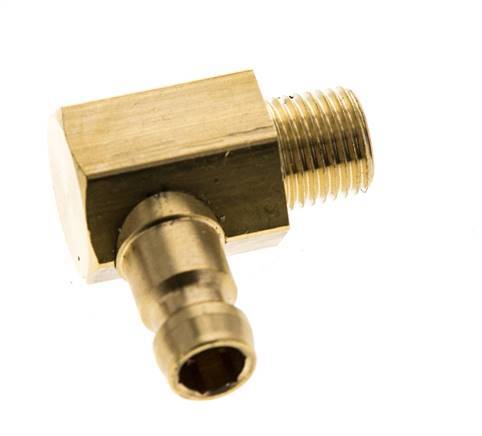

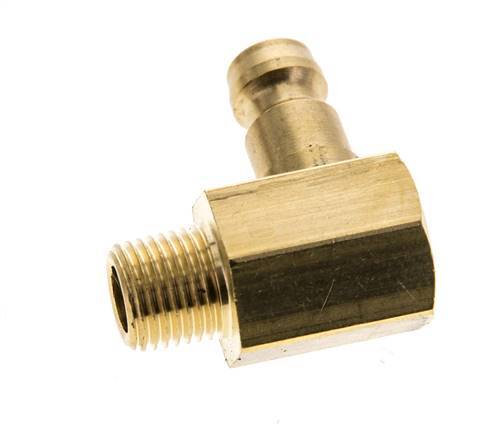

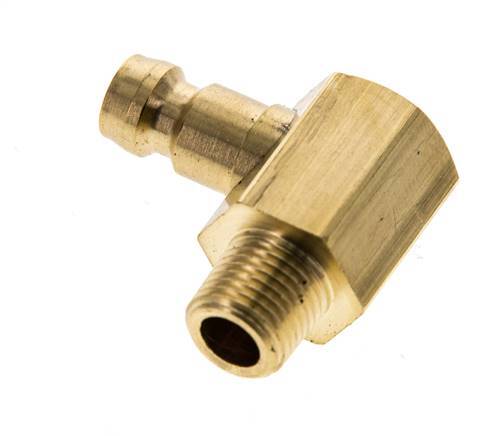

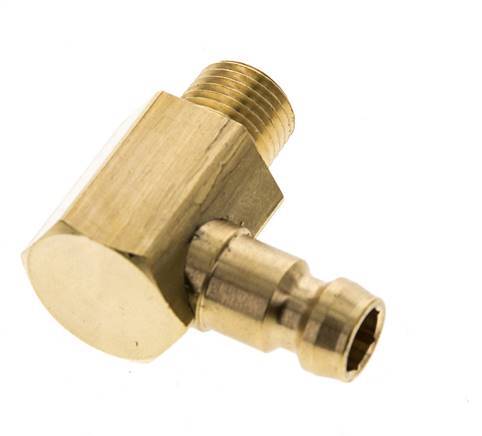

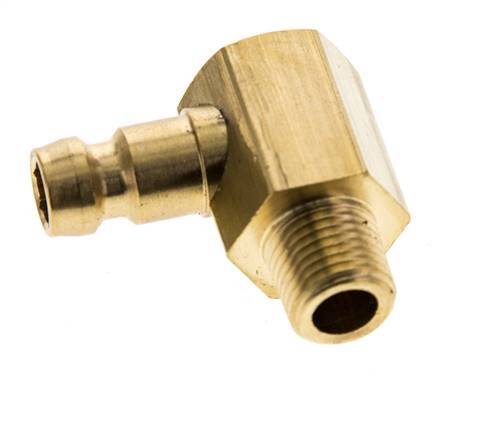

Brass DN 6 mold coupling plug with M10x1 male threads (conical). The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The bend angle is 90 deg.

Contains 2 pieces

View all
£9.10
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Brass DN 6 mold coupling plug with M10x1 male threads (conical). They are typically used for liquid lines to quickly connect and disconnect secure connections.

The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The bend angle is 90 deg.

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

  • Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
M10 x 1
Nominal diameter (mm)
6
Plug diameter
9 mm
Connection type
Outer thread metric (Conical)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
FKM (FPM)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
15
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
160
Min pressure (bar)
0
Compatible models
Hasco Z81/9/10x1/90
Shape
Plug (male)
With dust cap
No
Sleeve material
Brass
