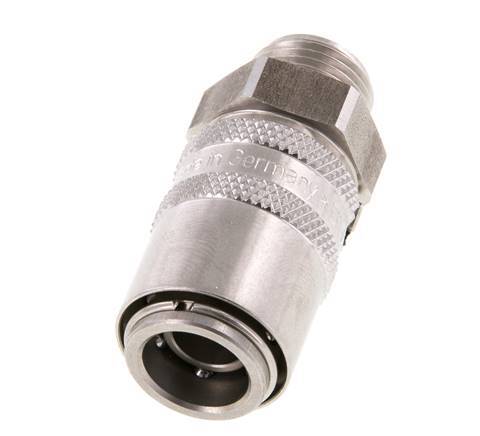

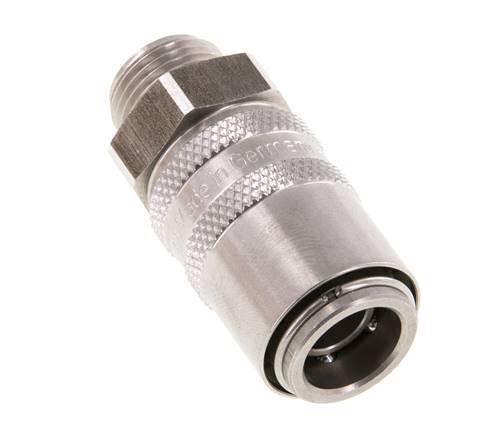

Stainless Steel DN 9 Mold Coupling Socket G 3/8 inch Male Threads
Stainless steel DN 9 mold coupling socket with G 3/8 inch male threads. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM.
- Regular price
- £67.91
Description
Stainless steel DN 9 mold coupling socket with G 3/8 inch male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The G 3/8 inch male threads allow for it to be threaded onto a matching female threaded part. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The housing material is stainless steel 303 (1.4305).
Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).
Note: Design like Z82/13/R3/8
Pros:
- Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
