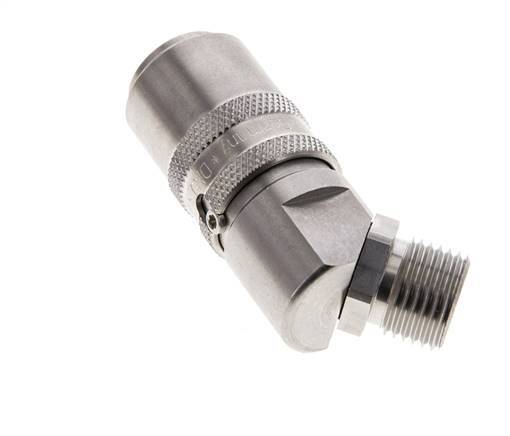

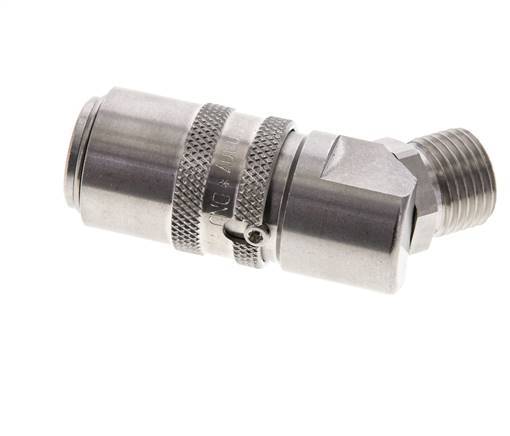

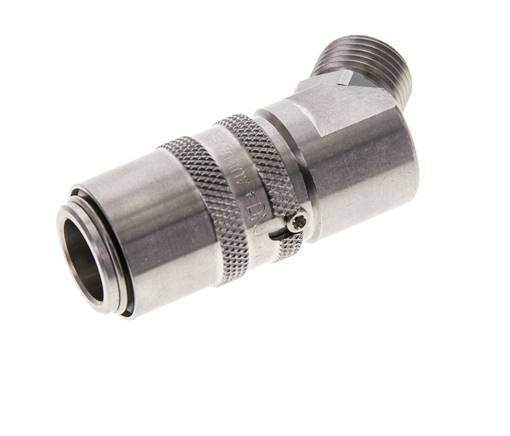

Stainless Steel DN 9 Mold Coupling Socket M16x1.5 Male Threads Double Shut-Off 45-deg
Stainless steel DN 9 mold coupling socket with M16x1.5 male threads. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The bend angle is 45 deg.
- Regular price
- £75.98
Description
Stainless steel DN 9 mold coupling socket with M16x1.5 male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The M16x1.5 mm male threads allow for it to be threaded onto a matching female threaded part. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. This is considered a double-sided shut-off design. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The seal material is FKM. The housing material is stainless steel 303 (1.4305). The bend angle is 45 deg.
Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).
Pros:
- Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C
- The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow
