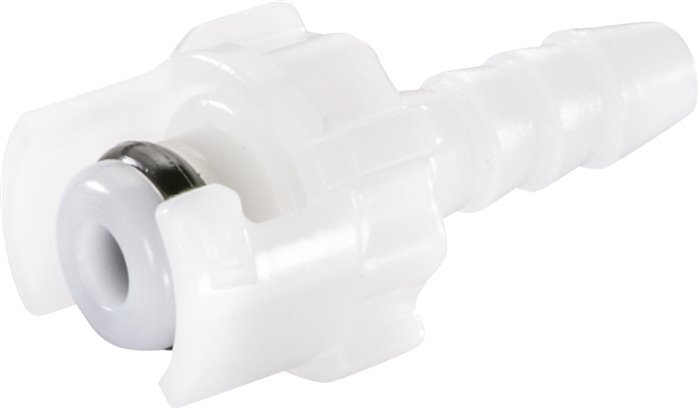

POM DN 1.6 Linktech Coupling Plug 3 mm Hose Pillar 10 Series
Notice: This product is discontinued
Polyoxymethylene (POM) DN 1.6 LinkTech coupling plug with 3 mm hose pillar. The operating pressure range is -0.8 to 7 bar (-12 to 102 psi), making them suitable for vacuums. The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The flow rate is 40 - 200 l/min (for air) and 0.3 - 2.6 l/min (for water).
Notice: This product is discontinued
Description
Polyoxymethylene (POM) DN 1.6 LinkTech coupling plug. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
Easily mount a hose over the 3 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 7 bar (-12 to 102 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 40 - 200 l/min (for air) and 0.3 - 2.6 l/min (for water).
It is connected to another component by screwing a plug into the sleeve until you hear a "click". When coupled, the hose screw connection is able to rotate freely independent from the coupling, preventing any bends and twists in the hose. It is ideally used for Luer connectors in the medical industry.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted
- It can be used for vacuum applications
- It has high resistance to mineral oils
