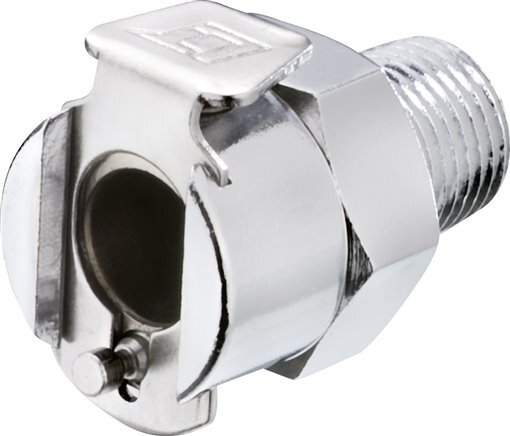

Brass DN 3.2 Linktech Coupling Socket 1/8 inch Male NPT Threads 20 Series

Brass DN 3.2 LinkTech coupling socket with 1/8 inch male NPT threads. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

The 1/8 inch male NPT threads allow for it to be threaded onto a matching female threaded part. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 17.3 bar (-12 to 251 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water). The seal material is NBR. The brass housing has a chromium-plated surface protection.

It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug. Plugs with or without a shut-off valve and of different materials will still work with this coupling.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, gamma radiation, heating to max +121 °c (uncoupled)

Operating range: For applications with increased pressures or mechanical loads (e.g. due to frequent coupling). High resistance to mineral oils.

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• It can be used for vacuum applications
