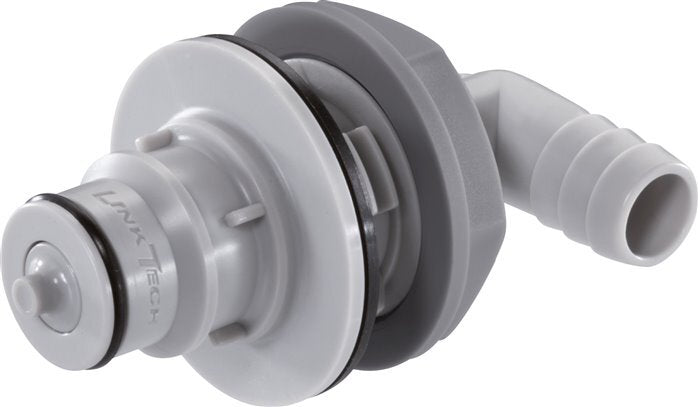

PP DN 9.5 Linktech Coupling Plug 12.7 mm Hose Pillar Bulkhead 90-deg 60 Series

Polypropylene (PP) DN 9.5 LinkTech coupling plug and bulkhead thread. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

Easily mount a hose over the 12.7 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The plug has bulkhead thread to mount it to a panel. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 4.2 bar (-12 to 61 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 1200 - 4100 l/min (for air) and 15 - 57 l/min (for water). The bend angle is 90 deg.

At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 3.4 bar, 50 °C: max 2.7 bar, 60 °C: max 2.2 bar, 70 °C: max 1.7 bar).

It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• These couplings are interchangeable with the CPC-Colder products
• The plug has bulkhead thread to mount it to a panel
• It can be used for vacuum applications
