Reference: F234D
Brand: Tameson

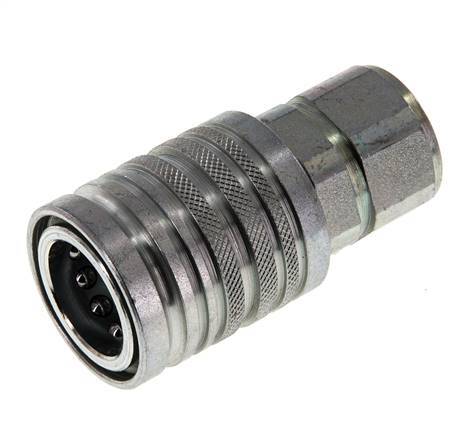

Steel DN 12.5 hydraulic coupling socket with M22x1.5 female threads. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The seal material is NBR. The coupling adheres the ISO 7241-1 A.

View all
£18.90
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 40 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Steel DN 12.5 hydraulic coupling socket with M22x1.5 female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A standard.

Pros:

  • Streamlining design of the flow rate range
  • Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
  • Adheres to ISO 7241-1 A worldwide standard
  • Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications
