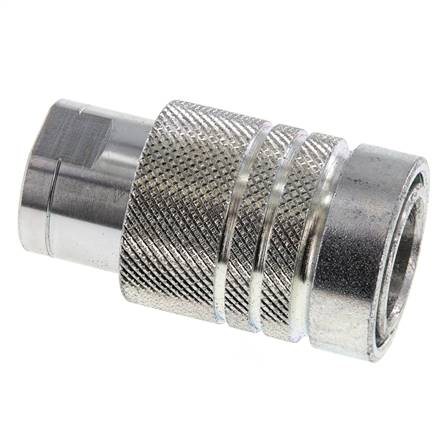

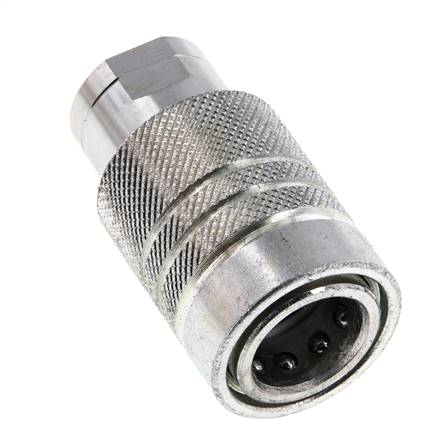

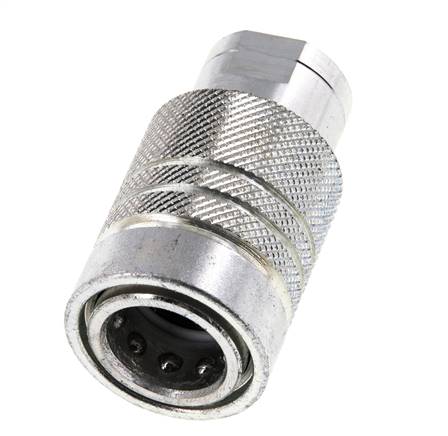

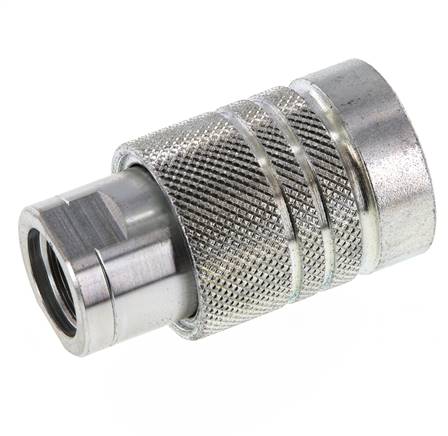

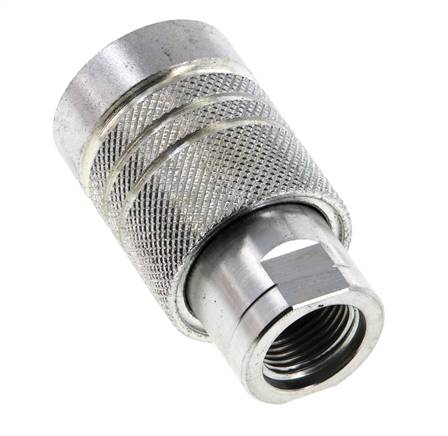

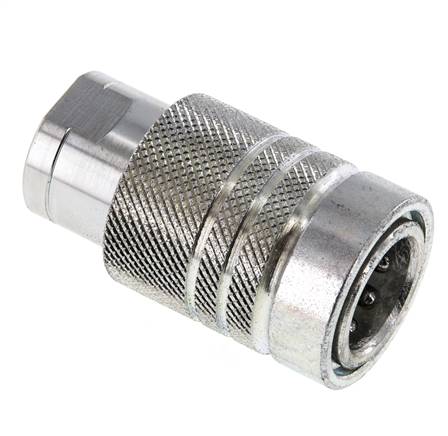

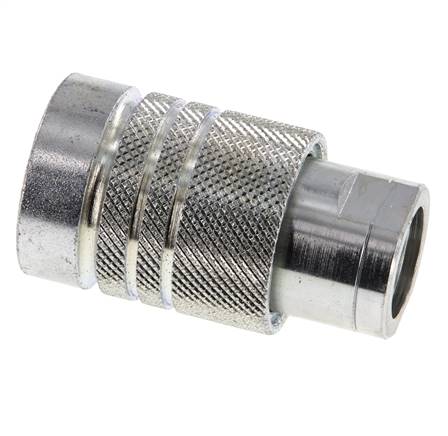

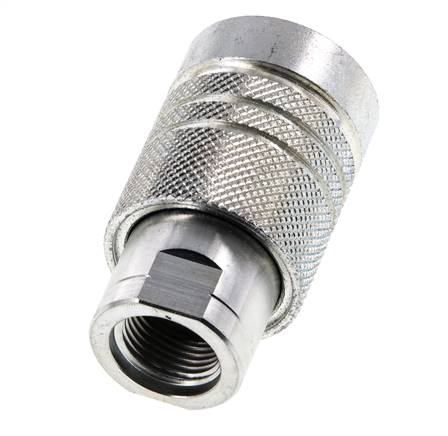

Steel DN 10 Hydraulic Coupling Socket 8 mm L Compression Ring ISO 7241-1 A/8434-1 D 16mm
Notice: This product is discontinued
Steel DN 10 hydraulic coupling socket with 8 mm L (light) compression ring. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The seal material is NBR. The coupling adheres the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353).
Notice: This product is discontinued
Description
Steel DN 10 hydraulic coupling socket with 8 mm L (light) compression ring. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The 8 mm L (light) compression ring connection allows it to securely connect pipes together without soldering. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The seal material is NBR. The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353) standard.
Pros:
- Streamlining design of the flow rate range
- Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
- Adheres to ISO 7241-1 A worldwide standard and DIN EN ISO 8434-1 (DIN 2353)
- Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
