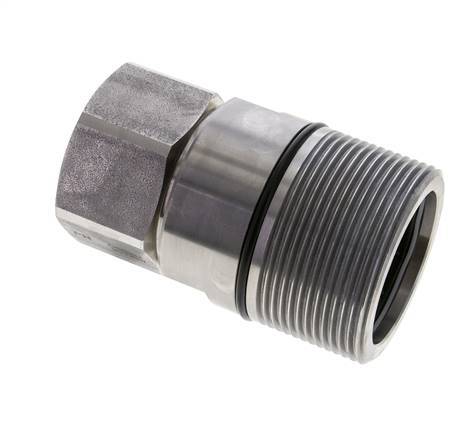

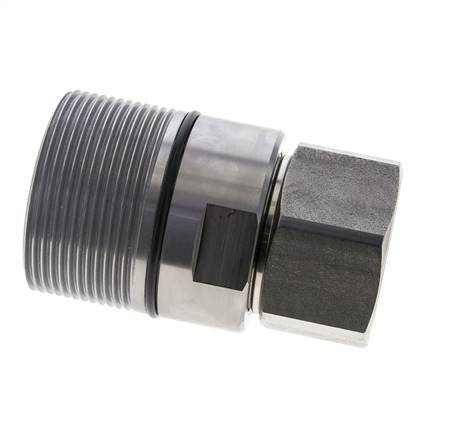

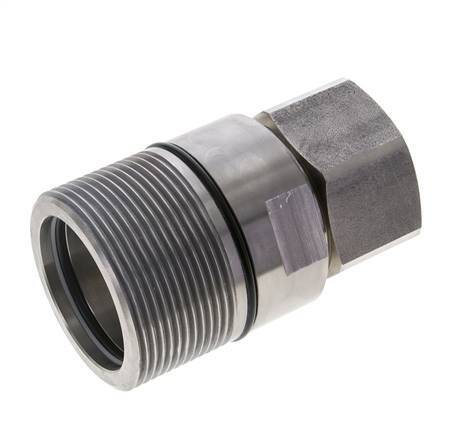

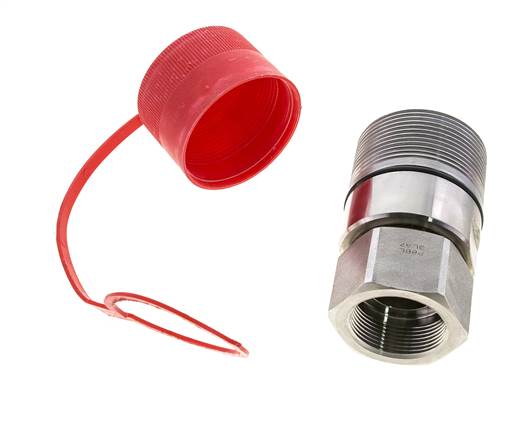

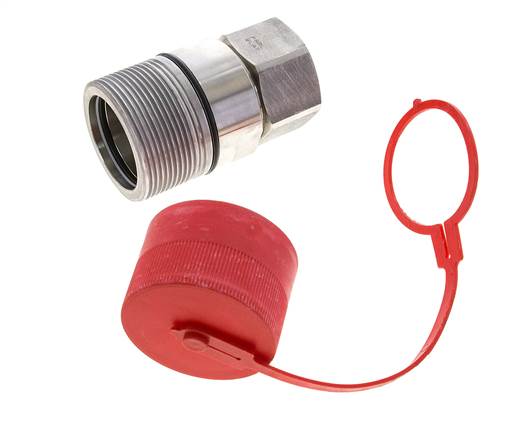

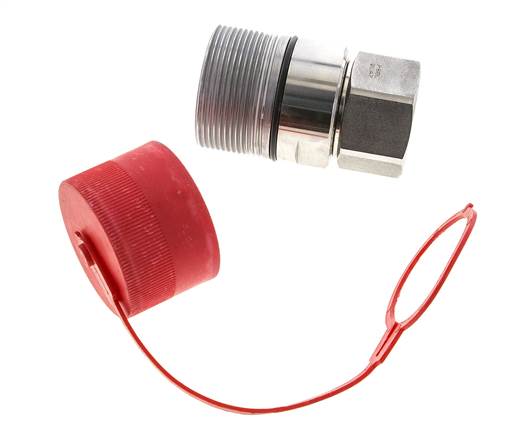

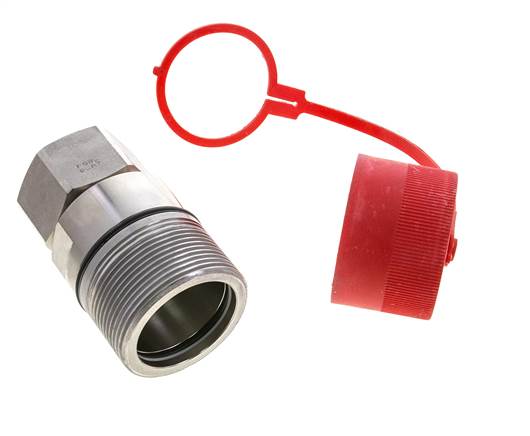

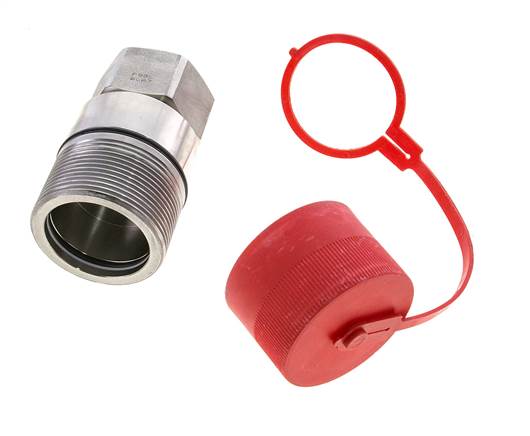

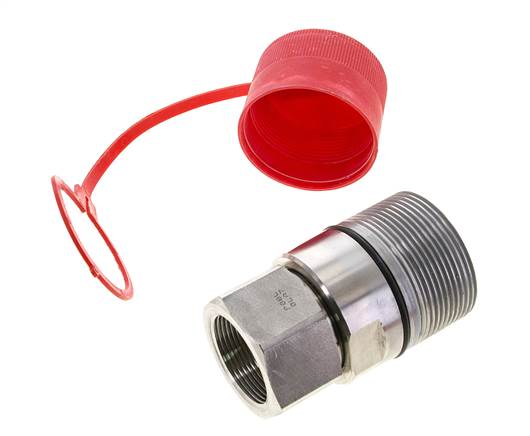

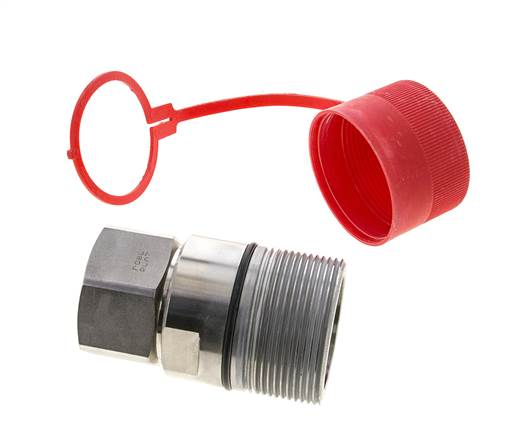

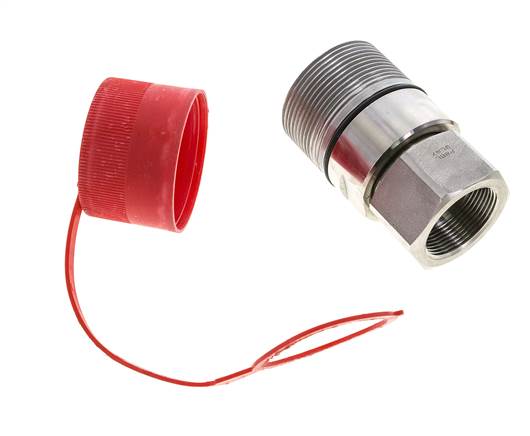

Stainless Steel DN 31.5 Hydraulic Coupling Socket G 1 1/2 inch Female Threads D M70 x 3
Stainless steel DN 31.5 hydraulic coupling socket with G 1 1/2 inch female threads. The maximum operating pressure is 300 bar (4350 psi). The coupling is suitable for temperatures between -20 to 150 °C (-4 to 302 °F). The seal material is FKM.
- Regular price
- £1347.40
Description
Stainless steel DN 31.5 hydraulic coupling socket with G 1 1/2 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The G 1 1/2 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 300 bar (4350 psi). The coupling is suitable for temperatures between -20 to 150 °C (-4 to 302 °F). The seal material is FKM. The housing material is stainless steel 306l (1.4404).
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with a hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max 50 bar under pressure.
Pros:
- Secure against pressure thrusts and pressure vibrations
- Streamlining design of the flow rate range
- They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
